10 Color Digital Dual Transmission Pressure & Temperature Gauge

GlowShift 10 Color Digital Series Dual Transmission Pressure & Transmission Temperature Combo Gauges monitor two key readings simultaneously. View Transmission Pressure readouts from 0 to 400 PSI and Transmission Temperature readouts from 68° to 302° Fahrenheit. This trans pressure and temp combo gauge is electronically driven and features customizable displays with bold, easy to read, quick glance digital numerical readouts. Each combination gauge kit includes Sensors, Wiring Kits and more for installation.

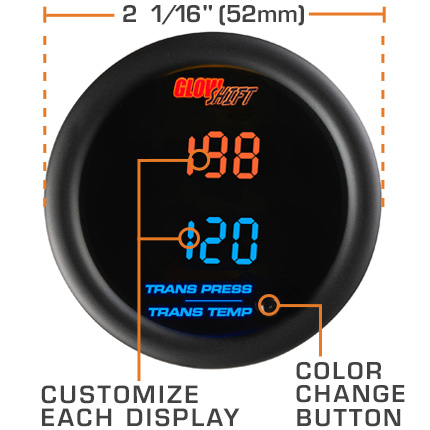

The 10 Color Dual Digital Series features a flat black gauge face and low profile tinted lens with bright LED digital numerical readouts. Each gauge has an ultra-thin design with a depth of 1-1/16” (27mm) and display that measures 3/8” x 5/8” (9.5mm x 15.92mm). Experience 2 customizable displays with bold, easy to read, quick glance digital readouts. Users have the ability to set each of the displays with any combination of the featured 10 colors to quickly identify each reading. At startup, Self-Calibration Mode ensures the gauge is performing optimally. For easier viewing at night, connect the orange wire to the headlight switch source and the gauge will dim 50%.

Features 10 Color Dual Digital Series Gauges are built to enhance the interior of your car or truck. On or off, the gauge will look incredible courtesy of the black gauge dial and tinted lens which are at the heart of this Series.

10 Color Options The 10 available color options include Blue, Green, Red, Yellow, White, Teal, Purple, Pink, Amber and Orange. 10 Color Cycle Mode and 10 Color Fade Mode both scroll through each of the available colors.

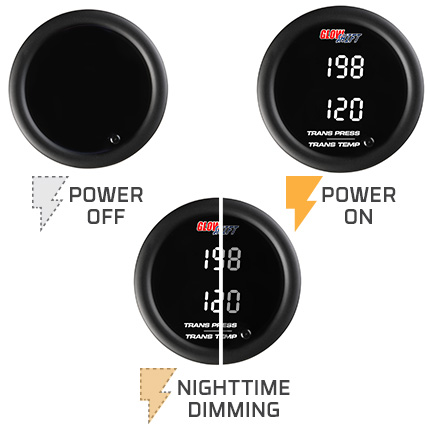

Backlighting LED backlighting results in a bright display that delivers clear and vivid readouts. Connect the orange wire from the power harness to the factory headlight switch to dim the gauge 50% when the headlights are on.

Sensors This dual digital trans pressure and temperature gauge comes with a 1/8-27 NPT Electronic Transmission Pressure Sensor and 1/8-27 NPT Electronic Temperature Sensor. Detailed instructions walk you through the installation process for both sensors step by step.

Wiring A 2’ Power Harness and (2) 9’ Sensor Harnesses are provided that utilize Plug and Play Connectivity to easily snap into the modular connectors on the back of the gauge. The extended lengths give you added flexibility during installation.

Mounting Bracket A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable.

Digital Transmission Pressure & Temperature Combo Gauge

Gain access to incredibly accurate readings on a responsive digital LED display with this trans pressure and temperature gauge kit. This set of readings is key to monitoring critical pressure and temperature levels in any application. GlowShift combination trans pressure and temp gauges will not only help you monitor changing transmission pressure and trans temp levels, but will also enhance the inside of your car or truck. Set each reading to its own color on the display so you can easily differentiate which reading is which.

Sensor Thread Note

This gauge has a 1/8-27 NPT thread size on the sensors and your vehicle may not come equipped with the same size. Additional threading adapters may be required for installation. If you are unsure if your application will require additional threading adapters, please contact a GlowShift Technical Support Specialist.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.
