7 Color Series Dual Gauge Package for 2010-2018 Dodge Ram Cummins

GlowShift's 7 Color Series Full Size Dual Gauge Package was made for the 2010-2018 Dodge Ram 2500/3500 6.7L Cummins. Experience complete customization when you select from over 20 gauges for this 2-gauge set which comes with all required sensors. This package also includes a taupe Dodge Ram full size dual pillar pod. With GlowShift’s 7 Color Gauge Series, you’ll experience the option of 7 different colors featured on an ultra-bright LED analog gauge display.

Gauge Series Details

A wide variety of unique color and style settings are available for complete customization of your ultra high-performance 2-1/16” (52mm) gauges. Choose from a black or white gauge face, and utilize 7 ultra-bright solid color display options that will allow you to match the lighting display of your Cummins factory dashboard. These gauges also include microprocessor controlled stepper motor technology, selectable 7 color LED through dial lighting, a magnified tinted or clear lens depending on your selection, and an illuminated red needle that sweeps 270°. GlowShift also includes all sensors, wiring, mounting hardware and a one-year limited warranty with each purchase.

7 Color Gauge Series Choose from Black, White or Tinted Series Black or White Gauge Face Clear or Tinted Magnified Lens Ultra-Bright Analog LED Display Stepper Motor Technology

Match Your Factory Dash Lights 7 Color LED Through Dial Lighting 7 Solid Color Settings Blue, Red, Green, Teal, Purple, White & Yellow Two Color Cycle Modes Remembers Last Color Setting

Nighttime Dimming Dimmer Wire Dims Gauge 30% Reduce Brightness When Driving at Night Continue to Easily View your Readings Works When your Headlights are Turned On Activate with a Simple Connection

Diesel Tech Picks

Our Diesel Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your Dodge Ram Cummins. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with all of the information you need to get the best performance out of your truck.

60 PSI Boost Reads Boost from 0 - 60 PSI 9' of Nylon Hose 1/8-27 NPT Brass Compression Fittings Mechanically Driven

1500° F Pyrometer EGT Reads Exhaust Temperature from 0 - 1500° Fahrenheit 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable 6' Sensor & 2' Power Wire Harnesses Waterproof EGT Probe to Sensor Harness Connector

Transmission Temperature Reads Transmission Temperature from 80 - 260° Fahrenheit 1/8-27 NPT Electronic Temperature Sensor 2' Sensor & Power Wire Harnesses Recommended For Vehicles with Automatic Transmission

30 PSI Fuel Pressure Reads Fuel Pressure from 0 - 30 PSI 1/8-27 NPT Electronic Fuel Pressure Sensor 9' Sensor & 2' Power Wire Harnesses

Pillar Pod Details

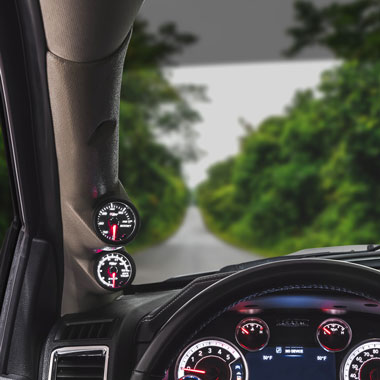

The included full size, factory matched dual pillar pod is made specifically for the 2010-2018 Dodge Ram 2500/3500 6.7L Cummins. This taupe pillar gauge pod holds (2) 2-1/16” (52mm) gauges and is crafted from high quality ABS plastic, allowing it to withstand cracking, fading and warping. Fits: 10, 11, 12, 13, 14, 15, 16, 17, 18 Dodge Ram 2500 & 3500.

Holds (2) 2-1/16” (52mm) Gauges Taupe Dual Pillar Pod Made from ABS Plastic Withstands Cracking, Fading and Warping

Replacement of Factory A-Pillar Full Length Gauge Pod Match to Your Factory Interior Professional Fit and Finish

Bolt Included for Pod Installation Installs Through Pre-Drilled Hole on Pod Easily Mounts to Factory Location No Drilling Required

Fitment Details

1/8-27 NPT Drill & Tap Set Used for Installing EGT Probe, Boost Fittings or Boost Sensor Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT Includes Size R Drill Bit & 1/8 NPT Tap	Boost Bolt Adapter for 6.7L Cummins Quick & Easy Install of Boost Hose or Sensor into the Intake Manifold Replaces the Manifold Horn Bolt No Drilling & Tapping Required Female 1/8-27 NPT Thread for Fittings/Sensor Fits 2006.5-2018 6.7L Cummins	Snubber Valve Regulates, Normalizes & Eliminates Fuel Pressure Spikes During Startup Protects Pressure Sensor from Spikes/Water Hammer Effect Installs Between Fuel Filter Housing & Sensor High-Quality Brass Design – Built to Last Male & Female 1/8-27 NPT Threads	Big Line Kit for 2010-2018 Dodge Ram 6.7L Cummins Allows Installation of Fuel Pressure Sensor into the Injection Pump Inlet Replaces the Restrictive Factory Hard Line with 3/8” Rubber Hose Between Fuel Filter Housing & Injection Pump Includes 3/8” T-Fitting, Injection Pump Connector, Fuel Filter Housing Quick-Connector, Push-On Hose Connectors & Hose Clamps Female 1/8-27 NPT Thread Adapter on T-Fitting for Sensor Fits 2010-2018 Dodge Ram 6.7L Cummins
1/2” Transmission Cooler Line T-Fitting Adapter Allows Installation of Temperature Sensor to the 1/2" Transmission Cooler Line Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal Female 1/8-27 NPT Thread on T-Fitting for Sensor Required When Installing Sensor to 2007.5+ Dodge Ram Cummins Required When Installing Sensor to 68RE & 68RFE Transmissions	Transmission Cooler Thermal Bypass Adapter Allows for Easy Installation of Temp Sensor to the Transmission Cooler Feed Line Avoid Cutting Into Factory Lines - No Permanent Modifications Required Includes (1) Adapter Unit, (2) 1/8-27 NPT Ports, (2) Quick-Disconnect Fittings & (1) 1/8-27 NPT Port Plug Fits 2013+ Dodge Ram 68RFE Transmissions	Oil Filter Sandwich Adapter Quick & Easy Solution to Install Multiple Sensors to the Truck’s Oil Filter Used for Oil Pressure & Oil Temperature Sensors Features a 1”-16 Thread, (4) 1/8-27 NPT Thread Ports & Port Plugs Includes O-Ring for Leak-Free Seal Fits 1989-2018 Dodge Ram 5.9L 6.7L Cummins	Rail Pressure Pigtail Harness Quick & Easy Installation Without Having to Splice or Cut into Factory Wires Connects Directly to Common Rail Pressure Sensor Plug & Play Fits 2003-2012 5.9L & 6.7L Cummins
Expandable Circuit Quick & Easy Way to Power Gauges Directly from the Fuse Panel Used for Constant & Switched 12 Volt Power for Gauges Includes Fuse for Circuit Protection Mini Expandable Circuit - Compatible with 2010-2012 Dodge Ram Micro2 Expandable Circuit - Compatible with 2013-2018 Dodge Ram	2 Gauge Wiring Kit - Power Wires Only Conveniently Connect all Gauge Power Wires to 1 Easy-to-Use Wire Harness Color Matched Wires Make it Easy When Routing & Connecting Wires to their Source Extends the Length of Power Wires Included with Gauges Optional for Installation 6’ of Power/Ground Wires – Red, Yellow, Orange & Black Wires Compatible with 7 Color Gauge Series 20 Gauge Automotive Grade Wiring	2 Gauge Wiring Kit - Power & Sensor Wires Conveniently Connect all Gauge Power & Sensor Wires to 1 Easy-to-Use Wire Harness Color Matched Wires Make it Easy When Routing & Connecting Wires to their Source Extends the Length of Power/Sensor Wires Included with Gauges Optional for Installation 6’ of Power/Ground Wires – Red, Yellow, Orange & Black Wires 8’ of Sensor Wires – Blue, Brown & Green Wires Compatible with 7 Color Gauge Series 20 Gauge Automotive Grade Wiring

Installation Guides

This 7 Color Series Full Size Dual Gauge Package comes with an installation guide which is available online and in print and was made specifically for the 2010-2018 Dodge Ram 24v 6.7L Cummins. An installation video is also available which provides a complete step-by-step tutorial along with useful tips on how to install this gauge package.

Watch the Installation Video

Download and Print the PDF
