7 Color Series Triple Dashboard Gauge Package for 1999-2007 Ford Super Duty Power Stroke

GlowShift's 7 Color Series Triple Dashboard Gauge Package was made for the 1999-2007 Ford Super Duty Power Stroke F-250 and F-350 with either a 6.0L or 7.3L Power Stroke engine. Experience complete customization when you select from over 20 gauges for this 3-gauge set which comes with all required sensors. This package also includes a black triple dashboard gauge pod that sits level on the left side of the dashboard above the gauge cluster. With GlowShift’s 7 Color Gauge Series, you’ll experience the option of 7 different colors featured on an ultra-bright LED analog gauge display.

Gauge Series Details

A wide variety of unique color and style settings are available for complete customization of your ultra high-performance 2-1/16” (52mm) gauges. Choose from a black or white gauge face, and utilize 7 ultra-bright solid color display options that will allow you to match the lighting display of your Super Duty’s factory dashboard. These gauges also include microprocessor controlled stepper motor technology, selectable 7 color LED through dial lighting, a magnified tinted or clear lens depending on your selection, and an illuminated red needle that sweeps 270°. GlowShift also includes all sensors, wiring, mounting hardware and a one-year limited warranty with each purchase.

7 Color Gauge Series Choose from Black, White or Tinted Series Black or White Gauge Face Clear or Tinted Magnified Lens Ultra-Bright Analog LED Display Stepper Motor Technology

Match Your Factory Dash Lights 7 Color LED Through Dial Lighting 7 Solid Color Settings Blue, Red, Green, Teal, Purple, White & Yellow Two Color Cycle Modes Remembers Last Color Setting

Nighttime Dimming Dimmer Wire Dims Gauge 30% Reduce Brightness When Driving at Night Continue to Easily View your Readings Works When your Headlights are Turned On Activate with a Simple Connection

Diesel Tech Picks

Our Diesel Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your Ford Super Duty. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with all of the information you need to get the best performance out of your truck.

60 PSI Boost Reads Boost from 0 - 60 PSI 9' of Nylon Hose 1/8-27 NPT Brass Compression Fittings Mechanically Driven

1500° F Pyrometer EGT Reads Exhaust Temperature from 0 - 1500° Fahrenheit 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable 6' Sensor & 2' Power Wire Harnesses Waterproof EGT Probe to Sensor Harness Connector

Transmission Temperature Reads Transmission Temperature from 80 - 260° Fahrenheit 1/8-27 NPT Electronic Temperature Sensor 2' Sensor & Power Wire Harnesses Recommended For Vehicles with Automatic Transmission

100 PSI Fuel Pressure Reads Fuel Pressure from 0 - 100 PSI 1/8-27 NPT Electronic Fuel Pressure Sensor 9' Sensor & 2' Power Wire Harnesses

Pod Details

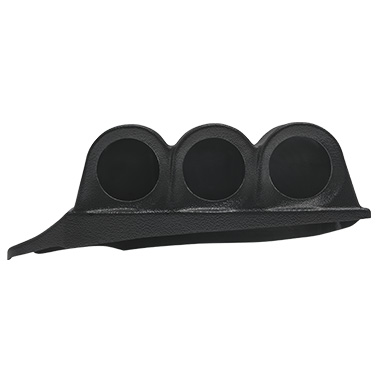

The included black triple gauge dashboard pod is made with a custom molded mounting plate to fit the dash of the 1999-2007 Ford Super Duty Power Stroke F-250 and F-350 with either a 6.0L or 7.3L Power Stroke engine. By installing a dash pod you’ll be able to continue using the factory grab handle while also taking quick-glance readings from a convenient position along your Super Duty’s dashboard. This dash pod holds (3) 2-1/16” (52mm) gauges and is crafted from high quality ABS plastic, allowing it to withstand cracking, fading and warping. It can also be painted using ABS plastic paint to match your factory interior for a fully customized fit and finish. Please note that this dash pod cannot be used with a GlowShift quad pillar gauge pod. Fits: 99, 00, 01, 02, 03, 04, 05, 06, 07 Ford Super Duty, F-250, F-350

Holds (3) 2-1/16” (52mm) Gauges Black Dashboard Pod Made from ABS Plastic Withstands Cracking, Fading and Warping

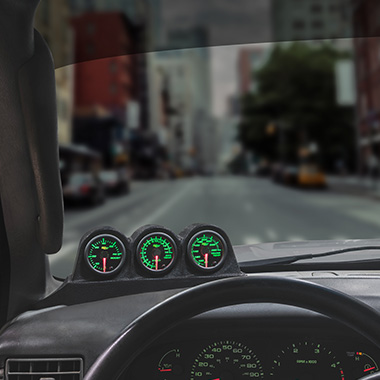

Keep the Factory Grab Handle Mount to Your Super Duty’s Dash Position Above the Gauge Cluster Paintable Using ABS Plastic Paint

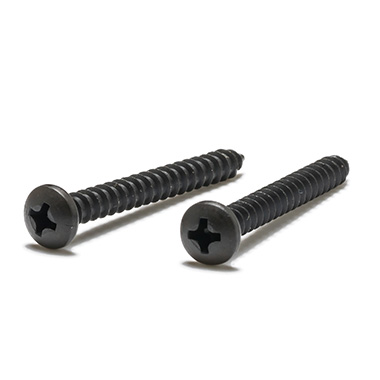

Custom Molded Mounting Plate Easy Installation Drill to Install Includes Mounting Hardware

Fitment Details

1/8-27 NPT Drill & Tap Set Used for Installing EGT Probe, Boost Fittings or Boost Sensor Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT Includes Size R Drill Bit & 1/8 NPT Tap	MAP Line T-Fitting Adapter Quick & Easy Install of Boost Hose or Sensor into the 3/16” MAP Line Cut the Line, Insert the T-Fitting & Secure with Included Clamps Avoid Drilling & Tapping the Intake Manifold Female 1/8-27 NPT Thread for Fittings/Sensor Fits 1999-2002 Ford 7.3L Power Stroke Fits 2003-2007 Ford 6.0L Power Stroke	Air Intake Heater Boost Plug Adapter Quick & Easy Install of Boost Hose or Sensor to the Air Intake Remove the Restrictive Heater Plug & Thread Adapter in its Place No Drilling or Tapping Required Female 1/8-27 NPT Thread for Fittings/Sensor Fits 1999.5-2002 Ford Super Duty 7.3L Power Stroke Fits 2001-2004 GM 6.6L Duramax	Fuel Pressure Adapter for Ford 7.3L Power Stroke Quick & Easy Install of Fuel Pressure Sensor to Fuel Filter Housing No Need to Cut Factory Fuel Lines Replaces Pressure Port Fitting Features O-Ring for Leak-Free Seal Female 1/8-27 NPT Thread for Sensor Fits 1999-2002 Ford 7.3L Power Stroke
Fuel Pressure Adapter for Ford 6.0L Power Stroke Quick & Easy Install of Fuel Pressure Sensor to Fuel Filter Housing No Need to Cut Factory Fuel Lines Replaces Pressure Port Fitting Features O-Ring for Leak-Free Seal Female 1/8-27 NPT Thread for Sensor Fits 2003-2007 Ford 6.0L Power Stroke	1/2” Transmission Cooler Line T-Fitting Adapter Allows Installation of Temperature Sensor to the 1/2" Transmission Cooler Line Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal Female 1/8-27 NPT Thread on T-Fitting for Sensor	3/8” Transmission Cooler Line T-Fitting Adapter Allows Installation of Temperature Sensor to the 3/8” Transmission Cooler Line Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal Female 1/8-27 NPT Thread on T-Fitting for Sensor	HPOP Gauge Wiring Pigtail Harness Quick & Easy Installation Without Having to Splice or Cut into Factory Wires Connects Directly to Injector Control Pressure (ICP) Sensor Plug & Play Fits 1999-2002 7.3L Power Stroke Fits 2003-2007 6.0L Power Stroke
Water Temp Adapter for Ford 6.0L Power Stroke Quick & Easy Install of Water Temp Sensor to the Engine Block Remove the Block Off Plug & Thread in the Adapter No Major Modifications Required Female 1/8-27 NPT Thread for Temp Sensor Fits 2003-2007 Ford 6.0L Power Stroke	Oil Filter Sandwich Adapter Quick & Easy Solution to Install Multiple Sensors to the Truck’s Oil Filter Used for Oil Pressure & Oil Temperature Sensors Features a 1-1/2"-16 Thread, (4) 1/8-27 NPT Thread Ports & Port Plugs Includes O-Ring for Leak-Free Seal Fits 1994-2003 Ford Super Duty 7.3L Power Stroke	Expandable Circuit Quick & Easy Way to Power Gauges Directly from the Fuse Panel Used for Constant & Switched 12 Volt Power for Gauges Includes 4 Amp Fuse for Circuit Protection	3 Gauge Wiring Kit - Power Wires Only Conveniently Connect all Gauge Power Wires to 1 Easy-to-Use Wire Harness Color Matched Wires Make it Easy When Routing & Connecting Wires to their Source Extends the Length of Power Wires Included with Gauges Optional for Installation 6’ of Power/Ground Wires – Red, Yellow, Orange & Black Wires Compatible with 7 Color Gauge Series 20 Gauge Automotive Grade Wiring
3 Gauge Wiring Kit - Power & Sensor Wires Conveniently Connect all Gauge Power & Sensor Wires to 1 Easy-to-Use Wire Harness Color Matched Wires Make it Easy When Routing & Connecting Wires to their Source Extends the Length of Power/Sensor Wires Included with Gauges Optional for Installation 3’ of Power/Ground Wires – Red, Yellow, Orange & Black Wires 8’ of Sensor Wires – Blue, Brown & Green Wires Compatible with 7 Color Gauge Series 20 Gauge Automotive Grade Wiring

Installation Guides

This 7 Color Series Dashboard Gauge Package comes with an installation guide which is available online and in print and was made specifically for the 1999-2007 Ford Super Duty Power Stroke F-250 and F-350 with either a 6.0L or 7.3L Power Stroke engine. You can also visit our set of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift gauges and pods.

Watch the 7.3L Installation Video

Watch the 6.0L Installation Video

Download and Print the PDF
