7 Color Series Triple Dashboard Gauge Package for 2003-2005 Dodge Ram Cummins

GlowShift's 7 Color Series Triple Gauge Package was made for the 2003-2005 Dodge Ram 2500/3500 5.9L Cummins. Experience complete customization when you select from over 20 gauges for this 3-gauge set which comes with all required sensors. This package also includes a black Dodge Ram triple dashboard panel pod that is made to fit the storage tray location below the radio and HVAC controls. With GlowShift’s 7 Color Gauge Series, you’ll experience the option of 7 different colors featured on an ultra-bright LED analog gauge display.

Gauge Series Details

A wide variety of unique color and style settings are available for complete customization of your ultra high-performance 2-1/16” (52mm) gauges. Choose from a black or white gauge face, and utilize 7 ultra-bright solid color display options that will allow you to match the lighting display of your Cummins factory dashboard. These gauges also include microprocessor controlled stepper motor technology, selectable 7 color LED through dial lighting, a magnified tinted or clear lens depending on your selection, and an illuminated red needle that sweeps 270°. GlowShift also includes all sensors, wiring, mounting hardware and a one-year limited warranty with each purchase.

7 Color Gauge Series Choose from Black, White or Tinted Series Black or White Gauge Face Clear or Tinted Magnified Lens Ultra-Bright Analog LED Display Stepper Motor Technology

Match Your Factory Dash Lights 7 Color LED Through Dial Lighting 7 Solid Color Settings Blue, Red, Green, Teal, Purple, White & Yellow Two Color Cycle Modes Remembers Last Color Setting

Nighttime Dimming Dimmer Wire Dims Gauge 30% Reduce Brightness When Driving at Night Continue to Easily View your Readings Works When your Headlights are Turned On Activate with a Simple Connection

Diesel Tech Picks

Our Diesel Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your Dodge Ram Cummins. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with all of the information you need to get the best performance out of your truck.

60 PSI Boost Reads Boost from 0 - 60 PSI 9' of Nylon Hose 1/8-27 NPT Brass Compression Fittings Mechanically Driven

1500° F Pyrometer EGT Reads Exhaust Temperature from 0 - 1500° Fahrenheit 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable 6' Sensor & 2' Power Wire Harnesses Waterproof EGT Probe to Sensor Harness Connector

Transmission Temperature Reads Transmission Temperature from 80 - 260° Fahrenheit 1/8-27 NPT Electronic Temperature Sensor 2' Sensor & Power Wire Harnesses Recommended For Vehicles with Automatic Transmission

30 PSI Fuel Pressure Reads Fuel Pressure from 0 - 30 PSI 1/8-27 NPT Electronic Fuel Pressure Sensor 9' Sensor & 2' Power Wire Harnesses

Pod Details

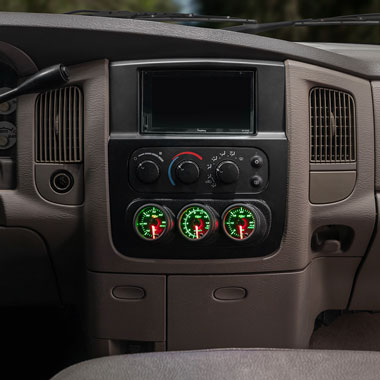

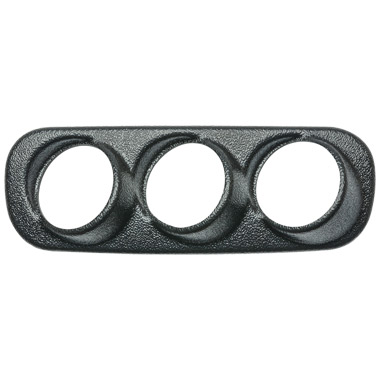

The included triple dashboard panel pod is made specifically for the 2003-2005 Dodge Ram 2500/3500 5.9L Cummins. This dashboard panel gauge pod mounts (3) 2-1/16” (52mm) gauges to the storage tray area, below the radio and HVAC controls, while angling the gauges towards the driver for easy viewing. These Dodge Ram dashboard pods are manufactured from premium quality ABS plastic and can also be painted using ABS plastic paint for a custom fit and finish. Custom aluminum brackets are included to secure the gauges to the pod, and the pod to your Ram truck’s dashboard. Fits: 03, 04, 05 Dodge Ram 2500 & 3500.

Holds (3) 2-1/16” (52mm) Gauges Black Dashboard Panel Pod Made from ABS Plastic Withstands Cracking, Fading and Warping

Mounts Gauges to Storage Tray Area Angles Gauges Towards the Driver Easy Viewing of Gauge Readings Professional Fit and Finish

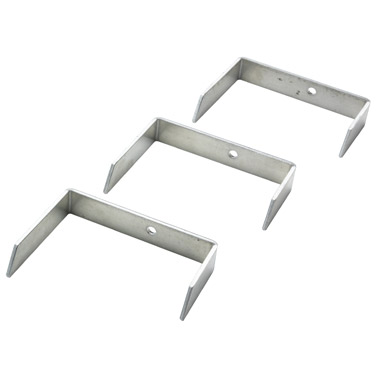

Mounting Brackets for Installation Secures Gauges to the Pod Easily Mounts to Storage Tray No Drilling Required

Fitment Details

1/8-27 NPT Drill & Tap Set Used for Installing EGT Probe, Boost Fittings or Boost Sensor Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT Includes Size R Drill Bit & 1/8 NPT Tap	Boost Bolt Adapter for 5.9L Cummins Quick & Easy Install of Boost Hose or Sensor into the Intake Manifold Replaces the Manifold Horn Bolt No Drilling & Tapping Required Female 1/8-27 NPT Thread for Fittings/Sensor Fits 1998.5-2006 5.9L Cummins	Banjo Bolt Adapter for 24 Valve Cummins Easy Install of Fuel Pressure Sensor to Fuel Filter Housing Replaces the Factory Banjo Bolt Includes 2 Crush Washers for Secure Fit Female 1/8-27 NPT Thread for Sensor Fits 1998-2002 Dodge Ram 24 Valve Cummins	Snubber Valve Regulates, Normalizes & Eliminates Fuel Pressure Spikes During Startup Protects Pressure Sensor from Spikes/Water Hammer Effect Installs Between Fuel Filter Housing & Sensor High-Quality Brass Design – Built to Last Male & Female 1/8-27 NPT Threads
Banjo Bolt + Snubber Valve Combo for 24 Valve Cummins Easy Install of Fuel Pressure Sensor to Fuel Filter Housing All-in-One Design – Less Chance of Leaks Between Fittings Snubber Valve Protects Pressure Sensor from Spikes/Water Hammer Effect Replaces the Factory Banjo Bolt Includes 2 Crush Washers for Secure Fit Female 1/8-27 NPT Thread for Sensor Fits 1998.5-2002 Dodge Ram 24 Valve Cummins	Big Line Kit for 1998.5-2007 Dodge Ram 5.9L Cummins Allows Installation of Fuel Pressure Sensor into Factory Fuel System Replaces the Restrictive Factory Line with 3/8” Rubber Hose Between Fuel Filter Housing & Injection Pump Includes 3/8” T-Fitting, 90° Fittings, AN Adapters & Hose Clamps Female 1/8-27 NPT Thread Adapter on T-Fitting for Sensor Fits 1998.5-2007 Dodge Ram 5.9L Cummins	Test Port Adapter for 47RE & 48RE Quick & Easy Install of Temperature Sensor to Transmission Test Port Threads onto Temperature Sensor for Protection from Internal Transmission Parts No Modifications to Transmission Necessary Female 1/8-27 NPT Thread for Sensor Fits 1994-2007.5 Dodge Ram Cummins	Oil Filter Sandwich Adapter Quick & Easy Solution to Install Multiple Sensors to the Truck’s Oil Filter Used for Oil Pressure & Oil Temperature Sensors Features a 1”-16 Thread, (4) 1/8-27 NPT Thread Ports & Port Plugs Includes O-Ring for Leak-Free Seal Fits 1989-2018 Dodge Ram 5.9L 6.7L Cummins
18ft Pressure Sensor Harness Extends the Length of 9’ Harness Included with Gauge to 18’ Commonly Used on Trucks with Aftermarket Lift Pump Installed Plug & Play	Rail Pressure Pigtail Harness Quick & Easy Installation Without Having to Splice or Cut into Factory Wires Connects Directly to Common Rail Pressure Sensor Plug & Play Fits 2003-2012 5.9L & 6.7L Cummins	Expandable Circuit Quick & Easy Way to Power Gauges Directly from the Fuse Panel Used for Constant & Switched 12 Volt Power for Gauges Includes 4 Amp Fuse for Circuit Protection	3 Gauge Wiring Kit - Power Wires Only Conveniently Connect all Gauge Power Wires to 1 Easy-to-Use Wire Harness Color Matched Wires Make it Easy When Routing & Connecting Wires to their Source Extends the Length of Power Wires Included with Gauges Optional for Installation 6’ of Power/Ground Wires – Red, Yellow, Orange & Black Wires Compatible with 7 Color Gauge Series 20 Gauge Automotive Grade Wiring
3 Gauge Wiring Kit - Power & Sensor Wires Conveniently Connect all Gauge Power & Sensor Wires to 1 Easy-to-Use Wire Harness Color Matched Wires Make it Easy When Routing & Connecting Wires to their Source Extends the Length of Power/Sensor Wires Included with Gauges Optional for Installation 3’ of Power/Ground Wires – Red, Yellow, Orange & Black Wires 8’ of Sensor Wires – Blue, Brown & Green Wires Compatible with 7 Color Gauge Series 20 Gauge Automotive Grade Wiring

Installation Guides

This triple gauge package comes with an installation guide which is available online and in print and was made specifically for the 2003-2009 Dodge Ram 2500/3500 5.9L & 6.7L Cummins. An installation video is also available which provides a complete step-by-step tutorial along with useful tips on how to install this gauge package.

Watch the Installation Video

Download and Print the PDF
