7 Color Series Triple Gauge Package for 2017-2020 Ford Super Duty Power Stroke

GlowShift's 7 Color Series Triple Gauge Package was made for the 2017-2020 Ford Super Duty Power Stroke F-250 and F-350 with a 6.7L Power Stroke engine. Experience complete customization when you select from over 20 gauges for this 3-gauge set which comes with all required sensors. This package also includes a black Ford Super Duty triple pillar pod. With GlowShift’s 7 Color Gauge Series, you’ll experience the option of 7 different colors featured on an ultra-bright LED analog gauge display.

Gauge Series Details

A wide variety of unique color and style settings are available for complete customization of your ultra high-performance 2-1/16” (52mm) gauges. Choose from a black or white gauge face, and utilize 7 ultra-bright solid color display options that will allow you to match the lighting display of your Super Duty’s factory dashboard. These gauges also include microprocessor controlled stepper motor technology, selectable 7 color LED through dial lighting, a magnified tinted or clear lens depending on your selection, and an illuminated red needle that sweeps 270°. GlowShift also includes all sensors, wiring, mounting hardware and a one-year limited warranty with each purchase.

7 Color Gauge Series Choose from Black, White or Tinted Series Black or White Gauge Face Clear or Tinted Magnified Lens Ultra-Bright Analog LED Display Stepper Motor Technology

Match Your Factory Dash Lights 7 Color LED Through Dial Lighting 7 Solid Color Settings Blue, Red, Green, Teal, Purple, White & Yellow Two Color Cycle Modes Remembers Last Color Setting

Nighttime Dimming Dimmer Wire Dims Gauge 30% Reduce Brightness When Driving at Night Continue to Easily View your Readings Works When your Headlights are Turned On Activate with a Simple Connection

Diesel Tech Picks

Our Diesel Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your Ford Super Duty. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with all of the information you need to get the best performance out of your truck.

60 PSI Boost Reads Boost from 0 - 60 PSI 9' of Nylon Hose 1/8-27 NPT Brass Compression Fittings Mechanically Driven

1500° F Pyrometer EGT Reads Exhaust Temperature from 0 - 1500° Fahrenheit 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable 6' Sensor & 2' Power Wire Harnesses Waterproof EGT Probe to Sensor Harness Connector

Transmission Temperature Reads Transmission Temperature from 80 - 260° Fahrenheit 1/8-27 NPT Electronic Temperature Sensor 2' Sensor & Power Wire Harnesses Recommended For Vehicles with Automatic Transmission

100 PSI Fuel Pressure Reads Fuel Pressure from 0 - 100 PSI 1/8-27 NPT Electronic Fuel Pressure Sensor 9' Sensor & 2' Power Wire Harnesses

Pillar Pod Details

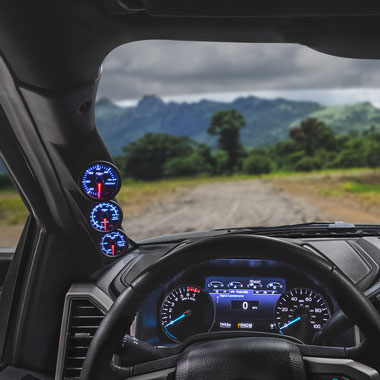

The included full size triple pillar pod is made specifically for the 2017-2020 Ford Super Duty Power Stroke F-250 and F-350 with a 6.7L Power Stroke engine. This pod can be effectively mounted as a complete replacement of your factory A-pillar and also includes a cutout for the A-Pillar speaker. This pillar gauge pod holds (3) 2-1/16” (52mm) gauges and is crafted from high quality ABS plastic, allowing it to withstand cracking, fading and warping. It can also be painted using ABS plastic paint to match your factory interior for a fully customized fit and finish. Fits: 2017, 2018, 2019, 2020 Fourth Gen Ford Super Duty F250, F350 & F450, 6.7 Powerstroke, Boss SOHC V8, Triton SOHC V10, Godzilla OHV V8; Ford F-150; Ford F-150 Raptor

Holds (3) 2-1/16” (52mm) Gauges A-Pillar Speaker Cutout Made from ABS Plastic Withstands Cracking, Fading and Warping

Replacement of Factory A-Pillar Full Length Gauge Pod Match to Your Factory Interior Professional Fit and Finish

Bolt Included for Pod Installation Installs Through Pre-Drilled Hole on Pod Easily Mounts to Factory Location No Drilling Required

Fitment Details

1/8-27 NPT Drill & Tap Set Used for Installing EGT Probe, Boost Fittings or Boost Sensor Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT Includes Size R Drill Bit & 1/8 NPT Tap	EGT Probe Bracket Quick & Easy Install the EGT Probe to the Exhaust Pipe No Drilling & Tapping the Exhaust Manifold Required Recommended Installing Bracket Close to the Turbo Drill a 3/8" Hole to the Exhaust Pipe & Clamp the Adapter to the Pipe Features 1/8-27 NPT Ferrule Fitting Bracket Sized at 3-1/8" - 5"	Test Port Adapter for 6R140 Quick & Easy Install of Temperature Sensor to Transmission Test Port Threads onto Temperature Sensor for Protection from Internal Transmission Parts No Modifications to Transmission Necessary Female 1/8-27 NPT Thread for Sensor Includes Crush Washer for Leak-Free Seal Fits 2011-2020 Ford Super Duty 6.7L Power Stroke with 6R140 Transmission	Big Line Kit for 2011-2020 Ford 6.7L Power Stroke Allows Installation of Fuel Pressure Sensor into Factory Fuel System Replaces the Factory Hard Line Between Secondary Fuel Filter & Vapor Control Valve Pre-Assembled Design with 3/8” Rubber Hose, T-Fitting, Quick-Connectors & Hose Clamps Female 1/8-27 NPT Thread Adapter on T-Fitting for Sensor Fits 2011-2020 Ford 6.7L Power Stroke
Oil Filter Sandwich Adapter Quick & Easy Solution to Install Multiple Sensors to the Truck’s Oil Filter Used for Oil Pressure & Oil Temperature Sensors Features a 1”-16 Thread, (4) 1/8-27 NPT Thread Ports & Port Plugs Includes O-Ring for Leak-Free Seal Fits 2011-2022 Ford Super Duty 6.7L Power Stroke	Expandable Circuit Quick & Easy Way to Power Gauges Directly from the Fuse Panel Used for Constant & Switched 12 Volt Power for Gauges Includes 4 Amp Fuse for Circuit Protection	3 Gauge Wiring Kit - Power Wires Only Conveniently Connect all Gauge Power Wires to 1 Easy-to-Use Wire Harness Color Matched Wires Make it Easy When Routing & Connecting Wires to their Source Extends the Length of Power Wires Included with Gauges Optional for Installation 6’ of Power/Ground Wires – Red, Yellow, Orange & Black Wires Compatible with 7 Color Gauge Series 20 Gauge Automotive Grade Wiring	3 Gauge Wiring Kit - Power & Sensor Wires Conveniently Connect all Gauge Power & Sensor Wires to 1 Easy-to-Use Wire Harness Color Matched Wires Make it Easy When Routing & Connecting Wires to their Source Extends the Length of Power/Sensor Wires Included with Gauges Optional for Installation 3’ of Power/Ground Wires – Red, Yellow, Orange & Black Wires 8’ of Sensor Wires – Blue, Brown & Green Wires Compatible with 7 Color Gauge Series 20 Gauge Automotive Grade Wiring
