GlowShift’s Black 7 Color Series High Pressure Oil Pressure HPOP Gauge is electronically driven and reads a truck’s HPOP level from 0 to 4,000 PSI with unrivaled accuracy. Installation involves simply connecting the HPOP Gauge’s sensor wires to the factory Injector Control Pressure Sensor (ICP Sensor). This gauge is a must-have if you’re running a Ford Power Stroke 7.3L or 6.0L diesel engine and you’re looking to monitor the high pressure entering the oil pumps. It is recommended only for these Power Stroke engines.
GlowShift’s Black 7 Color Gauge Series comes standard with a cutting-edge design that includes a black gauge dial, analog display and magnified clear lens. You can also choose between 7 different color options for the LED display. Install to the dashboard, A-pillar, or another location inside your vehicle. You’ll enhance the interior of your vehicle and take accurate readings at the same time.
Features
The gauge’s illuminated red needle sweeps 270° and is powered by stepper motor technology. You’ll get an effective combination of incredibly precise gauge readings with extremely smooth needle movement. GlowShift’s 7 Color through dial lighting system allows you to select and change the color of your gauge lighting display by simply pressing the button located on the front of the gauge. |
7 Color Options
Easily cycle through the 7 Solid Color Settings and 2 Color Cycle Modes. The solid color modes featured are Blue, Green, Red, Teal, Yellow, Purple and White. Adjust the color of the gauge to match your factory dash lights, or create a custom look inside of your car or truck. With the Color Memory feature, you won’t have to reset the color of the gauge every time you turn on your vehicle. |
Backlighting
This gauge features LED backlighting which results in an ultra-bright display that delivers clear and vivid readouts. On or off, the gauge will look great courtesy of the black gauge face and magnified lens which are at the heart of this Gauge Series. By connecting the orange wire from the power harness to the factory headlight switch, you can dim the gauge 30% when the headlights are on. |
|
Wiring

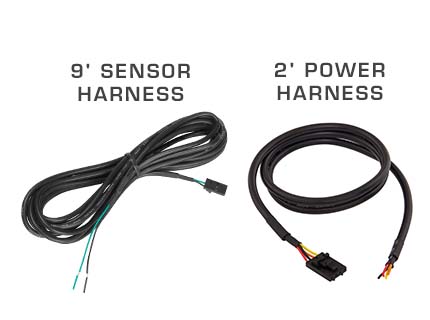

The 9' Sensor Harness connects directly to your truck’s factory ICP Sensor for extremely accurate readings. The 2’ Power Wire includes both power and ground connections. Easily attach included wiring harnesses to the back of the gauge with plug and play connnectors. |
Mounting Bracket
A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable. |
Gauge Visor
The gauge visor is used to protect against sun glare so that you’ll have a clear view of readings during the day. This visor easily slips onto the gauge with the wider portion positioned at the top. |
High Pressure Oil Pressure is integral to a Power Stroke diesel engine because it drives the injectors to supply fuel to the engine. The HPOP system receives oil from the low pressure oil pump in order to drive injectors. The truck’s computer system will then tell the injectors exactly when to fire. Pressure levels can be anywhere within the range of 500 to 3,000 PSI. Having a weak or defective HPOP could starve the injectors for fuel and lead to other fuel system failures. An upgraded HPOP may be required if fuel injectors for the fuel system have been upgraded, ensuring there is a sufficient amount of fuel feeding the engine. A high pressure oil pump gauge will keep you alerted in the event that HPOP levels aren’t optimal. It is also a great option for replacing an HPOP test gauge. This engine oil pressure gauge high pressure specifically is recommended ONLY for the 7.3 and 6.0 Ford Powerstroke.
GlowShift’s HPOP Gauge Wiring Pigtail Harness eliminates the need to splice into any factory wiring in order to receive readings. This harness installs directly to the injector control pressure sensor, providing extremely accurate readings. The harness is 6” with 9” sensor and ground lead wires.
GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a one year limited warranty and free lifetime tech support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.
Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.
