MaxTow Black & Green Double Vision™ 30,000 PSI Fuel Rail Pressure Gauges are compatible with the 2003-2018 Dodge Ram 5.9 Cummins & 6.7 Cummins, and 2002-2018 Chevrolet Silverado or GMC Sierra 6.6 Duramax. This diesel fuel rail pressure gauge reads your truck’s high fuel pressure levels from 0 to 30,000 PSI directly from the common rail, monitoring your Cummins or Duramax engine with unrivaled accuracy. Protect against damage to the fuel pump and injectors while avoiding a loss in overall horsepower. Get ready to hit the road and Tow to the Max™
This truck fuel rail pressure gauge kit comes with everything required for installation. Included you’ll receive Sensor and Power Wiring Harnesses, Mounting Hardware and more. Detailed Installation Instructions walk you through the common rail pressure gauge install step by step. Add this gauge to your compatible Dodge Cummins or Chevy/GMC Duramax pickup.

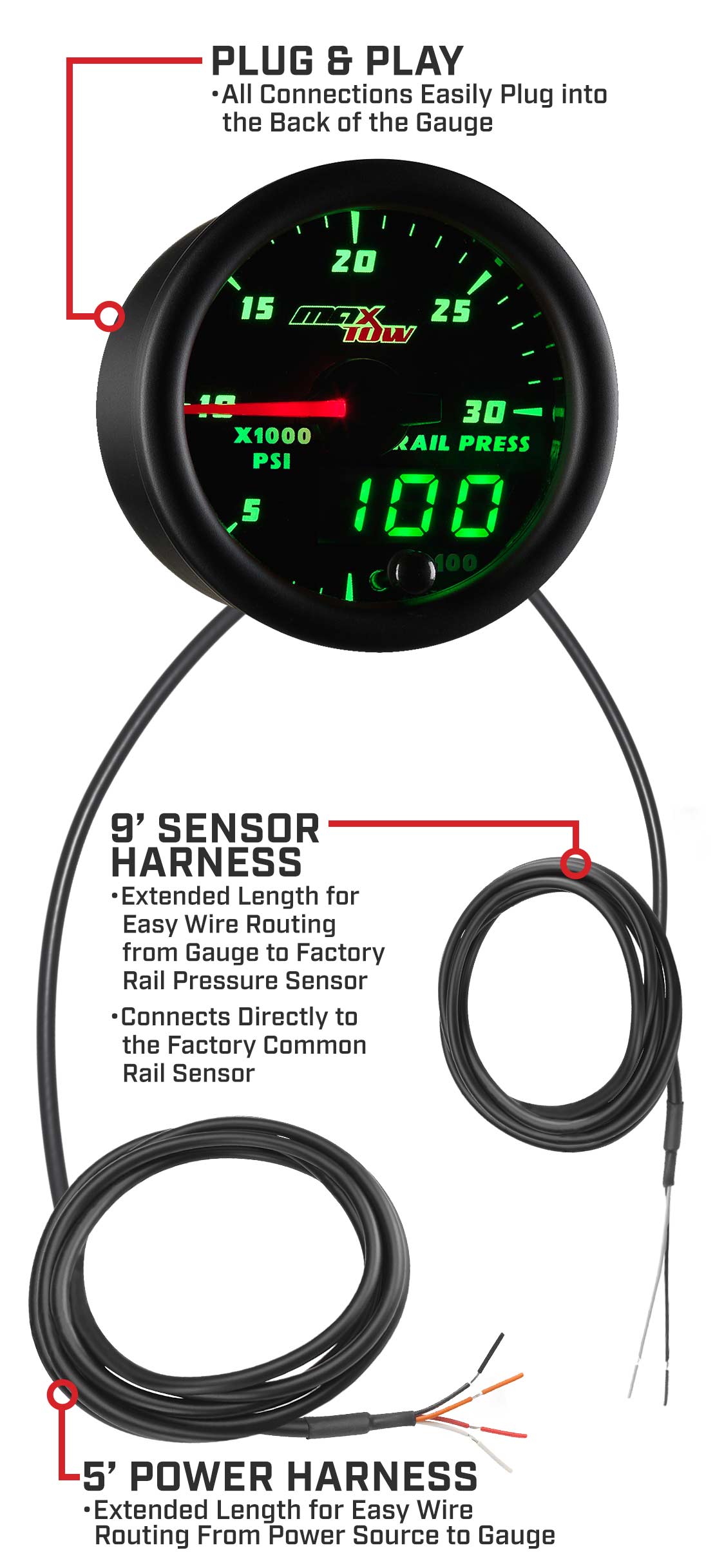

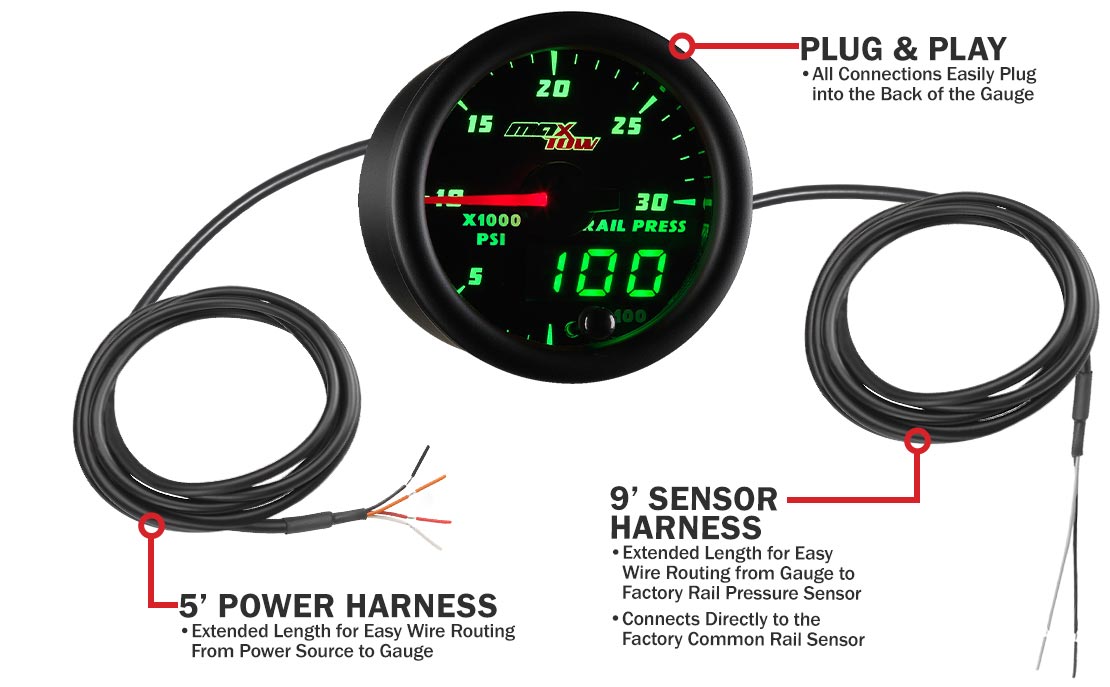

Fuel Rail Pressure Gauge Wiring
MaxTow Duramax and Cummins Rail Pressure Gauges feature sensor and power harnesses with extended lengths for added flexibility during installation. The sensor harness is 9’ and the power harness is 5’, assuring you’ll have more than enough wiring for a seamless install. Easily attach both harnesses to the back of this rail pressure gauge for trucks by utilizing Plug and Play connectors.

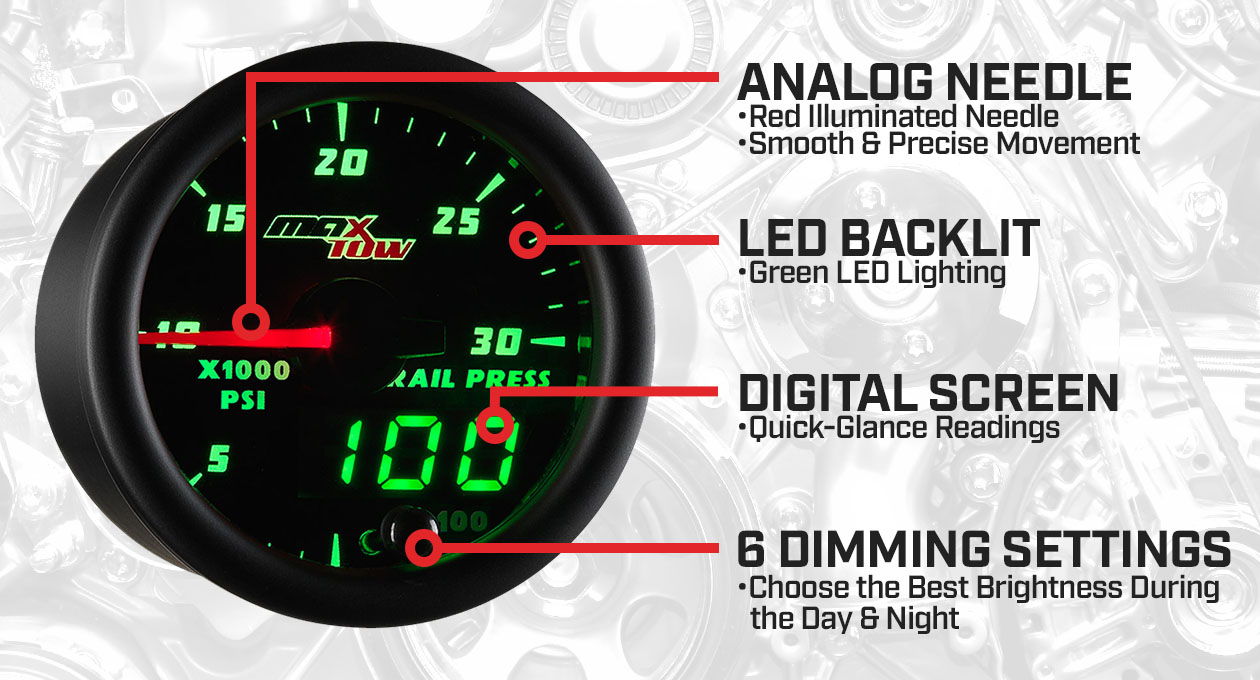

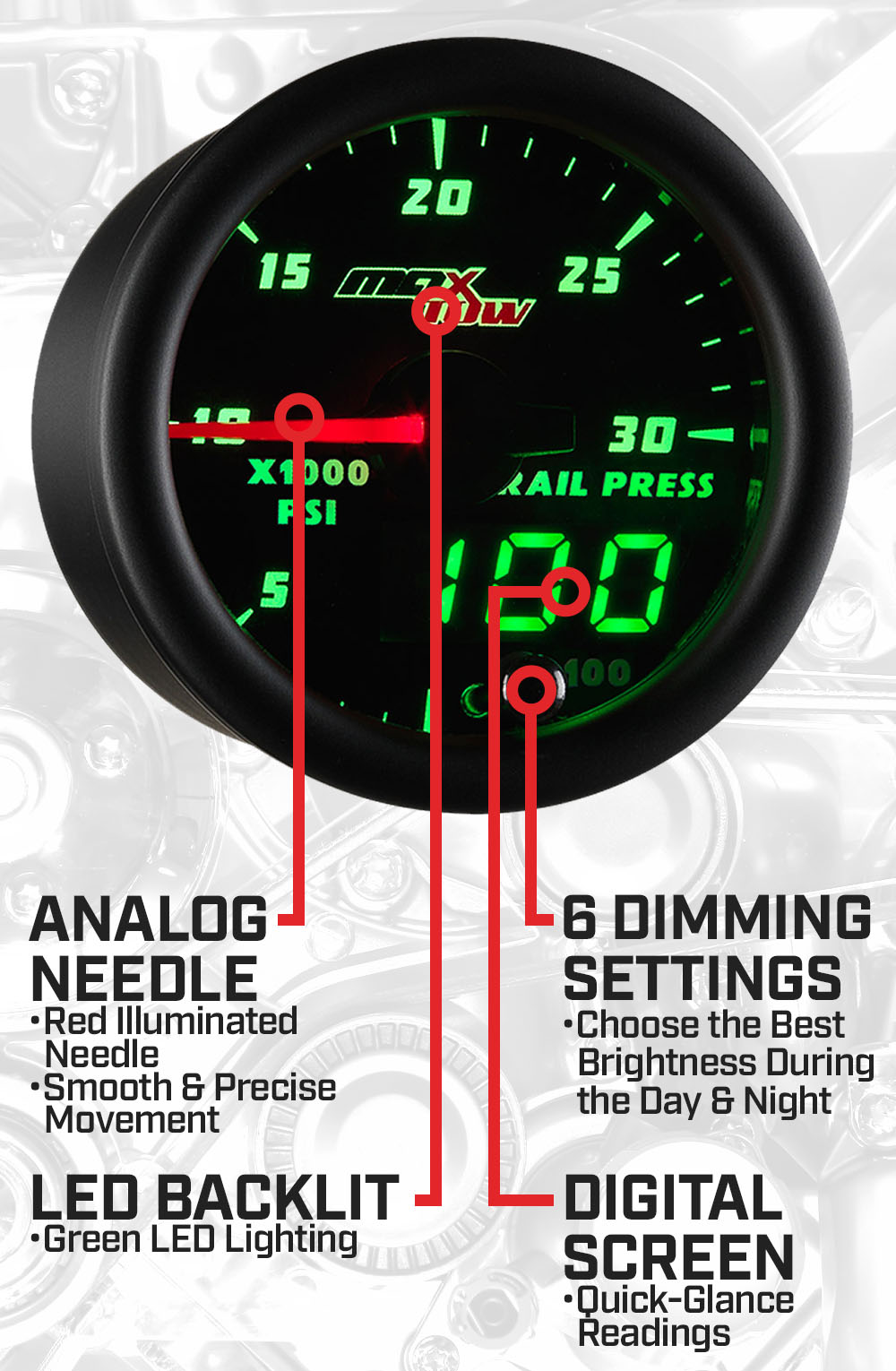

Double Vision™ Series Features
MaxTow Black & Green Double Vision™ Gauges feature a black gauge dial and green LED display with an illuminated red needle. Get the classic look of an analog gauge combined with a green digital numerical readout. This 2-1/16” (52mm) gauge is equipped with stepper motor technology which allows for all needle movement to be exceptionally smooth and all gauge readings to be extremely accurate. Brightness Recall retains the previous brightness setting before the truck is powered down.
Wiring Harnesses
The 9' Sensor Harness Connects Directly to Your Truck’s Factory Rail PSI Sensor Wire for Extremely Accurate Readings Directly from the Common Rail. The 5’ Power Wire Includes Both Power and Ground Connections. Easily Attach Included Wiring Harnesses to the Back of the Gauge with Plug and Play Connectors.
Mounting Bracket
A U-Shaped Gauge Mounting Bracket Is Included with a Stud Kit that Attaches the Bracket to the Back of the Fuel Rail Pressure Gauge. This Bracket Delivers a Secure Fit for Any In-Dash Mount.
Dimming Modes
Each Truck Rail Pressure Gauge Is Equipped with 3 Daytime and 3 Nighttime Dimming Modes. Customize the Brightness Level for Optimal Viewing of Readings Anytime of Day or Night.
What's Included
2-1/16” (52mm) Fuel Rail Pressure Gauge
9’ Sensor Harness
5’ Power Harness
Gauge Visor
Mounting Bracket
Mounting Bracket Hardware
Installation Instructions
Cummins & Duramax Fuel Rail Pressure Gauges
When you install this Cummins rail pressure gauge or Duramax fuel rail pressure gauge, you can stay on top of your specific diesel truck’s high fuel pressure with readings from 0 to 30,000 PSI to help protect against critical diesel engine damage. These pickups are built to demand higher performance, and a diesel fuel rail pressure gauge lets you know if common rail pressure levels are where they should be when your truck is modified for power, or when you’re putting added stress on the engine by driving long distances or towing heavy cargo. This Rail PSI Gauge is only compatible with 2003-2018 Dodge Ram 5.9 Cummins and 6.7 Cummins; 2002-2018 Chevy Silverado and GMC Sierra 6.6 Duramax.
Pigtail Wiring Harness
Adding the Fuel Rail Pressure Gauge Wiring Pigtail Harness eliminates the need for splicing into any factory wiring to receive rail pressure readings. At a length of 6” with 9” sensor and ground lead wires, this gauge harness installs directly to the rail pressure sensor.
GlowShift Guarantee
GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our Gauges, Pods and Accessories.
Quick & Easy Installation Without Having to Splice or Cut into Factory Wires
Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.
Review by Silas I. on 10 Sep 2023review stating Use the ONLINE installation manual!
I installed this gauge on my 2003 Cummins. I followed the paper installation manual that was supplied with my gauge and when I went to start my truck it ran then shut off after a few seconds… try’d to start it again and wouldn’t start. After checking the wires with my voltmeter I found the paper manual has you wire a direct short to ground for you...Read MoreRead more about I installed this gauge on my 2003
r ECM. I then looked up the manual on their website and it has an updated manual with corrected colors. I rewired it match the online manual and worked perfect. No harm to my truck just thought this review could save the next guy some time and headache, overall very happy with the gauge! Read LessRead less about I installed this gauge on my 2003
Review by RONNALLE R. on 19 May 2021review stating Very accurate
With this install I was able to diag my fuel situation with code P0087 low rail pressure. ended up replacing my relief valve fuel and pressures are not erratic.
