Elite 10 Color 3-3/4" 10,000 RPM In-Dash Tachometer Gauge

SKU:
GS-ET16
$199.99
$139.99
(You save $60.00 )

UPC:
842559101797
Maximum Purchase:
99 units
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

GlowShift’s Elite 10 Color Series In Dash Tachometer with Shift Light for cars and trucks delivers ultra-high performance features, making them optimal for any 1 through 10 cylinder gas powered performance vehicle. This 3-3/4” (95mm) tachometer RPM gauge reads from 0 to 10,000 RPM with pinpoint accuracy, ensuring you’re shifting at the right time to protect against unnecessary transmission wear. Replace a faulty stock tach gauge or add to your custom dashboard.

Elite 10 Color Gauge Series Elite 10 Color Gauge Series

Elite 10 Color Series Gauges feature a black gauge dial, magnified tinted lens and analog LED display with 10 color settings. The illuminated red needle is equipped with stepper motor technology for extremely smooth needle movement and accurate readings. Programmable High and Low Warnings alert you visually and with an optional audible tone, ensuring levels aren’t dipping or spiking. Peak Recall registers your most recent peak value. Dim the gauge 30% at night by connecting to the factory headlight switch for optimal viewing.

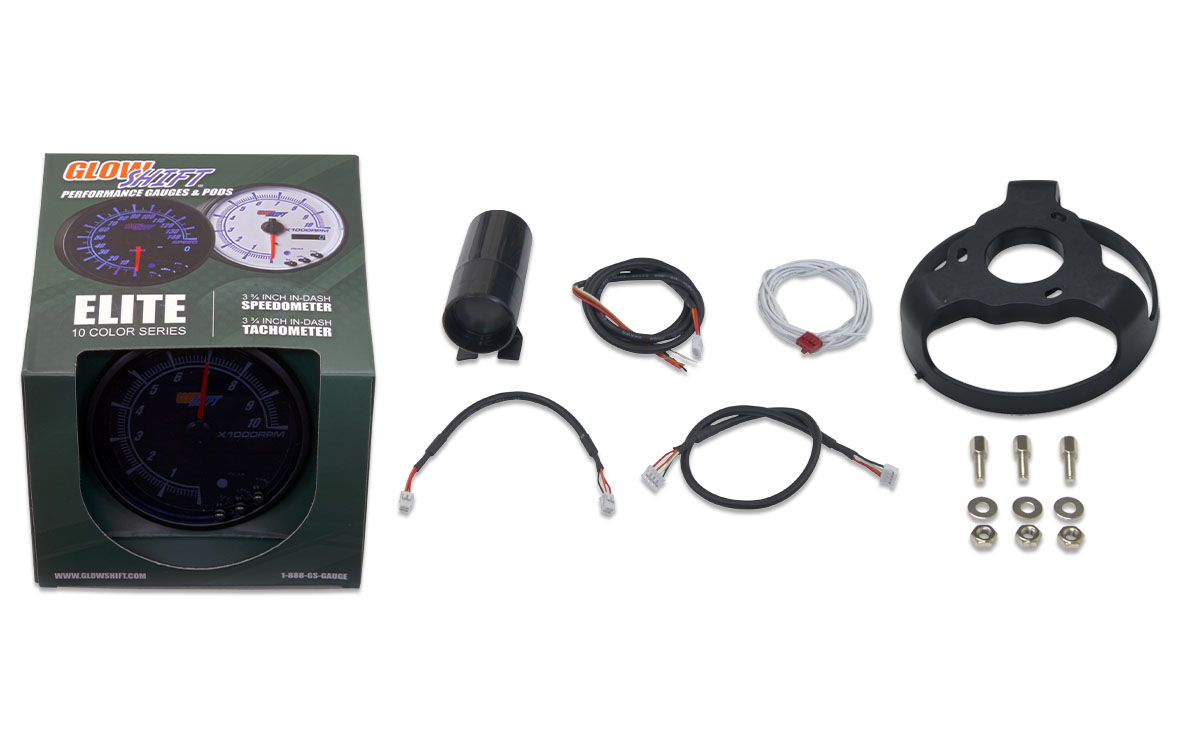

Elite 10 Color 95mm In-Dash Tachometer Gauge Unboxed Elite 10 Color 95mm In-Dash Tachometer Gauge Unboxed

Includes Everything for Installation

This In Dash Tachometer Gauge Kit comes with parts for installation including a 6’ Tachometer Signal Wire; 2’ Power Harness; 1’ Daisy Chain Harness; Gauge Visor; an In-Dash Mounting Bracket; and Mounting Hardware. Detailed Installation Instructions walk you through the process step by step.

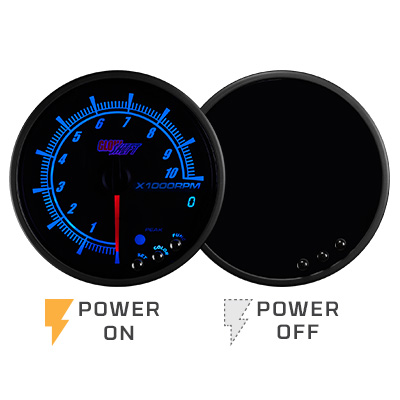

Tinted Lens

Tinted Lens

The Magnified Tinted Lens has a Concave Shape and Looks Incredible Whether it is On or Off, Delivering a Stealth-Like Feature when it isn’t Active.

10 Color Options

Elite 10 Color Series Color Options

Select from 10 Solid Color Modes. The Sequence of Display Colors are Blue, Green, Red, Yellow, White, Light Blue, Purple, Pink, Orange and Amber.

Nighttime Dimming

Nighttime Dimming Feature

Through a Simple Connection to Your Headlamp Source, this Feature Decreases the Brightness of the Gauge Dial by 30% for Easier Viewing at Night.

High/Low Warnings

Elite 10 Color Series High Low Warnings

Adjustable High and Low Warning Functions Alert You Visually or with an Optional Audible Tone, Ensuring that Your Car or Truck’s Gauge Readings are Optimal.

Peak Recall

Elite 10 Color Series Peak Recall

With this Setting You Can Recall Your Last Peak Value and then Clear that Reading in Peak Setting Mode in Order to View the Next Peak Value.

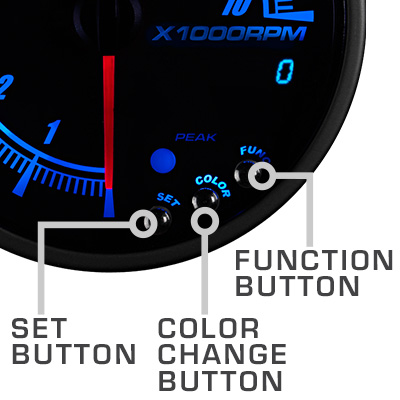

Selectable Features

Selectable Features

Use the Buttons on the Gauge Display to Select a Color, Program High/Low Warnings, View Your Most Recent Peak Value and More.

Signal Wire

Electronic Sensors Included

The 3-3/4" In-Dash Tachometer Can Be Installed By Connecting the Included Color Coded Wiring Harness to the Negative Side of the Coil, the Tachometer Test Port, or to a Tach Adapter.

Plug & Play

Plug and Play Connectors

The Included Sensor and Power Harnesses Easily and Securely Connect to the Back of the Gauge by Utilizing Modular Connectors with the Ability to Daisy Chain Multiple Gauges.

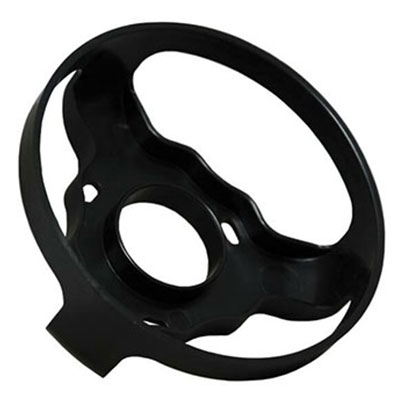

In-Dash Bracket

In-Dash Mounting Bracket

The included 3-3/4" In-Dash Mounting Bracket will securely mount the 3-3/4" In-Dash Tachometer into your car or truck's dashboard.

Note: GlowShift Car and Truck Tachometers are only designed for a gasoline, single coil application when monitoring a gauge’s RPM. For multiple coil applications, the use of a multiple coil or aftermarket ignition system adapter is required. Vehicles equipped with High Energy Ignition Systems (HEI) will require GlowShift’s HEI Signal Filter.

In-Dash Tachometer with Shift Light

This 3-3/4” (95mm) tachometer in dash is optimal for drivers who want to monitor their RPMs for drivers looking to install a dashboard tachometer with shift light. Each tach gauge can be installed as part of the factory instrument panel or can be added directly into the dashboard with the included mounting bracket. Doing so gives you the option of color-matching this analog RPM gauge to the factory instrument panel for a fully customized look. This tachometer with shift light is designed for drivers looking to replace a stock gauge or build a custom dashboard.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.

  • Allows Users to Mount the Gauge to the Dashboard of the Vehicle
  • Includes Mounting Hardware
  • Transforms Poor, Weak or Disordered Pulse Signals & Corrects Them
  • Used for Single Coil & Point Style Coil Ignition Systems
  • Specifically Designed for Vehicles with High Energy Ignition Systems
  • Converts High Voltage Signal to a More Manageable Voltage for the Tachometer Gauge
Tech Specs
Gauge Series: Elite 10 Color Series
Brand: GlowShift
Gauge Type: Tachometer
Range of Reading: 0 - 10,000 RPM
Face Color: Black
Size: 95mm
Lens: Tinted
Backlighting Color: 10 Colors
Sending Unit: Electronic
Measurement Unit: Standard
Display: Analog
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
