Elite 10 Color Series Dual Air Vent Gauge Package for 2002-2004 Subaru Impreza WRX

Build a customizable GlowShift dual air vent gauge package for any 2002-2004 Subaru Impreza WRX STI. This package features the Elite 10 Color Gauge Series, which includes 10 different solid color options and an ultra-bright analog LED gauge display. You’ll have the choice of 2 gauges from a wide and diverse selection, with many gauges including their required sensor. This package also includes 2x Single Gauge Air Vent Pods that mount to the front center air vents above the radio for a unique installation.

Gauge Series Details

The Elite 10 Color Gauge Series includes ultra-bright LED analog gauges that feature a streamlined design with a flat gauge face, black gauge dial, magnified tinted lens and illuminated red needle. With selectable 10 color through dial lighting for the easy-to-read display, you can choose between 10 solid color options to create a custom look. The 10 solid colors include Blue, Green, Red, Yellow, White, Light Blue, Purple, Pink, Orange and Amber. Built-in stepper motor technology allows for incredibly smooth movement, resulting in extremely accurate readings. In addition to the solid color settings, you will also have (2) Color Cycle Modes which cycle through all of the solid color options. Color Fade Mode slowly navigates and fades through each of the colors. Additional features include a Color Recall capability so that your gauge will remember the last color setting used before it was turned off. Adjustable High and Low Warning functions will alert you visually or with an optional audible tone, ensuring levels are not running too high or too low. Peak Recall provides you with instant feedback on your last peak value. For even better visibility at night, there is an easy-to-use Dimming Feature which dims the gauge 30% for clearer viewing.

Elite 10 Color Series Black Gauge Dial Tinted Magnified Lens 7/8” Depth for Lens Illuminated Red Needle

Customizable Color Display Ultra-Bright LED Lighting 10 Solid Color Settings Blue, Green, Red, Yellow, White, Light Blue, Purple, Pink, Orange and Amber Color Cycle & Color Fade Modes

Nighttime Dimming Dimmer Wire Dims Gauge 30% Reduce Brightness When Driving at Night Works When your Headlights are Turned On Activate with a Simple Connection

High and Low Warning Function High and Low Readouts Set Your Preferred Levels Audible Tone or Visual Alert Easy to Program

Peak Recall Ability Peak Setting Mode Recalls Last Peak Value Quick Intuitive Feedback Optional Feature

Wiring for Installation 2’ Power Harness with Each Gauge Plug ‘n Play Connectors Gauges Daisy-Chain Together Power All Gauges Thru 1

Tech Picks

Our Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your Subaru Impreza WRX. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with all of the information you need to get the best performance out of your engine.

30 PSI Boost/Vacuum Reads Boost from 0 - 30 PSI Reads Vacuum from (-30) - 0 inHG Electronic Sensor, 6' Clear PVC Hose, T-Fitting & Filter 2' Power & 6' Sensor Wire Harnesses

Oil Pressure Reads Oil Pressure from 0 - 100 PSI 1/8-27 NPT Electronic Pressure Sensor 2' Power & 6' Sensor Wire Harnesses

100 PSI Fuel Pressure Reads Fuel Pressure from 0 - 100 PSI 1/8-27 NPT Electronic Pressure Sensor 2' Power & 6' Sensor Wire Harnesses

Wideband Air/Fuel Ratio Reads Air/Fuel Ratio from 10 - 20 AFR Analog Needle Wideband Oxygen Sensor Digital Wideband Controller Unit with Data Logging Weld-In Sensor Bung Power & Sensor Wire Harnesses

Air Vent Pod Details

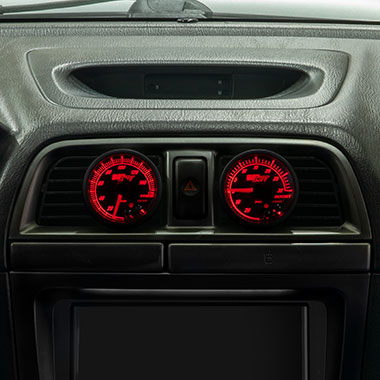

The included air vent gauge pods are made specifically for the 2002-2004 Subaru Impreza WRX STI. These air vent gauge pods mount to a specific location, the front center air vents above the radio. Each pod seamlessly replaces the factory air vents and securely clips into the same location with no mounting hardware required for installation. Airflow from the air conditioning vents will not be blocked with this gauge pod and gauge installed. Each pod is manufactured from high quality ABS plastic that is designed and built to last. Fits: 02, 03, 04 Subaru Impreza WRX STI.

Each Pod Holds (1) 2-1/16” (52mm) Gauge Fits Front Center Air Vents Includes Left & Right Air Vent Pods Manufactured from ABS Plastic

Tailor-Made for the Impreza WRX Mounts to Vents Above the Radio Easy to View Gauge Readings Unique Mounting Location

Air Vent Pods Do Not Block Airflow Replaces Factory Air Vents Easy Installation Process No Mounting Hardware Required

Fitment Details

8mm Fuel Line T-Fitting Adapter Quick & Easy Install of Pressure Sensor to 8mm Fuel Line Cut the Line, Insert the T-Fitting & Secure with Included Clamps Barbed Fittings for Leak-Free Connection Female 1/8-27 NPT Thread for Sensor Fits 2002-2012 Subaru Impreza WRX

Oil Galley Adapter for Subaru EJ Engines Quick & Easy Install of Pressure or Temperature Sensor to Oil Galley Port on Engine Includes Crush Washer for Secure Fit Wrapped with Teflon Tape for Leak-Free Seal Female 1/8-27 NPT Thread for Sensor Fits Subaru EJ Engines

Oil Filter Sandwich Adapter Quick & Easy Solution to Install Multiple Sensors to Vehicle’s Oil Filter Used for Oil Pressure & Oil Temperature Sensors Features (4) 1/8-27 NPT Thread Ports & Port Plugs Includes O-Ring for Leak-Free Seal
