Elite 10 Color Series Dual Dashboard Gauge Package for 2004-2006 Pontiac GTO

Build a customizable GlowShift dual gauge package for the 2004-2006 Pontiac GTO. This package features the Elite 10 Color Gauge Series, which includes 10 different solid color options and an ultra-bright analog LED gauge display. You’ll also have the choice of any 2 gauges from a wide and diverse selection, with many gauges including their required sensor. As part of this gauge package you'll also receive a black dual dashboard pod that is extremely durable and can be mounted to your vehicle's dash.

Gauge Series Details

The Elite 10 Color Gauge Series includes ultra-bright LED analog gauges that feature a streamlined design with a flat gauge face, black gauge dial, magnified tinted lens and illuminated red needle. With selectable 10 color through dial lighting for the easy-to-read display, you can choose between 10 solid color options to create a custom look. The 10 solid colors include Blue, Green, Red, Yellow, White, Light Blue, Purple, Pink, Orange and Amber. Built-in stepper motor technology allows for incredibly smooth movement, resulting in extremely accurate readings. In addition to the solid color settings, you will also have (2) Color Cycle Modes which cycle through all of the solid color options. Color Fade Mode slowly navigates and fades through each of the colors. Additional features include a Color Recall capability so that your gauge will remember the last color setting used before it was turned off. Adjustable High and Low Warning functions will alert you visually or with an optional audible tone, ensuring levels are not running too high or too low. Peak Recall provides you with instant feedback on your last peak value. For even better visibility at night, there is an easy-to-use Dimming Feature which dims the gauge 30% for clearer viewing.

Elite 10 Color Series Black Gauge Dial Tinted Magnified Lens 7/8” Depth for Lens Illuminated Red Needle

Customizable Color Display Ultra-Bright LED Lighting 10 Solid Color Settings Blue, Green, Red, Yellow, White, Light Blue, Purple, Pink, Orange and Amber Color Cycle & Color Fade Modes

Nighttime Dimming Dimmer Wire Dims Gauge 30% Reduce Brightness When Driving at Night Works When your Headlights are Turned On Activate with a Simple Connection

High and Low Warning Function High and Low Readouts Set Your Preferred Levels Audible Tone or Visual Alert Easy to Program

Peak Recall Ability Peak Setting Mode Recalls Last Peak Value Quick Intuitive Feedback Optional Feature

Wiring for Installation 2’ Power Harness with Each Gauge Plug ‘n Play Connectors Gauges Daisy-Chain Together Power All Gauges Thru 1

Tech Picks

Our Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your 04-06 Pontiac GTO. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with all of the information you need to get the best performance out of your engine.

Water (Coolant) Temperature Reads Coolant Temperature from 100 - 280° Fahrenheit 1/8-27 NPT Electronic Temperature Sensor 2' Power & 8' Sensor Wire Harnesses

Wideband Air/Fuel Ratio Reads Air/Fuel Ratio from 10 - 20 AFR Wideband Oxygen Sensor Digital Wideband Controller Unit with Data Logging Weld-In Sensor Bung Power & Sensor Wire Harnesses

Oil Pressure Reads Oil Pressure from 0 - 100 PSI 1/8-27 NPT Electronic Pressure Sensor 2' Power & 6' Sensor Wire Harnesses

100 PSI Fuel Pressure Reads Fuel Pressure from 0 - 100 PSI 1/8-27 NPT Electronic Pressure Sensor 2' Power & 6' Sensor Wire Harnesses

Pod Details

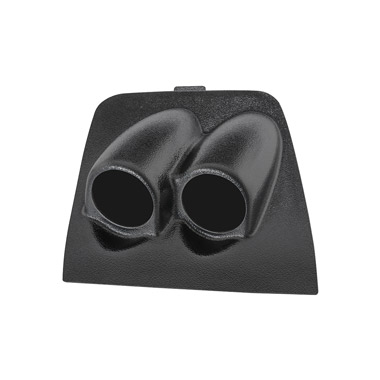

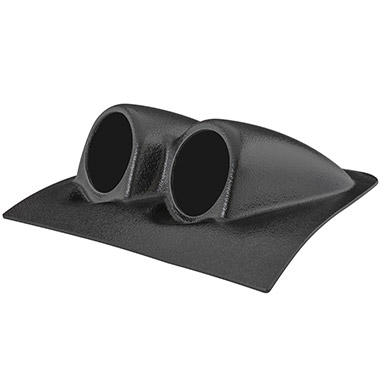

The included dual gauge dashboard pod is made specifically for the 2004-2006 Pontiac GTO. You can easily mount this dash pod, with slots that are angled towards drivers of left-hand models for even easier viewing. This Pontiac GTO gauge pod is manufactured from high-quality ABS plastic, allowing it to withstand cracking, fading and warping. It can also be easily painted using ABS plastic paint. This pod holds (2) 2-1/16” (52mm) gauges, and please note that you may need to trim the textured panel beneath the gauges for precise fitment. Fits: 04, 05, 06 Pontiac GTO.

Holds (2) 2-1/16” (52mm) Gauges Black Pontiac Dashboard Pod Made from ABS Plastic Paintable Using ABS Plastic Paint

Tailor-Made for the GTO Mount to Your Pontiac’s Dash 8-5/8” Length, 8-3/4” Width, 2-1/4” Height Custom Measured

Angled For Left-Hand Driving Easy Installation Process Double Sided Tape Included Mounting Tab for Secure Fit

Fitment Details

Oil Filter Sandwich Adapter Quick & Easy Solution to Install Multiple Sensors to Vehicle’s Oil Filter Used for Oil Pressure & Oil Temperature Sensors Features (4) 1/8-27 NPT Thread Ports & Port Plugs Includes O-Ring for Leak-Free Seal
