Elite 10 Color Series Triple Gauge Package for 1998-2002 Dodge Ram Cummins

Build a customizable GlowShift triple gauge package for any 1998-2002 Dodge Ram 2500/3500 24v 5.9L Cummins. This package features the Elite 10 Color Gauge Series, which includes 10 different solid color options and an ultra-bright analog LED gauge display. You’ll also have the choice of 3 gauges from a wide and diverse selection, with many gauges including their required sensor. As part of this gauge package you will also choose between a black, factory color matched gray, or factory color matched tan triple pillar pod with or without a speaker cutout option which mounts to the factory A-pillar for a custom fit and finish.

Gauge Series Details

The Elite 10 Color Gauge Series includes ultra-bright LED analog gauges that feature a streamlined design with a flat gauge face, black gauge dial, magnified tinted lens and illuminated red needle. With selectable 10 color through dial lighting for the easy-to-read display, you can choose between 10 solid color options to create a custom look. The 10 solid colors include Blue, Green, Red, Yellow, White, Light Blue, Purple, Pink, Orange and Amber. Built-in stepper motor technology allows for incredibly smooth movement, resulting in extremely accurate readings. In addition to the solid color settings, you will also have (2) Color Cycle Modes which cycle through all of the solid color options. Color Fade Mode slowly navigates and fades through each of the colors. Additional features include a Color Recall capability so that your gauge will remember the last color setting used before it was turned off. Adjustable High and Low Warning functions will alert you visually or with an optional audible tone, ensuring levels are not running too high or too low. Peak Recall provides you with instant feedback on your last peak value. For even better visibility at night, there is an easy-to-use Dimming Feature which dims the gauge 30% for clearer viewing.

Elite 10 Color Series Black Gauge Dial Tinted Magnified Lens 7/8” Depth for Lens Illuminated Red Needle

Customizable Color Display Ultra-Bright LED Lighting 10 Solid Color Settings Blue, Green, Red, Yellow, White, Light Blue, Purple, Pink, Orange and Amber Color Cycle & Color Fade Modes

Nighttime Dimming Dimmer Wire Dims Gauge 30% Reduce Brightness When Driving at Night Works When your Headlights are Turned On Activate with a Simple Connection

High and Low Warning Function High and Low Readouts Set Your Preferred Levels Audible Tone or Visual Alert Easy to Program

Peak Recall Ability Peak Setting Mode Recalls Last Peak Value Quick Intuitive Feedback Optional Feature

Wiring for Installation 2’ Power Harness with Each Gauge Plug ‘n Play Connectors Gauges Daisy-Chain Together Power All Gauges Thru 1

Diesel Tech Picks

Our Diesel Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your 98-02 Dodge Ram. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with all of the information you need to get the best performance out of your diesel engine.

60 PSI Boost Reads Boost from 0 - 60 PSI 1/8-27 NPT Electronic Pressure Sensor 2' Power & 6' Sensor Wire Harness

1500° F Pyrometer EGT Reads Exhaust Temperature from 0 - 1500° Fahrenheit 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable 2' Power & 6' Sensor Wire Harnesses

Transmission Temperature Reads Transmission Temperature from 80 - 260° Fahrenheit 1/8-27 NPT Electronic Temperature Sensor 2' Power & 8' Sensor Wire Harnesses Recommended For Vehicles with Automatic Transmission

30 PSI Fuel Pressure Reads Fuel Pressure from 0 - 30 PSI 1/8-27 NPT Electronic Pressure Sensor 2' Power & 6' Sensor Wire Harnesses

Pillar Pod Details

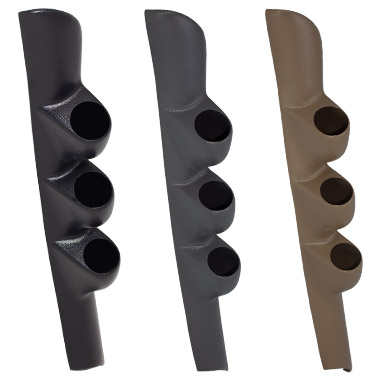

The included full size, factory matched triple pillar pod with or without a speaker cutout option is made specifically for the 1998-2002 Dodge Ram 2500/3500 24v 5.9L Cummins. Select from black, gray or tan, and this pod can be effectively mounted as a complete replacement of your existing A-pillar. This pillar gauge pod holds (3) 2-1/16” (52mm) gauges and is crafted from high quality ABS plastic, allowing it to withstand cracking, fading and warping. It can also be painted using ABS plastic paint to match your factory interior for a fully customized fit and finish. Fits: 98, 99, 00, 01, 02 Dodge Ram 2500 & 3500.

Holds (3) 2-1/16” (52mm) Gauges Choose Between Black, Gray or Tan Made from ABS Plastic Withstands Cracking, Fading and Warping

Replacement of Factory A-Pillar Full Length Gauge Pod Match to Your Factory Interior Professional Fit and Finish

Factory A-Pillar Speaker Cutout Located at the Base of the Pod For Your Factory Speaker Speaker Easily Clips into Opening

Fitment Details

1/8-27 NPT Drill & Tap Set Used for Installing EGT Probe, Boost Fittings or Boost Sensor Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT Includes Size R Drill Bit & 1/8 NPT Tap	Boost Bolt Adapter for 5.9L Cummins Quick & Easy Install of Boost Hose or Sensor into the Intake Manifold Replaces the Manifold Horn Bolt No Drilling & Tapping Required Female 1/8-27 NPT Thread for Fittings/Sensor Fits 1998.5-2002 5.9L Cummins	Banjo Bolt Adapter for 12 Valve Cummins Easy Install of Fuel Pressure Sensor to Injection Pump Replaces the Factory Banjo Bolt Includes 2 Crush Washers for Secure Fit Female 1/8-27 NPT Thread for Sensor Fits 1994-1998.5 Dodge Ram 12 Valve Cummins	Banjo Bolt Adapter for 24 Valve Cummins Easy Install of Fuel Pressure Sensor to Fuel Filter Housing Replaces the Factory Banjo Bolt Includes 2 Crush Washers for Secure Fit Female 1/8-27 NPT Thread for Sensor Fits 1998-2002 Dodge Ram 24 Valve Cummins
Snubber Valve Regulates, Normalizes & Eliminates Fuel Pressure Spikes During Startup Protects Pressure Sensor from Spikes/Water Hammer Effect Installs Between Fuel Filter Housing & Sensor High-Quality Brass Design – Built to Last Male & Female 1/8-27 NPT Threads	Banjo Bolt + Snubber Valve Combo for 24 Valve Cummins Easy Install of Fuel Pressure Sensor to Fuel Filter Housing All-in-One Design – Less Chance of Leaks Between Fittings Snubber Valve Protects Pressure Sensor from Spikes/Water Hammer Effect Replaces the Factory Banjo Bolt Includes 2 Crush Washers for Secure Fit Female 1/8-27 NPT Thread for Sensor Fits 1998.5-2002 Dodge Ram 24 Valve Cummins	Big Line Kit for 1998.5-2007 Dodge Ram 5.9L Cummins Allows Installation of Fuel Pressure Sensor into Factory Fuel System Replaces the Restrictive Factory Line with 3/8” Rubber Hose Between Fuel Filter Housing & Injection Pump Includes 3/8” T-Fitting, 90° Fittings, AN Adapters & Hose Clamps Female 1/8-27 NPT Thread Adapter on T-Fitting for Sensor Fits 1998.5-2007 Dodge Ram 5.9L Cummins	Test Port Adapter for 47RE & 48RE Quick & Easy Install of Temperature Sensor to Transmission Test Port Threads onto Temperature Sensor for Protection from Internal Transmission Parts No Modifications to Transmission Necessary Female 1/8-27 NPT Thread for Sensor Fits 1994-2007.5 Dodge Ram Cummins
Oil Filter Sandwich Adapter Quick & Easy Solution to Install Multiple Sensors to the Truck’s Oil Filter Used for Oil Pressure & Oil Temperature Sensors Features a 1”-16 Thread, (4) 1/8-27 NPT Thread Ports & Port Plugs Includes O-Ring for Leak-Free Seal Fits 1989-2018 Dodge Ram 5.9L 6.7L Cummins	Expandable Circuit Quick & Easy Way to Power Gauges Directly from the Fuse Panel Used for Constant & Switched 12 Volt Power for Gauges Includes 4 Amp Fuse for Circuit Protection

Installation Guides

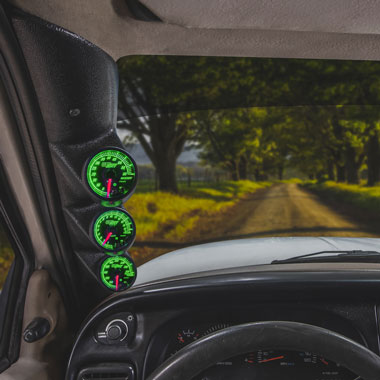

This Elite 10 Color Series Triple Gauge Package comes with product instructions that provide complete details on how to install your gauges and pod for the 1998-2002 Dodge Ram 2500/3500 24v 5.9L Cummins. An installation video is also available which provides a complete step-by-step tutorial along with useful tips on how to install this gauge package.

Watch the Installation Video

Download and Print the PDF
