Elite 10 Color Series Triple Gauge Package for 1999-2007 Ford Super Duty Power Stroke

Build a customizable GlowShift triple gauge package for any 1999-2007 Ford Super Duty Power Stroke F-250 and F-350 with either a 6.0L or 7.3L Power Stroke engine. This package features the Elite 10 Color Gauge Series, which includes 10 different solid color options and an ultra-bright analog LED gauge display. You’ll also have the choice of any 3 gauges from a wide and diverse selection, with many gauges including their required sensor. As part of this gauge package you will also have the option of a black, tan or gray triple pillar pod which can be matched to your Super Duty’s factory interior for a custom fit and finish.

Gauge Series Details

The Elite 10 Color Gauge Series includes ultra-bright LED analog gauges that feature a streamlined design with a flat gauge face, black gauge dial, magnified tinted lens and illuminated red needle. With selectable 10 color through dial lighting for the easy-to-read display, you can choose between 10 solid color options to create a custom look. The 10 solid colors include Blue, Green, Red, Yellow, White, Light Blue, Purple, Pink, Orange and Amber. Built-in stepper motor technology allows for incredibly smooth movement, resulting in extremely accurate readings. In addition to the solid color settings, you will also have (2) Color Cycle Modes which cycle through all of the solid color options. Color Fade Mode slowly navigates and fades through each of the colors. Additional features include a Color Recall capability so that your gauge will remember the last color setting used before it was turned off. Adjustable High and Low Warning functions will alert you visually or with an optional audible tone, ensuring levels are not running too high or too low. Peak Recall provides you with instant feedback on your last peak value. For even better visibility at night, there is an easy-to-use Dimming Feature which dims the gauge 30% for clearer viewing.

Elite 10 Color Series Black Gauge Dial Tinted Magnified Lens 7/8” Depth for Lens Illuminated Red Needle

Customizable Color Display Ultra-Bright LED Lighting 10 Solid Color Settings Blue, Green, Red, Yellow, White, Light Blue, Purple, Pink, Orange and Amber Color Cycle & Color Fade Modes

Nighttime Dimming Dimmer Wire Dims Gauge 30% Reduce Brightness When Driving at Night Works When your Headlights are Turned On Activate with a Simple Connection

High and Low Warning Function High and Low Readouts Set Your Preferred Levels Audible Tone or Visual Alert Easy to Program

Peak Recall Ability Peak Setting Mode Recalls Last Peak Value Quick Intuitive Feedback Optional Feature

Wiring for Installation 2’ Power Harness with Each Gauge Plug ‘n Play Connectors Gauges Daisy-Chain Together Power All 3 Gauges Thru 1

Diesel Tech Picks

Our Diesel Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your 99-07 Ford Super Duty. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with all of the information you need to get the best performance out of your diesel engine.

60 PSI Boost Reads Boost from 0 - 60 PSI 1/8-27 NPT Electronic Pressure Sensor 2' Power & 6' Sensor Wire Harness

1500° F Pyrometer EGT Reads Exhaust Temperature from 0 - 1500° Fahrenheit 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable 2' Power & 6' Sensor Wire Harnesses

Transmission Temperature Reads Transmission Temperature from 80 - 260° Fahrenheit 1/8-27 NPT Electronic Temperature Sensor 2' Power & 8' Sensor Wire Harnesses Recommended For Vehicles with Automatic Transmission

100 PSI Fuel Pressure Reads Fuel Pressure from 0 - 100 PSI 1/8-27 NPT Electronic Pressure Sensor 2' Power & 6' Sensor Wire Harnesses

Pillar Pod Details

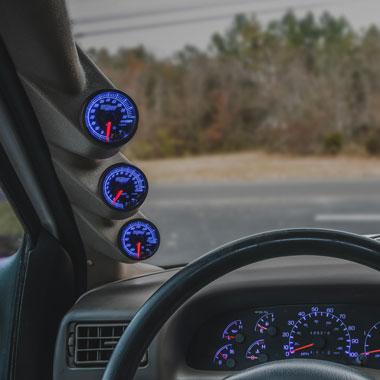

The included full size, factory matched triple pillar pod is made specifically for any 1999-2007 Ford Super Duty Power Stroke F-250 and F-350 with either a 6.0L or 7.3L Power Stroke engine. Select from black, gray or tan, and this pod can be effectively mounted to your factory A-pillar. This pillar gauge pod holds (3) 2-1/16” (52mm) gauges and is crafted from high quality ABS plastic, allowing it to withstand cracking, fading and warping. The gray and tan versions are factory color matched, and the black version can be painted using ABS plastic paint to match your factory interior for a fully customized fit and finish. Fits: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 Ford Super Duty, F-250, F-350

Holds (3) 2-1/16” (52mm) Gauges Choose Between Black, Gray or Tan Made from ABS Plastic Withstands Cracking, Fading and Warping

Overlay of Factory A-pillar Full Length Gauge Pod Deeper Gauge Sits Perfectly Enhances the Wider Bezel Gauge Feature

Push-In Fasteners Color Matched to Pod Drill to Install Easy to Install Pod

Fitment Details

1/8-27 NPT Drill & Tap Set Used for Installing EGT Probe, Boost Fittings or Boost Sensor Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT Includes Size R Drill Bit & 1/8 NPT Tap	MAP Line T-Fitting Adapter Quick & Easy Install of Boost Hose or Sensor into the 3/16” MAP Line Cut the Line, Insert the T-Fitting & Secure with Included Clamps Avoid Drilling & Tapping the Intake Manifold Female 1/8-27 NPT Thread for Fittings/Sensor Fits 1999-2002 Ford 7.3L Power Stroke Fits 2003-2007 Ford 6.0L Power Stroke	Air Intake Heater Boost Plug Adapter Quick & Easy Install of Boost Hose or Sensor to the Air Intake Remove the Restrictive Heater Plug & Thread Adapter in its Place No Drilling or Tapping Required Female 1/8-27 NPT Thread for Fittings/Sensor Fits 1999.5-2002 Ford Super Duty 7.3L Power Stroke Fits 2001-2004 GM 6.6L Duramax	Fuel Pressure Adapter for Ford 7.3L Power Stroke Quick & Easy Install of Fuel Pressure Sensor to Fuel Filter Housing No Need to Cut Factory Fuel Lines Replaces Pressure Port Fitting Features O-Ring for Leak-Free Seal Female 1/8-27 NPT Thread for Sensor Fits 1999-2002 Ford 7.3L Power Stroke
Fuel Pressure Adapter for Ford 6.0L Power Stroke Quick & Easy Install of Fuel Pressure Sensor to Fuel Filter Housing No Need to Cut Factory Fuel Lines Replaces Pressure Port Fitting Features O-Ring for Leak-Free Seal Female 1/8-27 NPT Thread for Sensor Fits 2003-2007 Ford 6.0L Power Stroke	1/2” Transmission Cooler Line T-Fitting Adapter Allows Installation of Temperature Sensor to the 1/2" Transmission Cooler Line Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal Female 1/8-27 NPT Thread on T-Fitting for Sensor	3/8” Transmission Cooler Line T-Fitting Adapter Allows Installation of Temperature Sensor to the 3/8” Transmission Cooler Line Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal Female 1/8-27 NPT Thread on T-Fitting for Sensor	Oil Filter Sandwich Adapter Quick & Easy Solution to Install Multiple Sensors to the Truck’s Oil Filter Used for Oil Pressure & Oil Temperature Sensors Features a 1-1/2"-16 Thread, (4) 1/8-27 NPT Thread Ports & Port Plugs Includes O-Ring for Leak-Free Seal Fits 1994-2003 Ford Super Duty 7.3L Power Stroke
Water Temp Adapter for Ford 6.0L Power Stroke Quick & Easy Install of Water Temp Sensor to the Engine Block Remove the Block Off Plug & Thread in the Adapter No Major Modifications Required Female 1/8-27 NPT Thread for Temp Sensor Fits 2003-2007 Ford 6.0L Power Stroke	Expandable Circuit Quick & Easy Way to Power Gauges Directly from the Fuse Panel Used for Constant & Switched 12 Volt Power for Gauges Includes 4 Amp Fuse for Circuit Protection

Instruction Options

This Elite 10 Color Series Triple Gauge Package comes with an installation guide which is available online and in print and was made specifically for any 1999-2007 Ford Super Duty Power Stroke F-250 and F-350 with either a 6.0L or 7.3L Power Stroke engine.

Watch the 7.3L Installation Video

Watch the 6.0L Installation Video

Download and Print the PDF
