Elite 10 Color Series Triple Gauge Package for 2014-2019 GMC Sierra Duramax

Build a customizable GlowShift triple gauge package for any 2014-2019 GMC Sierra 2500HD/3500HD 6.6L Duramax LML or L5P. This package features the Elite 10 Color Gauge Series, which includes 10 different solid color options and an ultra-bright analog LED gauge display. You’ll have the choice of 3 gauges from a wide and diverse selection, with many gauges including their required sensor. As part of this gauge package you will also select a black or factory color matched tan triple pillar gauge pod which replaces the factory A-pillar for a seamless fit and finish.

Gauge Series Details

The Elite 10 Color Gauge Series includes ultra-bright LED analog gauges that feature a streamlined design with a flat gauge face, black gauge dial, magnified tinted lens and illuminated red needle. With selectable 10 color through dial lighting for the easy-to-read display, you can choose between 10 solid color options to create a custom look. The 10 solid colors include Blue, Green, Red, Yellow, White, Light Blue, Purple, Pink, Orange and Amber. Built-in stepper motor technology allows for incredibly smooth movement, resulting in extremely accurate readings. In addition to the solid color settings, you will also have (2) Color Cycle Modes which cycle through all of the solid color options. Color Fade Mode slowly navigates and fades through each of the colors. Additional features include a Color Recall capability so that your gauge will remember the last color setting used before it was turned off. Adjustable High and Low Warning functions will alert you visually or with an optional audible tone, ensuring levels are not running too high or too low. Peak Recall provides you with instant feedback on your last peak value. For even better visibility at night, there is an easy-to-use Dimming Feature which dims the gauge 30% for clearer viewing.

Elite 10 Color Series Black Gauge Dial Tinted Magnified Lens 7/8” Depth for Lens Illuminated Red Needle

Customizable Color Display Ultra-Bright LED Lighting 10 Solid Color Settings Blue, Green, Red, Yellow, White, Light Blue, Purple, Pink, Orange and Amber Color Cycle & Color Fade Modes

Nighttime Dimming Dimmer Wire Dims Gauge 30% Reduce Brightness When Driving at Night Works When your Headlights are Turned On Activate with a Simple Connection

High and Low Warning Function High and Low Readouts Set Your Preferred Levels Audible Tone or Visual Alert Easy to Program

Peak Recall Ability Peak Setting Mode Recalls Last Peak Value Quick Intuitive Feedback Optional Feature

Wiring for Installation 2’ Power Harness with Each Gauge Plug ‘n Play Connectors Gauges Daisy-Chain Together Power All Gauges Thru 1

Diesel Tech Picks

Our Diesel Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your 14-19 GMC Sierra. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with all of the information you need to get the best performance out of your diesel engine.

60 PSI Boost Reads Boost from 0 - 60 PSI 1/8-27 NPT Electronic Pressure Sensor 2' Power & 6' Sensor Wire Harness

1500° F Pyrometer EGT Reads Exhaust Temperature from 0 - 1500° Fahrenheit 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable 2' Power & 6' Sensor Wire Harnesses

Transmission Temperature Reads Transmission Temperature from 80 - 260° Fahrenheit 1/8-27 NPT Electronic Temperature Sensor 2' Power & 8' Sensor Wire Harnesses Recommended For Vehicles with Automatic Transmission

30 PSI Fuel Pressure Reads Fuel Pressure from 0 - 30 PSI 1/8-27 NPT Electronic Pressure Sensor 2' Power & 6' Sensor Wire Harnesses

Pillar Pod Details

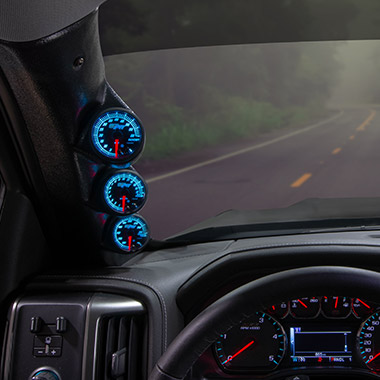

The included full size triple pillar pod is made specifically for the 2014-2019 GMC Sierra Duramax 2500HD & 3500HD with a 6.6L, LML or L5P engine. With the included hardware this pod can be effectively mounted as a full replacement of your factory A-pillar for a custom fit and factory finish. This pillar pod holds (3) 2-1/16” (52mm) gauges and is crafted from high quality ABS plastic, allowing it to withstand cracking, fading and warping. The tan version of the pod is factory color matched, and features a UV protective coating that preserves the color from exposure to sunlight so that it always matches the factory trim. The black version can be painted using ABS plastic paint to match your factory interior for a customized look. Fits: 14, 15, 16, 17, 18, 19 GMC Sierra 1500, 2500HD & 3500HD.

Holds (3) 2-1/16” (52mm) Gauges Tan or Black Triple Pillar Pod Made from ABS Plastic Withstands Cracking, Fading and Warping

Replacement of Factory A-Pillar Full Length Gauge Pod Match to Your Factory Interior Professional Fit and Finish

Bolt Included for Pod Installation Installs Through Pre-Drilled Hole on Pod Easily Mounts to Factory Location No Drilling Required

Fitment Details

1/8-27 NPT Drill & Tap Set Used for Installing EGT Probe, Boost Fittings or Boost Sensor Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT Includes Size R Drill Bit & 1/8 NPT Tap	MAP Line T-Fitting Adapter Quick & Easy Install of Boost Hose or Sensor into the 3/16” MAP Line Cut the Line, Insert the T-Fitting & Secure with Included Clamps Avoid Drilling & Tapping the Intake Manifold Female 1/8-27 NPT Thread for Fittings/Sensor	Test Port Adapter for GM Allison 1000 Quick & Easy Install of Temperature Sensor to Transmission Test Port Threads onto Temperature Sensor for Protection from Internal Transmission Parts Includes O-Ring for Leak-Free Seal No Modifications to Transmission Necessary Female 1/8-27 NPT Thread for Sensor Fits 2000-2018 Chevy Silverado/GMC Sierra	Transmission Cooler Line T-Fitting Adapter for GM Allison 1000 Allows Installation of Temperature Sensor to the 5/8” Transmission Cooler Line Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal Female 1/8-27 NPT Thread on T-Fitting for Sensor Fits 2000-2019 Chevy Silverado/GMC Sierra
3/8” Quick-Connect EFI Fuel Line Adapter Easy Install of Fuel Pressure Sensor Between Fuel Line & Fuel Rail Compatible with 3/8” Modern Electronic Fuel Injection Lines No Need to Cut Factory Fuel Lines Features 2 Female 1/8-27 NPT Threads Features Internal O-Ring for Leak-Free Seal	Fuel Filter Bleeder Screw Upgrades the Factory Plastic Bleeder Screw to Durable Billet Aluminum Machined Air Channel Helps “Bleed” Air Out of the Fuel System Diesel Fuel Rated Viton O-Ring Provides a Leak-Free Seal Fits 2001-2016 6.6L Duramax LB7, LLY, LBZ, LMM & LML	Expandable Circuit Quick & Easy Way to Power Gauges Directly from the Fuse Panel Includes (2) Micro2 & (1) Mini Expandable Circuits Used for Constant & Switched 12 Volt Power for Gauges Mini Expandable Circuit Used for Dimming Feature Includes 4 & 5 Amp Fuses for Circuit Protection Bundled Specifically for 2014-2019 Chevrolet Silverado & GMC Sierra Trucks

Installation Guides

This Elite 10 Color Series Triple Gauge Package comes with an installation guide which is available online and in print and was made specifically for the 2014-2019 GMC Sierra 2500HD/3500HD with a 6.6L Duramax Turbo Diesel LML or L5P engine. An installation video is also available which provides a complete step-by-step tutorial along with useful tips on how to install this gauge package.

Watch the Installation Video

Download and Print the PDF
