MaxTow Dual Gauge Package for 1994-1997 Dodge Ram Cummins

MaxTow's Double Vision® Series Dual Gauge Package was made for the 1994-1997 Dodge Ram 2500/3500 12 Valve Cummins. Experience complete customization when you select from 15 gauges for this 2-gauge set which comes with all required sensors. This package also includes a Dodge Ram black dual pillar pod that is extremely durable and can be mounted to your existing A-pillar. With the innovative Double Vision® Gauge Series, you’ll experience both digital and analog readouts on your choice of several unique ultra-bright LED displays.

Gauge Series Details

Multiple color and style combinations are available for complete customization of your high-performance 2-1/16” (52mm) gauges. The Double Vision® Gauge Series gives you the classic look of an analog gauge with an illuminated red needle while simultaneously displaying an easy-to-read digital numeric readout. Choose from either a black or white gauge face and a blue or green LED display. These gauges feature stepper motor technology which allows for smooth needle movement and extremely accurate gauge readings. You’ll also have the option of three daytime and three nighttime dimming modes with three customizable brightness settings (low, medium, high) for each. Choose from a variety of different gauge types to fully customize your gauge package. MaxTow also includes all sensors, wiring, mounting hardware and a one-year limited warranty. Get ready to hit the road and Tow to the Max®!

High Performance Gauges Gauges Measure 2-1/16” (52mm) Depth Measures 1-5/16” Magnified Lens Power and Sensor Wires Mounting Hardware

Double Vision® Gauge Series Digital and Analog Readings Black or White Gauge Face Ultra-Bright Blue or Green LED Display Illuminated Red Needle Stepper Motor Technology

6 Dimming Modes Daytime and Nighttime Dimming Modes 3 Customizable Brightness Settings for Each Continue to Easily View Readings Select with Button on Gauge Face Gauge Displays Last Setting When Reactivated

Plug and Play Connectivity Plug and Play Connectors on Power & Sensor Wires Both Wires Easily Snap Into the Back of the Gauge Extended Wire Lengths For Installation Quick and Easy Install Even Faster Readouts with an Electronic Gauge

Diesel Tech Picks

Our Diesel Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your Dodge Ram Cummins. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with all of the information you need to get the best performance out of your truck.

60 PSI Boost Reads Boost from 0 - 60 PSI 1/8-27 NPT Electronic Pressure Sensor 9' Sensor & 5’ Power Wire Harnesses

1500° F Pyrometer EGT Reads Exhaust Temperature from 0 - 1500° Fahrenheit Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable Includes 5' Power & 6' Sensor Wire Harnesses Waterproof EGT Probe to Sensor Harness Connector

Transmission Temperature Reads Transmission Temperature from 80 - 260° Fahrenheit 1/8-27 NPT Electronic Temperature Sensor 9' Sensor & 5' Power Harnesses Waterproof Sensor to Sensor Harness Connector

30 PSI Fuel Pressure Reads Fuel Pressure from 0 - 30 PSI 1/8-27 NPT Electronic Fuel Pressure Sensor 9' Sensor & 5' Power Wire Harnesses

Pillar Pod Details

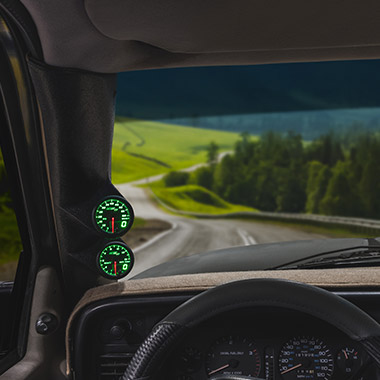

The included full size, factory matched dual pillar pod can be mounted to the factory A-pillar of the 1994-1997 Dodge Ram 2500/3500 12 Valve Cummins. This pillar gauge pod holds (2) 2-1/16” (52mm) gauges and is crafted from high quality ABS plastic, allowing it to withstand cracking, fading and warping. It can also be painted using ABS plastic paint to match your factory interior for a fully customized fit and finish. Fits: 94, 95, 96, 97 Dodge Ram 2500 & 3500.

Holds (2) 2-1/16” (52mm) Gauges Black Dual Pillar Pod Made from ABS Plastic Withstands Cracking, Fading and Warping

Overlay of Factory A-Pillar Full Length Gauge Pod Match to Your Factory Interior Professional Fit and Finish

Push-In Fasteners Color Matched to Pod Drill to Install Easy to Install Pod

Fitment Details

1/8-27 NPT Drill & Tap Set Used for Installing EGT Probe, Boost Fittings or Boost Sensor Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT Includes Size R Drill Bit & 1/8 NPT Tap	Banjo Bolt Adapter for 12 Valve Cummins Easy Install of Fuel Pressure Sensor to Injection Pump Replaces the Factory Banjo Bolt Includes 2 Crush Washers for Secure Fit Female 1/8-27 NPT Thread for Sensor Fits 1994-1998 Dodge Ram 12 Valve P Pump Cummins	Snubber Valve Regulates, Normalizes & Eliminates Fuel Pressure Spikes During Startup Protects Pressure Sensor from Spikes/Water Hammer Effect Installs Between Fuel Filter Housing & Sensor High-Quality Brass Design – Built to Last Male & Female 1/8-27 NPT Threads	Big Line Kit for 1994-1998 Dodge Ram 12-Valve P-Pump Cummins Allows Installation of Fuel Pressure Sensor into Factory Fuel System Replaces the Restrictive Factory Line with 3/8” Rubber Hose Between Fuel Filter Housing & Injection P-Pump Includes 3/8” T-Fitting, 90° Fittings, AN Adapters & Hose Clamps Female 1/8-27 NPT Thread Adapter on T-Fitting for Sensor Fits 1994-1998 Dodge Ram 12-Valve P-Pump Cummins
Test Port Adapter for 47RE & 48RE Quick & Easy Install of Temperature Sensor to Transmission Test Port Threads onto Temperature Sensor for Protection from Internal Transmission Parts No Modifications to Transmission Necessary Female 1/8-27 NPT Thread for Sensor Fits 1994-2007.5 Dodge Ram Cummins	Coolant Sensor T-Fitting Adapter for 12-Valve Cummins Quick & Easy Installation of the Water Temperature Sensor Connects to the Thermostat Bypass Hose Cut the Line, Insert the T-Fitting & Secure with Included Clamps Female 1/8-27 NPT Thread for Sensor Fits 1994-1998 Dodge Ram 12-Valve Cummins	Oil Filter Sandwich Adapter Quick & Easy Solution to Install Multiple Sensors to the Truck’s Oil Filter Used for Oil Pressure & Oil Temperature Sensors Features a 1”-16 Thread, (4) 1/8-27 NPT Thread Ports & Port Plugs Includes O-Ring for Leak-Free Seal Fits 1989-2018 Dodge Ram 5.9L 6.7L Cummins	Expandable Circuit Quick & Easy Way to Power Gauges Directly from the Fuse Panel Used for Constant & Switched 12 Volt Power for Gauges Includes 4 Amp Fuse for Circuit Protection
MaxTow 2 Gauge Power Wire Harness Used to Easily Power 2 Gauges from 1 Harness that Connects to Power Daisy Chain Feature with Each Connector Plugging into Each Gauge Prevents Wire Clutter in Fuse Panel, Under the Hood or in the Pillar Pod 6-1/2’ of Total Wire

Installation Guides

This MaxTow Double Vision Series Dual Gauge Package comes with an installation guide which is available online and in print for the 1994-1997 Dodge Ram 2500/3500 12v Cummins. An installation video is also available which provides a complete step-by-step tutorial along with useful tips on how to install this gauge package.

Watch the Installation Video

Download and Print the PDF
