MaxTow Dual Gauge Package for 2010-2018 Dodge Ram Cummins

MaxTow's Double Vision® Series Dual Gauge Package was made for the 2010-2018 Dodge Ram 2500/3500 6.7L Cummins. Experience complete customization when you select from 15 gauges for this 2-gauge set which comes with all required sensors. This package also includes a taupe Dodge Ram full size dual pillar pod. With the innovative Double Vision® Gauge Series, you’ll experience both digital and analog readouts on your choice of several unique ultra-bright LED displays.

Gauge Series Details

Multiple color and style combinations are available for complete customization of your high-performance 2-1/16” (52mm) gauges. The Double Vision® Gauge Series gives you the classic look of an analog gauge with an illuminated red needle while simultaneously displaying an easy-to-read digital numeric readout. Choose from either a black or white gauge face and a blue or green LED display. These gauges feature stepper motor technology which allows for smooth needle movement and extremely accurate gauge readings. You’ll also have the option of three daytime and three nighttime dimming modes with three customizable brightness settings (low, medium, high) for each. Choose from a variety of different gauge types to fully customize your gauge package. MaxTow also includes all sensors, wiring, mounting hardware and a one-year limited warranty. Get ready to hit the road and Tow to the Max®!

High Performance Gauges Gauges Measure 2-1/16” (52mm) Depth Measures 1-5/16” Magnified Lens Power and Sensor Wires Mounting Hardware

Double Vision® Gauge Series Digital and Analog Readings Black or White Gauge Face Ultra-Bright Blue or Green LED Display Illuminated Red Needle Stepper Motor Technology

6 Dimming Modes Daytime and Nighttime Dimming Modes 3 Customizable Brightness Settings for Each Continue to Easily View Readings Select with Button on Gauge Face Gauge Displays Last Setting When Reactivated

Plug and Play Connectivity Plug and Play Connectors on Power & Sensor Wires Both Wires Easily Snap Into the Back of the Gauge Extended Wire Lengths For Installation Quick and Easy Install Even Faster Readouts with an Electronic Gauge

Diesel Tech Picks

Our Diesel Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your Dodge Ram Cummins. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with all of the information you need to get the best performance out of your truck.

60 PSI Boost Reads Boost from 0 - 60 PSI 1/8-27 NPT Electronic Pressure Sensor 9' Sensor & 5’ Power Wire Harnesses

1500° F Pyrometer EGT Reads Exhaust Temperature from 0 - 1500° Fahrenheit Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable Includes 5' Power & 6' Sensor Wire Harnesses Waterproof EGT Probe to Sensor Harness Connector

Transmission Temperature Reads Transmission Temperature from 80 - 260° Fahrenheit 1/8-27 NPT Electronic Temperature Sensor 9' Sensor & 5' Power Harnesses Waterproof Sensor to Sensor Harness Connector

30 PSI Fuel Pressure Reads Fuel Pressure from 0 - 30 PSI 1/8-27 NPT Electronic Fuel Pressure Sensor 9' Sensor & 5' Power Wire Harnesses

Pillar Pod Details

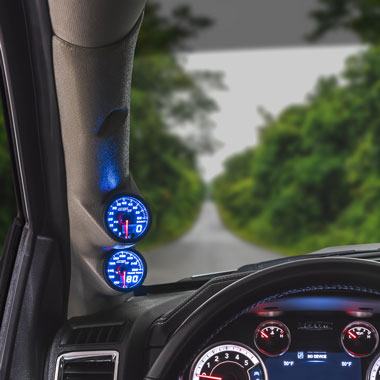

The included full size, factory matched dual pillar pod is made specifically for the 2010-2018 Dodge Ram 2500/3500 6.7L Cummins. This taupe pillar gauge pod holds (2) 2-1/16” (52mm) gauges and is crafted from high quality ABS plastic, allowing it to withstand cracking, fading and warping. Fits: 10, 11, 12, 13, 14, 15, 16, 17, 18 Dodge Ram 2500 & 3500.

Holds (2) 2-1/16” (52mm) Gauges Taupe Dual Pillar Pod Made from ABS Plastic Withstands Cracking, Fading and Warping

Replacement of Factory A-Pillar Full Length Gauge Pod Match to Your Factory Interior Professional Fit and Finish

Bolt Included for Pod Installation Installs Through Pre-Drilled Hole on Pod Easily Mounts to Factory Location No Drilling Required

Fitment Details

1/8-27 NPT Drill & Tap Set Used for Installing EGT Probe, Boost Fittings or Boost Sensor Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT Includes Size R Drill Bit & 1/8 NPT Tap	Boost Bolt Adapter for 6.7L Cummins Quick & Easy Install of Boost Hose or Sensor into the Intake Manifold Replaces the Manifold Horn Bolt No Drilling & Tapping Required Female 1/8-27 NPT Thread for Fittings/Sensor Fits 2006.5-2018 6.7L Cummins	Snubber Valve Regulates, Normalizes & Eliminates Fuel Pressure Spikes During Startup Protects Pressure Sensor from Spikes/Water Hammer Effect Installs Between Fuel Filter Housing & Sensor High-Quality Brass Design – Built to Last Male & Female 1/8-27 NPT Threads	Big Line Kit for 2010-2018 Dodge Ram 6.7L Cummins Allows Installation of Fuel Pressure Sensor into the Injection Pump Inlet Replaces the Restrictive Factory Hard Line with 3/8” Rubber Hose Between Fuel Filter Housing & Injection Pump Includes 3/8” T-Fitting, Injection Pump Connector, Fuel Filter Housing Quick-Connector, Push-On Hose Connectors & Hose Clamps Female 1/8-27 NPT Thread Adapter on T-Fitting for Sensor Fits 2010-2018 Dodge Ram 6.7L Cummins
1/2” Transmission Cooler Line T-Fitting Adapter Allows Installation of Temperature Sensor to the 1/2" Transmission Cooler Line Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal Female 1/8-27 NPT Thread on T-Fitting for Sensor Required When Installing Sensor to 2007.5+ Dodge Ram Cummins Required When Installing Sensor to 68RE & 68RFE Transmissions	Transmission Cooler Thermal Bypass Adapter Allows for Easy Installation of Temp Sensor to the Transmission Cooler Feed Line Avoid Cutting Into Factory Lines - No Permanent Modifications Required Includes (1) Adapter Unit, (2) 1/8-27 NPT Ports, (2) Quick-Disconnect Fittings & (1) 1/8-27 NPT Port Plug Fits 2013+ Dodge Ram 68RFE Transmissions	Oil Filter Sandwich Adapter Quick & Easy Solution to Install Multiple Sensors to the Truck’s Oil Filter Used for Oil Pressure & Oil Temperature Sensors Features a 1”-16 Thread, (4) 1/8-27 NPT Thread Ports & Port Plugs Includes O-Ring for Leak-Free Seal Fits 1989-2018 Dodge Ram 5.9L 6.7L Cummins	Rail Pressure Pigtail Harness Quick & Easy Installation Without Having to Splice or Cut into Factory Wires Connects Directly to Common Rail Pressure Sensor Plug & Play Fits 2003-2012 5.9L & 6.7L Cummins
Expandable Circuit Quick & Easy Way to Power Gauges Directly from the Fuse Panel Used for Constant & Switched 12 Volt Power for Gauges Includes Fuse for Circuit Protection Mini Expandable Circuit - Compatible with 2010-2012 Dodge Ram Micro2 Expandable Circuit - Compatible with 2013-2018 Dodge Ram	MaxTow 2 Gauge Power Wire Harness Used to Easily Power 2 Gauges from 1 Harness that Connects to Power Daisy Chain Feature with Each Connector Plugging into Each Gauge Prevents Wire Clutter in Fuse Panel, Under the Hood or in the Pillar Pod 6-1/2’ of Total Wire

Installation Guides

This MaxTow Double Vision Series Full Size Dual Gauge Package comes with an installation guide which is available online and in print and was made specifically for the 2010-2018 Dodge Ram 24v 6.7L Cummins. An installation video is also available which provides a complete step-by-step tutorial along with useful tips on how to install this gauge package.

Watch the Installation Video

Download and Print the PDF
