MaxTow Match Triple Gauge Package for 2003-2009 Dodge Ram Cummins

SKU:
MT-363G-FMD3-PKG
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

$442.99
$369.99
(You save $73.00 )

UPC:
842559134023
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

Match your 3rd Gen Cummins Gauge Cluster with MaxTow Match 3rd Gen Cummins Triple Gauge Packages for any 2003-2009 Dodge Ram 2500 & 3500 24 Valve diesel truck. Experience full customization with a gauge package combining a factory fitted color matched Taupe Triple Gauge Dodge Ram Pillar Pod and (3) 2-1/16” (52mm) MaxTow Match 3rd Gen Cummins Gauges. Round out your custom gauge package with optional accessories including adapters and wiring kits. Get ready to hit the road and Tow to the Max®


Gauge Series Details

MaxTow Match 3rd Gen Cummins Gauge Series Features MaxTow Match 3rd Gen Cummins Gauge Series Features

MaxTow Match 3rd Gen Cummins Series Gauges feature a white gauge dial, clear flat lens, and matching faceplate design including a matching needle cap like the factory 3rd Gen Cummins Gauge Cluster. View readings on an ultra-bright Double Vision analog and digital LED display. The analog display has factory matched teal backlighting and an illuminated red needle equipped for smooth needle movement and accurate readings. Take digital numerical readouts on the corresponding teal digital display at the same time.

MaxTow Match 3rd Gen Cummins Gauge and Parts Schematic MaxTow Match 3rd Gen Cummins Gauge and Parts Schematic

3rd Gen Cummins Gauges come complete with sensor and power wiring harnesses. For gauges that require a sensor, a 1/8-27 NPT electronic sensor is also included. The sensor and power harnesses feature extended lengths for more flexibility during installation. Both harnesses effortlessly connect to the back of the Dodge Ram Gauges by utilizing Plug and Play connectivity. Mounting brackets and mounting hardware are provided in addition to step-by-step installation instructions.


Factory Spec Styling

MaxTow Match Gauge Comparison to 3rd Gen Cummins Factory Dashboard Cluster

The MaxTow Match Series features a line of gauges designed specifically for the 3rd Gen Cummins which are virtually identical to the look of your factory 3rd Gen Cummins Gauge Cluster. Add aftermarket 5.9 Cummins and 6.7 Cummins Gauges to the Dodge Ram A-pillar for the ultimate monitoring experience. MaxTow Match 3rd Gen Cummins Gauges deliver an OEM style that enhances the interior of any 2003-2009 Dodge Ram 24v 2500 & 3500 while accurately tracking critical engine readings.


Diesel Tech Picks

Our Diesel Techs have years of experience when it comes to choosing the right gauges for your 3rd Generation Dodge Ram. Here you’ll find their top choices based on performance, reliability, and how efficient these gauges will be in providing you with responsive and accurate feedback on your 5.9 Cummins and 6.7 Cummins diesel engine. You’ll have everything needed for monitoring to ensure that your Ram 2500 or 3500 continues to run optimally for years to come.

60 PSI Boost Gauge
60 PSI Boost
  • Reads Boost from 0 - 60 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 5’ Power Wire Harnesses
1500° F Pyrometer EGT Gauge
1500° F Pyrometer EGT
  • Reads Exhaust Temperature from 0 - 1500° Fahrenheit
  • Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
  • Includes 5' Power & 6' Sensor Wire Harnesses
  • Waterproof EGT Probe to Sensor Harness Connector

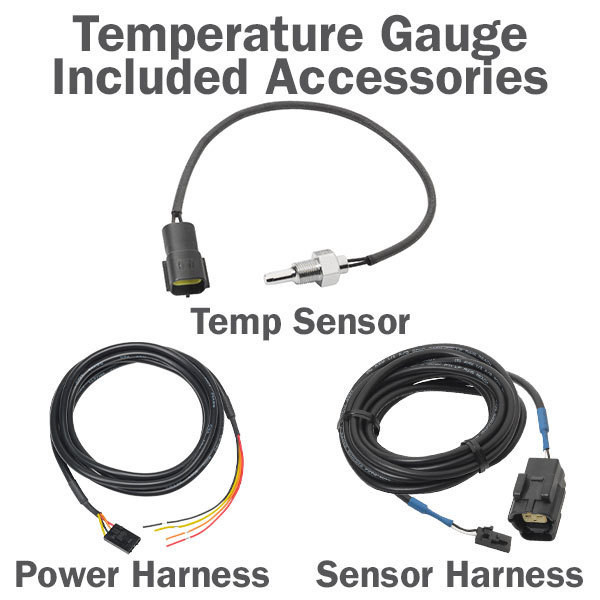

Transmission Temperature Gauge
Transmission Temperature
  • Reads Transmission Temperature from 80 - 260° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 9' Sensor & 5' Power Harnesses
  • Waterproof Sensor to Sensor Harness Connector
30 PSI Fuel Pressure
30 PSI Fuel Pressure
  • Reads Fuel Pressure from 0 - 30 PSI
  • 1/8-27 NPT Electronic Fuel Pressure Sensor
  • 9' Sensor & 5' Power Wire Harnesses

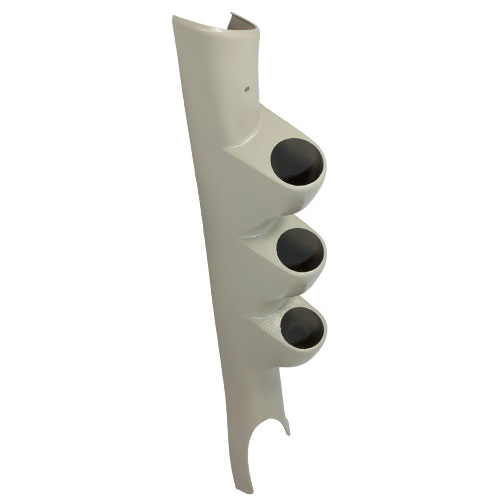

Pillar Pod Details

The Dodge Ram A Pillar Gauge Pod is made specifically for any 2003-2009 3rd Gen Ram 2500 & 3500 with a 5.9 Cummins and 6.7 Cummins. This triple gauge pillar pod is factory fitted, featured in OEM factory color matched taupe and replaces the factory A-pillar to hold (3) 2-1/16” (52mm) gauges. Each 3rd Generation Cummins Gauge Pod is crafted using premium quality ABS plastic to withstand cracking, fading and warping. Fits: 03, 04, 05, 06, 07, 08, 09 Dodge Ram 24 Valve.

Pillar Pods
  • Factory Color Matched Taupe Triple Pillar Pod
  • Holds (3) 2-1/16” (52mm) Gauges
  • Crafted from ABS Plastic to Be Extremely Durable
  • UV Coating Protects Color of the Pod from Sunlight

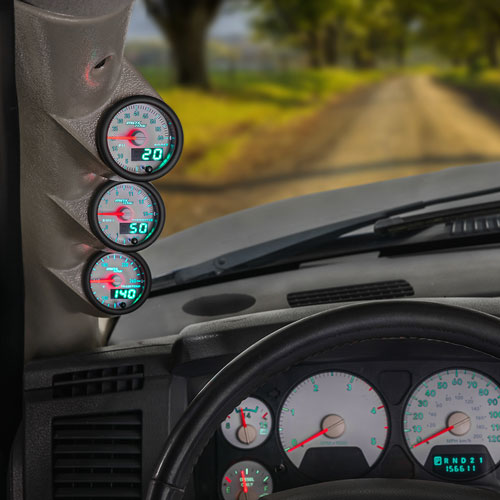

Pillar Pod Installed
  • Factory Fitted to 2003-2009 Ram Full Size Trucks
  • Replaces the Factory A-Pillar
  • Quick-Glance Readings from an Optimal Location
  • Ultra-Bright LED Gauges Enhance Your Dodge Ram’s Interior
Pillar Pod Hardware
  • Mounting Bolt Included for Pod Installation to Factory Location
  • Bolt Installs Through Pre-Drilled Hole on Pod
  • Secure Fit to the Factory A-Pillar Location
  • No Drilling or Permanent Truck Modifications Required

Fitment Details

Made Specifically for the 3rd Gen Cummins

Year Make Model Engine
2003 Dodge Ram, 2500, 3500 24 Valve 5.9L Cummins
2004 Dodge Ram, 2500, 3500 24 Valve 5.9L Cummins
2005 Dodge Ram, 2500, 3500 24 Valve 5.9L Cummins
2006 Dodge Ram, 2500, 3500 24 Valve 5.9L & 6.7L Cummins
2007 Dodge Ram, 2500, 3500 24 Valve 5.9L & 6.7L Cummins
2008 Dodge Ram, 2500, 3500 24 Valve 5.9L & 6.7L Cummins
2009 Dodge Ram, 2500, 3500 24 Valve 5.9L & 6.7L Cummins

Cummins is a registered trademark of Cummins Inc. This product is not designed, produced or manufactured by Cummins Inc. GlowShift Gauges, LLC is not any way, shape or form affiliated with Cummins Inc.

1/8-27 NPT Drill & Tap Set
1/8-27 NPT Drill & Tap Set
  • Used for Installing EGT Probe, Boost Fittings or Boost Sensor
  • Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT
  • Includes Size R Drill Bit & 1/8 NPT Tap
Boost Bolt Adapter for 5.9L Cummins
Boost Bolt Adapter for 5.9L Cummins
  • Quick & Easy Install of Boost Hose or Sensor into the Intake Manifold
  • Replaces the Manifold Horn Bolt
  • No Drilling & Tapping Required
  • Female 1/8-27 NPT Thread for Fittings/Sensor
  • Fits 1998.5-2006 5.9L Cummins
Boost Bolt Adapter for 6.7L Cummins
Boost Bolt Adapter for 6.7L Cummins
  • Quick & Easy Install of Boost Hose or Sensor into the Intake Manifold
  • Replaces the Manifold Horn Bolt
  • No Drilling & Tapping Required
  • Female 1/8-27 NPT Thread for Fittings/Sensor
  • Fits 2006.5-2018 6.7L Cummins
Banjo Bolt Adapter for 24 Valve Cummins
Banjo Bolt Adapter for 24 Valve Cummins
  • Easy Install of Fuel Pressure Sensor to Fuel Filter Housing
  • Replaces the Factory Banjo Bolt
  • Includes 2 Crush Washers for Secure Fit
  • Female 1/8-27 NPT Thread for Sensor
  • Fits 1998-2002 Dodge Ram 24 Valve Cummins
Snubber Valve
Snubber Valve
  • Regulates, Normalizes & Eliminates Fuel Pressure Spikes During Startup
  • Protects Pressure Sensor from Spikes/Water Hammer Effect
  • Installs Between Fuel Filter Housing & Sensor
  • High-Quality Brass Design – Built to Last
  • Male & Female 1/8-27 NPT Threads
Banjo Bolt + Snubber Valve Combo for 24 Valve Cummins
Banjo Bolt + Snubber Valve Combo for 24 Valve Cummins
  • Easy Install of Fuel Pressure Sensor to Fuel Filter Housing
  • All-in-One Design – Less Chance of Leaks Between Fittings
  • Snubber Valve Protects Pressure Sensor from Spikes/Water Hammer Effect
  • Replaces the Factory Banjo Bolt
  • Includes 2 Crush Washers for Secure Fit
  • Female 1/8-27 NPT Thread for Sensor
  • Fits 1998.5-2002 Dodge Ram 24 Valve Cummins
Big Line Kit for 1998.5-2007 Dodge Ram 5.9L Cummins
Big Line Kit for 1998.5-2007 Dodge Ram 5.9L Cummins
  • Allows Installation of Fuel Pressure Sensor into Factory Fuel System
  • Replaces the Restrictive Factory Line with 3/8” Rubber Hose Between Fuel Filter Housing & Injection Pump
  • Includes 3/8” T-Fitting, 90° Fittings, AN Adapters & Hose Clamps
  • Female 1/8-27 NPT Thread Adapter on T-Fitting for Sensor
  • Fits 1998.5-2007 Dodge Ram 5.9L Cummins
Big Line Kit for 2007.5-2009 Dodge Ram 6.7L Cummins
Big Line Kit for 2007.5-2009 Dodge Ram 6.7L Cummins
  • Allows Installation of Fuel Pressure Sensor into Factory Fuel System
  • Replaces the Restrictive Factory Line with 3/8” Rubber Hose Between Fuel Filter Housing & Injection Pump
  • Includes 3/8” T-Fitting, Injection Pump Connectors, Push-On Hose Connectors & Hose Clamps
  • Female 1/8-27 NPT Thread Adapter on T-Fitting for Sensor
  • Fits 2007.5-2009 Dodge Ram 6.7L Cummins
Test Port Adapter for 47RE & 48RE
Test Port Adapter for 47RE & 48RE
  • Quick & Easy Install of Temperature Sensor to Transmission Test Port
  • Threads onto Temperature Sensor for Protection from Internal Transmission Parts
  • No Modifications to Transmission Necessary
  • Female 1/8-27 NPT Thread for Sensor
  • Fits 1994-2007.5 Dodge Ram Cummins
1/2 Transmission Cooler Line T-Fitting Adapter
1/2” Transmission Cooler Line T-Fitting Adapter
  • Allows Installation of Temperature Sensor to the 1/2" Transmission Cooler Line
  • Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal
  • Female 1/8-27 NPT Thread on T-Fitting for Sensor
  • Required When Installing Sensor to 2007.5+ Dodge Ram Cummins
  • Required When Installing Sensor to 68RE & 68RFE Transmissions
Oil Filter Sandwich Adapter
Oil Filter Sandwich Adapter
  • Quick & Easy Solution to Install Multiple Sensors to the Truck’s Oil Filter
  • Used for Oil Pressure & Oil Temperature Sensors
  • Features a 1”-16 Thread, (4) 1/8-27 NPT Thread Ports & Port Plugs
  • Includes O-Ring for Leak-Free Seal
  • Fits 1989-2018 Dodge Ram 5.9L 6.7L Cummins
18ft Pressure Sensor Harness
18ft Pressure Sensor Harness
  • Extends the Length of 9’ Harness Included with Gauge to 18’
  • Commonly Used on Trucks with Aftermarket Lift Pump Installed
  • Plug & Play
Rail Pressure Pigtail Harness
Rail Pressure Pigtail Harness
  • Quick & Easy Installation Without Having to Splice or Cut into Factory Wires
  • Connects Directly to Common Rail Pressure Sensor
  • Plug & Play
  • Fits 2003-2012 5.9L & 6.7L Cummins
Expandable Circuit
Expandable Circuit
  • Quick & Easy Way to Power Gauges Directly from the Fuse Panel
  • Used for Constant & Switched 12 Volt Power for Gauges
  • Includes 4 Amp Fuse for Circuit Protection
MaxTow 3 Gauge Power Wire Harness
MaxTow 3 Gauge Power Wire Harness
  • Used to Easily Power All 3 Gauges from 1 Harness that Connects to Power
  • Daisy Chain Feature with Each Connector Plugging into Each Gauge
  • Prevents Wire Clutter in Fuse Panel, Under the Hood or in the Pillar Pod
  • 6-1/2’ of Total Wire
60 PSI Boost 1500° F Pyrometer EGT Transmission Temperature 30 PSI Fuel Pressure

Installation Guides

MaxTow Match 3rd Gen Cummins Series Triple Gauge Packages include instructions that provide complete detail on how to install 3rd Gen Cummins Gauges and a Cummins Gauge Pod for the 2003-2009 Dodge Ram 5.9 Cummins and 6.7 Cummins 24v 2500 & 3500. You can also view installation videos which include step-by-step tutorials and useful tips on how to install many MaxTow products.

Watch the Installation Video
Download and Print the PDF 03 - 09 Dodge Ram Cummins Install Guide
Gauge Types

Select Your Gauges

Choose gauges from the several different gauge types available for your MaxTow Match 3rd Gen Cummins Quad Gauge and Pod Package. With 5.9 Cummins Gauges and 6.7 Cummins Gauges made to monitor a wide range of key engine readouts, MaxTow is sure to have the versions you’re looking for to complete this customizable package.

Tech Pick
60 PSI Boost
60 PSI Boost
  • Reads Boost from 0 - 60 PSI
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9' Sensor & 5’ Power Wire Harnesses
Tech Pick
1500° F Pyrometer EGT
1500° F Pyrometer EGT
  • Reads Exhaust Temperature from 0 - 1500° Fahrenheit
  • Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
  • Includes 5' Power & 6' Sensor Wire Harnesses
  • Waterproof EGT Probe to Sensor Harness Connector
Tech Pick
2200° F Exhaust Gas Temperature
2200° F Exhaust Gas Temperature
  • Reads Exhaust Temperature from 200 - 2200° Fahrenheit
  • Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable
  • Includes 5' Power & 6' Sensor Wire Harnesses
  • Waterproof EGT Probe to Sensor Harness Connector
Tech Pick
30 PSI Fuel Pressure
30 PSI Fuel Pressure
  • Reads Fuel Pressure from 0 - 30 PSI
  • 1/8-27 NPT Electronic Fuel Pressure Sensor
  • 9' Sensor & 5' Power Wire Harnesses
Tech Pick
Transmission Temperature
Transmission Temperature
  • Reads Transmission Temperature from 80 - 260° Fahrenheit
  • 1/8-27 NPT Electronic Temperature Sensor
  • 9' Sensor & 5' Power Harnesses
  • Waterproof Sensor to Sensor Harness Connector
Tech Pick
Rail Pressure
Rail Pressure
  • Reads Fuel Rail Pressure from 0 - 30,000 PSI
  • 9' Sensor & 5' Power Wire Harnesses
  • Compatible with 2004-2018 Dodge Ram 5.9L & 6.7L Cummins Engines
Add-Ons

Optional Installation Accessories

Looking for an adapter that helps to simplify the install process? Or maybe you need a little more slack as you’re setting up your gauge kit. GlowShift carries a wide variety of accessories to help with the installation process for your gauge package. Choose from a diverse selection of adapters, wiring harnesses and much more that will cover everything you need and make the process even easier as you install your gauges.

Instructions
