MaxTow Match Triple Gauge Package for 2010-2018 Dodge Ram Cummins

Monitor for peak engine efficiency with MaxTow Match 4th Gen Cummins Triple Gauge Packages for any 2010-2018 Dodge Ram 2500 & 3500 24 Valve diesel truck. Experience full customization with a gauge package combining a factory fitted 4th Gen Cummins Gauge Pod and (3) 2-1/16” (52mm) MaxTow Match 4th Gen Cummins Gauges that deliver factory spec styling to match the gauges on your factory instrument panel. Round out your custom gauge package with optional gauge installation accessories including adapters and wiring kits that make installation even easier. So get ready to hit the road and Tow to the Max®!

Gauge Series Details

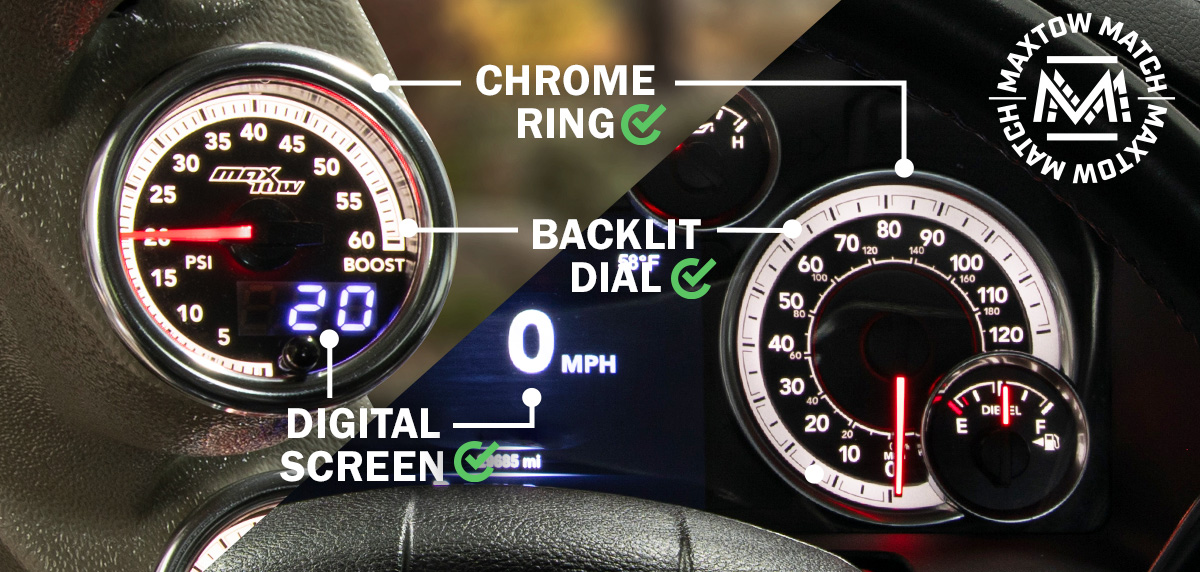

MaxTow Match 4th Gen Cummins Series Gauges deliver factory spec styling with a black gauge dial, clear flat lens and chrome trim ring to match factory gauges. View readings on a Double Vision dual analog and digital LED display. The analog display has white backlighting and an illuminated red needle with stepper motor technology that delivers exceptionally smooth needle movement and extremely accurate readings. At the same time take digital numerical readouts on the corresponding white digital display.

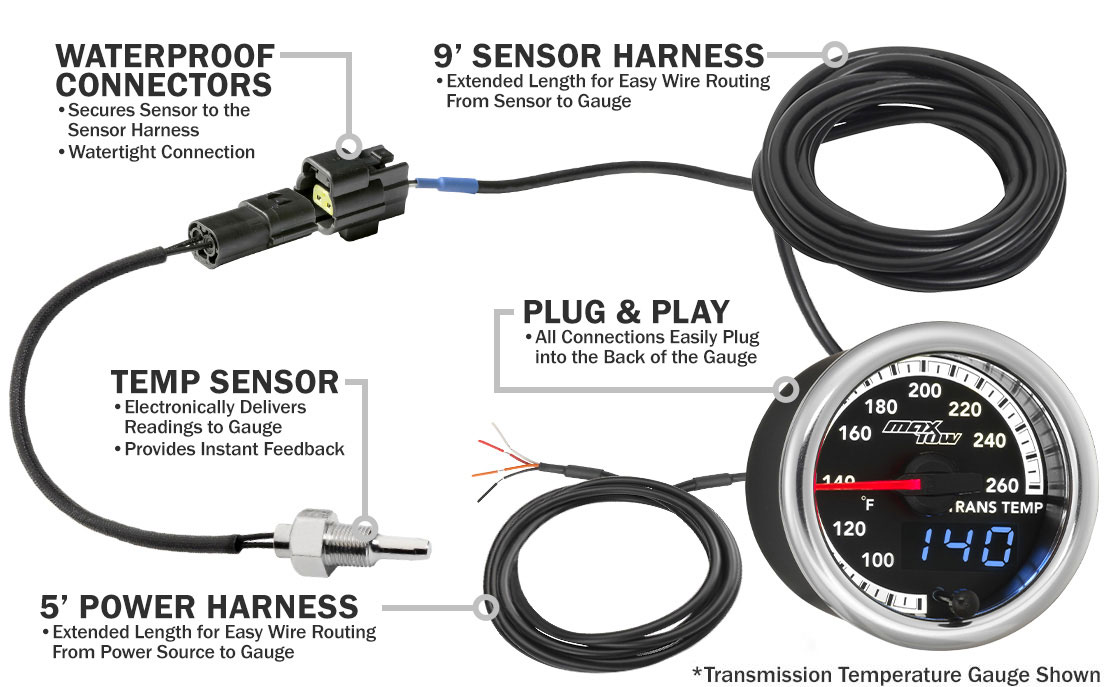

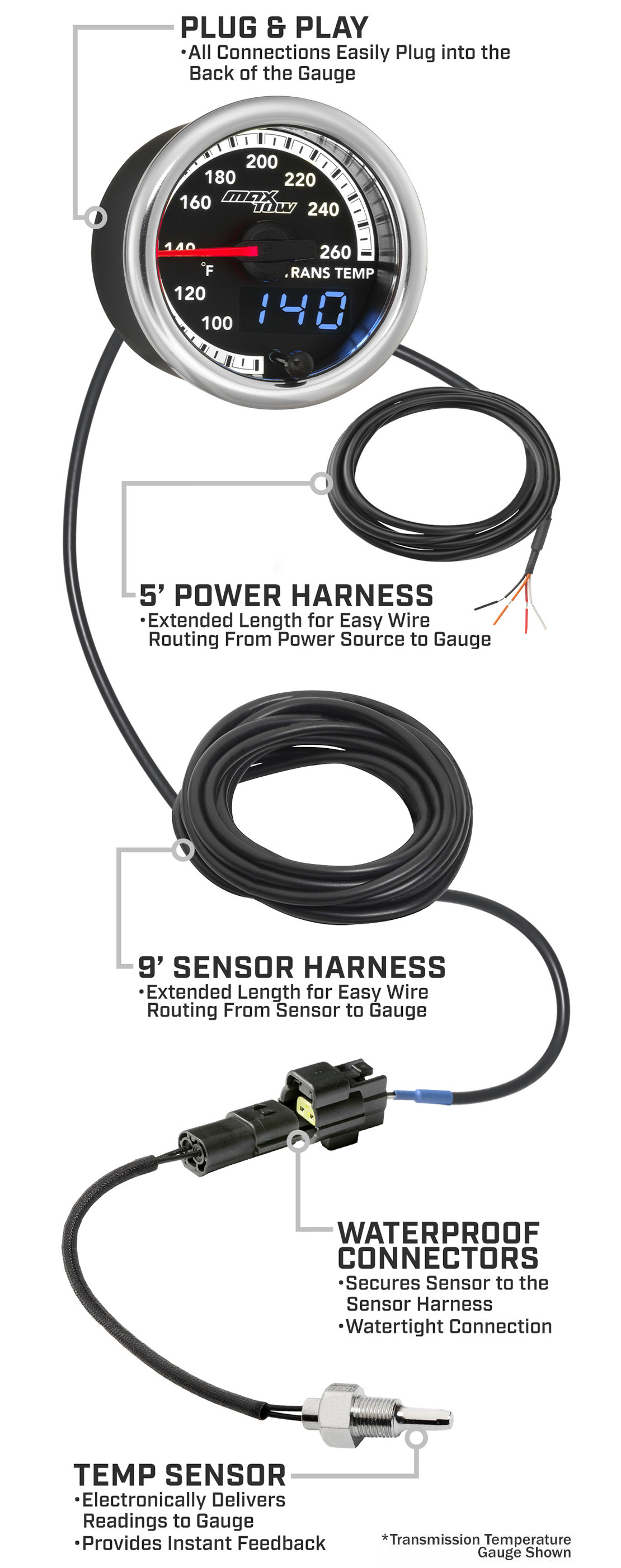

4th Gen Cummins gauges come complete with sensor and power wiring harnesses. For gauges that require a sensor, a 1/8-27 NPT electronic sensor is also included. The sensor and power harnesses feature extended lengths for more flexibility during installation. Both harnesses easily connect to the back of the gauge utilizing effortless Plug and Play connectivity. Mounting brackets and mounting hardware are provided in addition to installation instructions that walk you through the entire process.

Factory Spec Styling

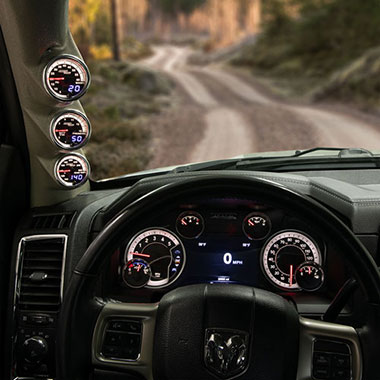

The MaxTow Match Series was designed specifically for the 4th Gen Cummins with a line of gauges that are virtually identical to the look of your factory dashboard. Add aftermarket 6.7 Cummins gauges to your Dodge Ram’s A-pillar for the ultimate monitoring experience. MaxTow Match 4th Gen Cummins gauges deliver an OEM style which enhances the interior of any 2010-2018 Dodge Ram 2500 & 3500 while accurately tracking critical engine readings.

Diesel Tech Picks

Our Diesel Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your Dodge Ram Cummins. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with all of the information you need to get the best performance out of your truck.

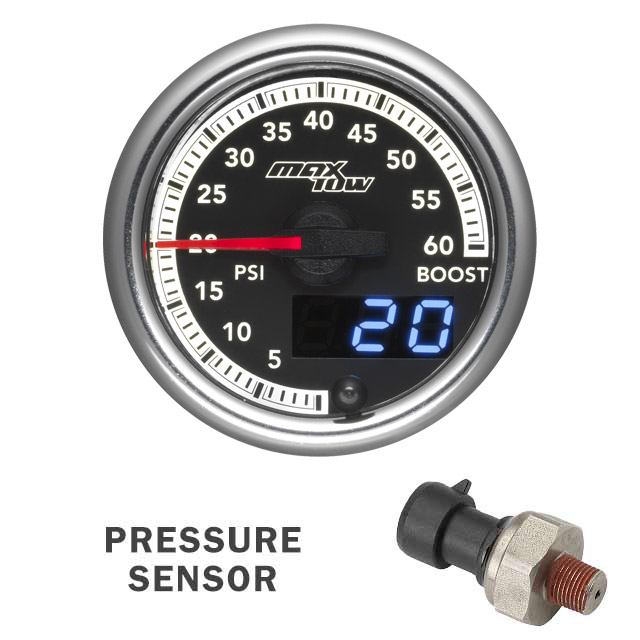

60 PSI Boost Reads Boost from 0 - 60 PSI 1/8-27 NPT Electronic Pressure Sensor 9' Sensor & 5’ Power Wire Harnesses

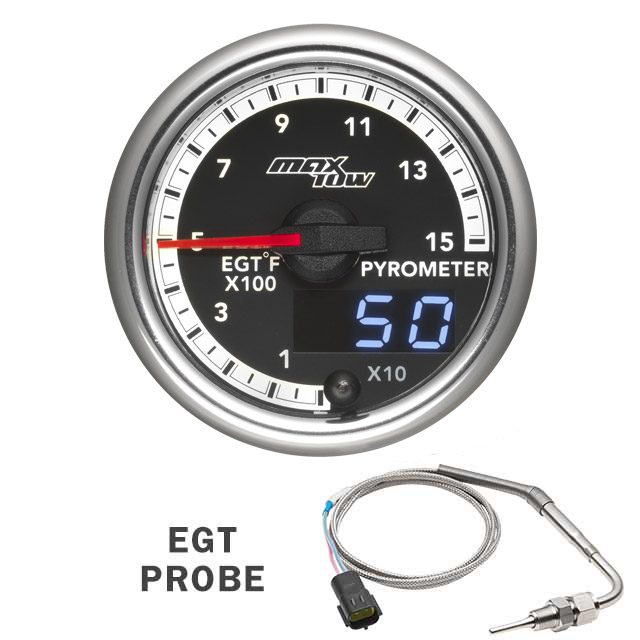

1500° F Pyrometer EGT Reads Exhaust Temperature from 0 - 1500° Fahrenheit Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable Includes 5' Power & 6' Sensor Wire Harnesses Waterproof EGT Probe to Sensor Harness Connector

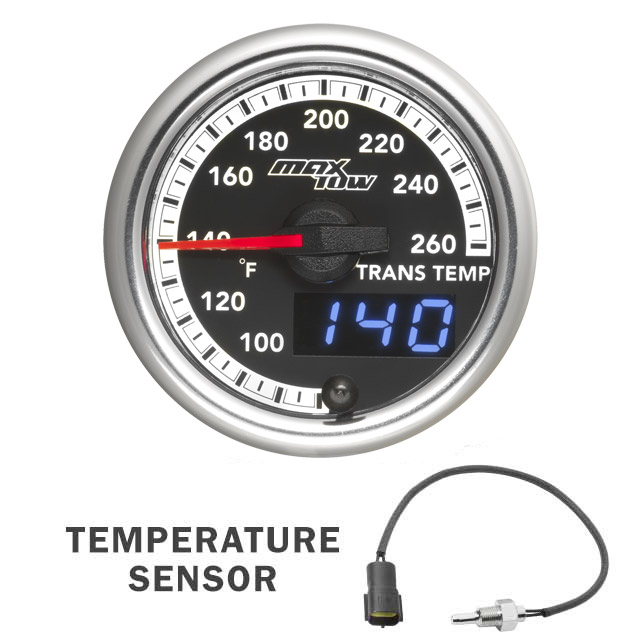

Transmission Temperature Reads Transmission Temperature from 80 - 260° Fahrenheit 1/8-27 NPT Electronic Temperature Sensor 9' Sensor & 5' Power Harnesses Waterproof Sensor to Sensor Harness Connector

30 PSI Fuel Pressure Reads Fuel Pressure from 0 - 30 PSI 1/8-27 NPT Electronic Fuel Pressure Sensor 9' Sensor & 5' Power Wire Harnesses

Pillar Pod Details

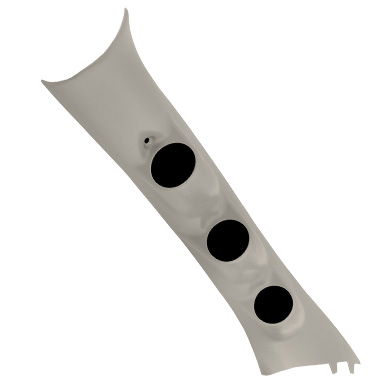

The Dodge Ram A pillar gauge pod is made specifically for any 2010-2018 4th Gen Ram 2500 & 3500 with a 6.7 Cummins diesel engine. This triple gauge pillar pod is featured in factory color matched taupe and replaces the factory A-pillar to hold (3) 2-1/16” (52mm) gauges. Each 4th Gen Cummins gauge pod is crafted from premium quality ABS plastic to withstand cracking, fading and warping while remaining durable over time. Fits: 10, 11, 12, 13, 14, 15, 16, 17, 18 Dodge Ram 2500 & 3500.

Factory Color Matched Taupe Full Size Triple Pillar Pod Holds (3) 2-1/16” (52mm) Gauges Crafted from ABS Plastic to Be Extremely Durable UV Coating Protects the Color of the Pod from Sunlight

Replace the Factory A-Pillar of the 2010-2018 Ram 6.7 Cummins Quick-Glance Readings from an Optimal Location Engine Readings Delivered with Pinpoint Precision Ultra-Bright LED Gauges Enhance Your Ram Truck’s Interior

Mounting Bolt Included for Pod Installation to Factory Location Bolt Installs Through Pre-Drilled Hole on Pod Secure Fit to the Factory A-Pillar Location No Drilling or Permanent Modifications to Truck Required

Fitment Details

Cummins is a registered trademark of Cummins Inc. This product is not designed, produced or manufactured by Cummins Inc. GlowShift Gauges, LLC is not any way, shape or form affiliated with Cummins Inc.

1/8-27 NPT Drill & Tap Set Used for Installing EGT Probe, Boost Fittings or Boost Sensor Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT Includes Size R Drill Bit & 1/8 NPT Tap	Boost Bolt Adapter for 6.7L Cummins Quick & Easy Install of Boost Hose or Sensor into the Intake Manifold Replaces the Manifold Horn Bolt No Drilling & Tapping Required Female 1/8-27 NPT Thread for Fittings/Sensor Fits 2006.5-2018 6.7L Cummins	Snubber Valve Regulates, Normalizes & Eliminates Fuel Pressure Spikes During Startup Protects Pressure Sensor from Spikes/Water Hammer Effect Installs Between Fuel Filter Housing & Sensor High-Quality Brass Design – Built to Last Male & Female 1/8-27 NPT Threads	Big Line Kit for 2010-2018 Dodge Ram 6.7L Cummins Allows Installation of Fuel Pressure Sensor into the Injection Pump Inlet Replaces the Restrictive Factory Hard Line with 3/8” Rubber Hose Between Fuel Filter Housing & Injection Pump Includes 3/8” T-Fitting, Injection Pump Connector, Fuel Filter Housing Quick-Connector, Push-On Hose Connectors & Hose Clamps Female 1/8-27 NPT Thread Adapter on T-Fitting for Sensor Fits 2010-2018 Dodge Ram 6.7L Cummins
1/2” Transmission Cooler Line T-Fitting Adapter Allows Installation of Temperature Sensor to the 1/2" Transmission Cooler Line Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal Female 1/8-27 NPT Thread on T-Fitting for Sensor Required When Installing Sensor to 2007.5+ Dodge Ram Cummins Required When Installing Sensor to 68RE & 68RFE Transmissions	Transmission Cooler Thermal Bypass Adapter Allows for Easy Installation of Temp Sensor to the Transmission Cooler Feed Line Avoid Cutting Into Factory Lines - No Permanent Modifications Required Includes (1) Adapter Unit, (2) 1/8-27 NPT Ports, (2) Quick-Disconnect Fittings & (1) 1/8-27 NPT Port Plug Fits 2013+ Dodge Ram 68RFE Transmissions	Rail Pressure Pigtail Harness Quick & Easy Installation Without Having to Splice or Cut into Factory Wires Connects Directly to Common Rail Pressure Sensor Plug & Play Fits 2003-2012 5.9L & 6.7L Cummins	Expandable Circuit Quick & Easy Way to Power Gauges Directly from the Fuse Panel Used for Constant & Switched 12 Volt Power for Gauges Includes Fuse for Circuit Protection Mini Expandable Circuit - Compatible with 2010-2012 Dodge Ram Micro2 Expandable Circuit - Compatible with 2013-2018 Dodge Ram
MaxTow 3 Gauge Power Wire Harness Used to Easily Power All 3 Gauges from 1 Harness that Connects to Power Daisy Chain Feature with Each Connector Plugging into Each Gauge Prevents Wire Clutter in Fuse Panel, Under the Hood or in the Pillar Pod 6-1/2’ of Total Wire

Installation Guides

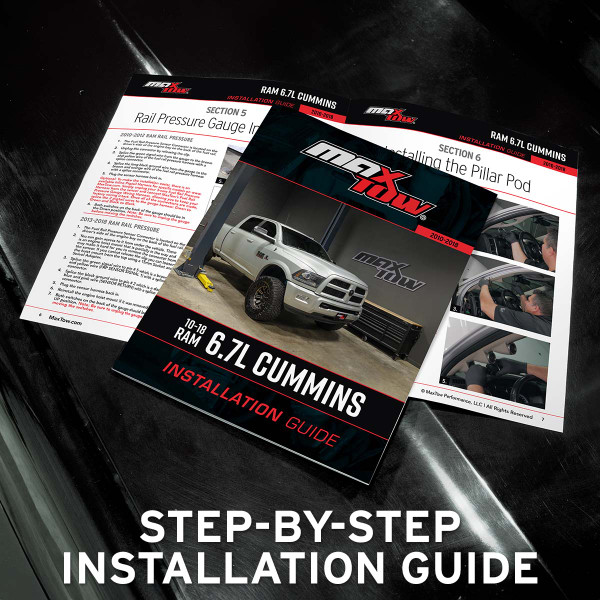

MaxTow Match 4th Gen Cummins Series Triple Gauge Packages include instructions that provide complete detail on how to install 4th Gen Cummins pillar gauges and a 4th Gen Cummins gauge pod for 2010-2018 Dodge Ram 6.7 Cummins 2500 & 3500 diesel pickups. You can also view installation videos which include step-by-step tutorials and useful tips on how to install several MaxTow products.

Watch the Installation Video

Download and Print the PDF
