MaxTow Match Triple Gauge Package for 2014-2019 GMC Sierra Duramax

Match your factory teal instrument cluster with MaxTow Match 6.6L GM Duramax Triple Gauge Packages for any 2014-2019 GMC Sierra 2500HD & 3500HD. Experience full customization with a gauge package combining a factory fitted Triple Duramax Pillar Gauge Pod in OEM Black or Factory Color Matched Tan. Also included are (3) 2-1/16” (52mm) MaxTow Match GM 6.6 Duramax Gauges. Round out your custom gauge package with optional gauge accessories that make installation even easier.

Gauge Series Details

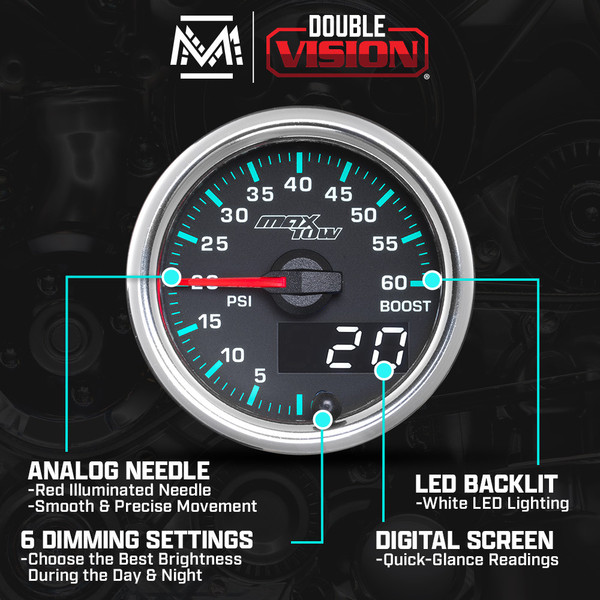

MaxTow Match Gauges for the 6.6L GM Duramax match the dash of 2014-2019 GMC Sierra trucks that have factory teal instrument clusters. These 2-1/16 (52mm) GM 6.6 Duramax Gauges are specifically designed for the Duramax platform to display all OEM specifics with custom faceplates that match the truck, the fonts, LED coloring and the trim ring. Features include a black analog gauge dial, OEM teal tick marks, white LED backlighting, an illuminated red needle and chrome trim ring. With the Double Vision display you can view corresponding digital readings at the same time.

GM 6.6 Duramax Gauges come complete with sensor and power wiring harnesses. For gauges that require a sensor, a 1/8-27 NPT electronic sensor is also included. The sensor and power harnesses feature extended lengths for more flexibility during installation. Both harnesses effortlessly connect to the back of the Sierra Gauges by utilizing Plug and Play connectivity. Mounting brackets and mounting hardware are provided in addition to step-by-step installation instructions.

Factory Spec Styling

The MaxTow Match Series features a lineup of gauges designed specifically for the GM 6.6 Duramax which are virtually identical to the look of your factory Duramax Gauge Cluster. Add aftermarket Duramax Gauges to your GMC Sierra A-pillar for the ultimate monitoring experience. MaxTow Match GM 6.6 Duramax Gauges deliver an OEM style that enhances the interior of any 2014-2019 GMC Sierra 2500HD & 3500HD while accurately tracking critical engine readings.

Diesel Tech Picks

Our Diesel Techs have years of experience when it comes to choosing the right gauges for your GM 6.6L Duramax. Here you’ll find their top choices based on performance, reliability, and how efficient these gauges will be in providing you with responsive and accurate feedback for your diesel engine. You’ll have everything needed for monitoring to ensure that your Sierra 2500HD and 3500HD continues to run optimally for years to come.

60 PSI Boost Reads Boost from 0 - 60 PSI 1/8-27 NPT Electronic Pressure Sensor 9' Sensor & 5’ Power Wire Harnesses

1500° F Pyrometer EGT Reads Exhaust Temperature from 0 - 1500° Fahrenheit Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable Includes 5' Power & 6' Sensor Wire Harnesses Waterproof EGT Probe to Sensor Harness Connector

Transmission Temperature Reads Transmission Temperature from 80 - 260° Fahrenheit 1/8-27 NPT Electronic Temperature Sensor 9' Sensor & 5' Power Harnesses Waterproof Sensor to Sensor Harness Connector

100 PSI Fuel Pressure Reads Fuel Pressure from 0 - 100 PSI 1/8-27 NPT Electronic Fuel Pressure Sensor 9' Sensor & 5' Power Wire Harnesses

Pillar Pod Details

These Duramax Pillar Gauge Pods are made specifically for the 2014-2020 GMC Sierra 2500HD & 3500HD. This triple pillar pod is factory fitted, featured in OEM Black and Factory Color Matched Tan, and replaces the factory A-pillar to hold (3) 2-1/16” (52mm) gauges. Each Duramax Gauge Pod is crafted using premium quality ABS plastic to withstand cracking, fading and warping. Fits: 2014, 2015, 2016, 2017, 2018, 2019 models.

OEM Black or Factory Color Matched Tan Holds (3) 2-1/16” (52mm) Gauges Crafted from ABS Plastic to Be Extremely Durable UV Coating Protects the Tan Color from Sunlight

Factory Fitted to 2014-2020 GM 6.6L Duramax Replaces the Factory A-Pillar Quick-Glance Readings from an Optimal Location Ultra-Bright LED Gauges Enhance Your Truck’s Interior

Mounting Bolt Included for Pod Installation to Factory Location Bolt Installs Through Pre-Drilled Hole on Pod Secure Fit to the Factory A-Pillar Location No Drilling or Permanent Modifications Required

Fitment Details

GMC is a registered trademark of General Motors. This product is not designed, produced or manufactured by General Motors. MaxTow Performance, LLC is not in any way, shape or form affiliated with General Motors.

1/8-27 NPT Drill & Tap Set Used for Installing EGT Probe, Boost Fittings or Boost Sensor Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT Includes Size R Drill Bit & 1/8 NPT Tap	MAP Line T-Fitting Adapter Quick & Easy Install of Boost Hose or Sensor into the 3/16” MAP Line Cut the Line, Insert the T-Fitting & Secure with Included Clamps Avoid Drilling & Tapping the Intake Manifold Female 1/8-27 NPT Thread for Fittings/Sensor	Test Port Adapter for GM Allison 1000 Quick & Easy Install of Temperature Sensor to Transmission Test Port Threads onto Temperature Sensor for Protection from Internal Transmission Parts Includes O-Ring for Leak-Free Seal No Modifications to Transmission Necessary Female 1/8-27 NPT Thread for Sensor Fits 2000-2018 Chevy Silverado/GMC Sierra	Transmission Cooler Line T-Fitting Adapter for GM Allison 1000 Allows Installation of Temperature Sensor to the 5/8” Transmission Cooler Line Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal Female 1/8-27 NPT Thread on T-Fitting for Sensor Fits 2000-2019 Chevy Silverado/GMC Sierra
3/8” Quick-Connect EFI Fuel Line Adapter Easy Install of Fuel Pressure Sensor Between Fuel Line & Fuel Rail Compatible with 3/8” Modern Electronic Fuel Injection Lines No Need to Cut Factory Fuel Lines Features 2 Female 1/8-27 NPT Threads Features Internal O-Ring for Leak-Free Seal	18ft Pressure Sensor Harness Extends the Length of 9’ Harness Included with Gauge to 18’ Commonly Used on Trucks with Aftermarket Lift Pump Installed Plug & Play	Fuel Filter Bleeder Screw Upgrades the Factory Plastic Bleeder Screw to Durable Billet Aluminum Machined Air Channel Helps “Bleed” Air Out of the Fuel System Diesel Fuel Rated Viton O-Ring Provides a Leak-Free Seal Fits 2001-2016 6.6L Duramax LB7, LLY, LBZ, LMM & LML	Expandable Circuit Quick & Easy Way to Power Gauges Directly from the Fuse Panel Includes (2) Micro2 & (1) Mini Expandable Circuits Used for Constant & Switched 12 Volt Power for Gauges Mini Expandable Circuit Used for Dimming Feature Includes 4 & 5 Amp Fuses for Circuit Protection Bundled Specifically for 2014-2019 Chevrolet Silverado & GMC Sierra Trucks
MaxTow 3 Gauge Power Wire Harness Used to Easily Power All 3 Gauges from 1 Harness that Connects to Power Daisy Chain Feature with Each Connector Plugging into Each Gauge Prevents Wire Clutter in Fuse Panel, Under the Hood or in the Pillar Pod 6-1/2’ of Total Wire

Installation Guides

MaxTow Match 6.6L GM Duramax Series Triple Gauge Packages include instructions that provide complete detail on how to install these Duramax Gauges and Duramax Gauge Pods for the 2014-2019 GMC Sierra 2500HD & 3500HD. You can also view installation videos which include step-by-step tutorials and useful tips on how to install many MaxTow products.

Watch the Installation Video

Download and Print the PDF
