MaxTow Triple Gauge Package for 1986-1993 Dodge Ram Cummins

MaxTow's Double Vision® Series Triple Gauge Package was made for the 1986-1993 Dodge Ram 12v Cummins 1st Generation. Experience complete customization when you select from 15 gauges for this 3-gauge set which comes with all required sensors. This package also includes a Dodge Ram black triple pillar pod or triple dash pod, both of which are extremely durable and can be mounted to your existing A-pillar or dashboard respectively. With the innovative Double Vision® Gauge Series, you’ll experience both digital and analog readouts on your choice of several unique ultra-bright LED displays.

Gauge Series Details

Multiple color and style combinations are available for complete customization of your high-performance 2-1/16” (52mm) gauges. The Double Vision® Gauge Series gives you the classic look of an analog gauge with an illuminated red needle while simultaneously displaying an easy-to-read digital numeric readout. Choose from either a black or white gauge face and a blue or green LED display. These gauges feature stepper motor technology which allows for smooth needle movement and extremely accurate gauge readings. You’ll also have the option of three daytime and three nighttime dimming modes with three customizable brightness settings (low, medium, high) for each. Choose from a variety of different gauge types to fully customize your gauge package. MaxTow also includes all sensors, wiring, mounting hardware and a one-year limited warranty. Get ready to hit the road and Tow to the Max®!

High Performance Gauges Gauges Measure 2-1/16” (52mm) Depth Measures 1-5/16” Magnified Lens Power and Sensor Wires Mounting Hardware

Double Vision® Gauge Series Digital and Analog Readings Black or White Gauge Face Ultra-Bright Blue or Green LED Display Illuminated Red Needle Stepper Motor Technology

6 Dimming Modes Daytime and Nighttime Dimming Modes 3 Customizable Brightness Settings for Each Continue to Easily View Readings Select with Button on Gauge Face Gauge Displays Last Setting When Reactivated

Plug and Play Connectivity Plug and Play Connectors on Power & Sensor Wires Both Wires Easily Snap Into the Back of the Gauge Extended Wire Lengths For Installation Quick and Easy Install Even Faster Readouts with an Electronic Gauge

Diesel Tech Picks

Our Diesel Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your Dodge Ram Cummins. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with all of the information you need to get the best performance out of your truck.

60 PSI Boost Reads Boost from 0 - 60 PSI 1/8-27 NPT Electronic Pressure Sensor 9' Sensor & 5’ Power Wire Harnesses

1500° F Pyrometer EGT Reads Exhaust Temperature from 0 - 1500° Fahrenheit Includes 1/8-27 NPT EGT Probe with 3' of Steel Braided Cable Includes 5' Power & 6' Sensor Wire Harnesses Waterproof EGT Probe to Sensor Harness Connector

Transmission Temperature Reads Transmission Temperature from 80 - 260° Fahrenheit 1/8-27 NPT Electronic Temperature Sensor 9' Sensor & 5' Power Harnesses Waterproof Sensor to Sensor Harness Connector

30 PSI Fuel Pressure Reads Fuel Pressure from 0 - 30 PSI 1/8-27 NPT Electronic Fuel Pressure Sensor 9' Sensor & 5' Power Wire Harnesses

Pod Details

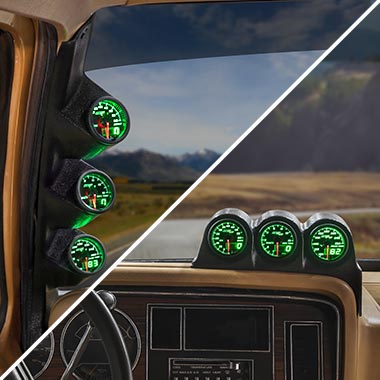

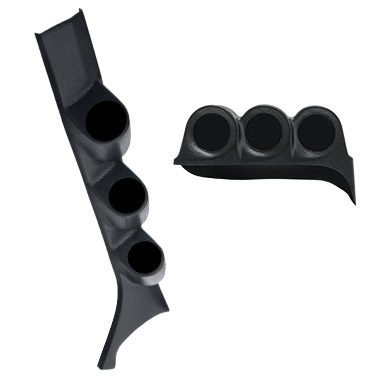

The included full size, factory matched triple pillar pod and triple dashboard pod are both made specifically for the 1986-1993 Dodge Ram 12v Cummins 1st Gen. These gauge pods hold (3) 2-1/16” (52mm) gauges and are crafted from high quality ABS plastic, allowing them to withstand cracking, fading and warping. They can also be painted using ABS plastic paint to match your factory interior for a fully customized fit and finish. Fits: 86, 87, 88, 89, 90, 91, 92, 93 Dodge Ram, 1500, 2500, 3500, D/W 100, D/W 250, D/W 350

Holds (3) 2-1/16” (52mm) Gauges Choose Between A-Pillar or Dashboard Pod Made from ABS Plastic Withstands Cracking, Fading and Warping

Overlay of Factory A-Pillar Mount to A-Pillar or Dashboard Tailor-made for 1st Gen Cummins Professional Fit and Finish

Push-In Fasteners for A-Pillar Pod Mounting Screw for Dash Pod Drill to Install Easy to Install

Fitment Details
