MaxTow Triple Gauge Package for 2010-2014 Ford F-150 Raptor

MaxTow's Double Vision® Series Triple Gauge Package was made for the First Generation 2010-2014 Ford F-150 Raptor featuring a 5.4L V8 or 6.2L V8 engine. Experience complete customization when you select from 15 gauges for this 3-gauge set which comes with all required sensors. This package also includes a black triple pillar pod with a speaker cutout which is a complete replacement of the factory A-pillar. With the innovative Double Vision® Gauge Series, you’ll experience both digital and analog readouts on your choice of several unique ultra-bright LED displays.

Gauge Series Details

Multiple color and style combinations are available for complete customization of your high-performance 2-1/16” (52mm) gauges. The Double Vision® Gauge Series gives you the classic look of an analog gauge with an illuminated red needle while simultaneously displaying an easy-to-read digital numeric readout. Choose from either a black or white gauge face and a blue or green LED display. These gauges feature stepper motor technology which allows for smooth needle movement and extremely accurate gauge readings. You’ll also have the option of three daytime and three nighttime dimming modes with three customizable brightness settings (low, medium, high) for each. Choose from a variety of different gauge types to fully customize your gauge package. MaxTow also includes all sensors, wiring, mounting hardware and a one-year limited warranty. Get ready to hit the road and Tow to the Max®!

High Performance Gauges Gauges Measure 2-1/16” (52mm) Depth Measures 1-5/16” Magnified Lens Power and Sensor Wires Mounting Hardware

Double Vision® Gauge Series Digital and Analog Readings Black or White Gauge Face Ultra-Bright Blue or Green LED Display Illuminated Red Needle Stepper Motor Technology

6 Dimming Modes Daytime and Nighttime Dimming Modes 3 Customizable Brightness Settings for Each Continue to Easily View Readings Select with Button on Gauge Face Gauge Displays Last Setting When Reactivated

Plug and Play Connectivity Plug and Play Connectors on Power & Sensor Wires Both Wires Easily Snap Into the Back of the Gauge Extended Wire Lengths For Installation Quick and Easy Install Even Faster Readouts with an Electronic Gauge

Diesel Tech Picks

Our Diesel Techs have years of experience and a wealth of knowledge when it comes to choosing the gauges that will work best for your Ford F-150 Raptor. Here you’ll find their top choices based on performance, efficiency, reliability, and how effective these gauges will be in providing you with all of the information you need to get the best performance out of your truck.

Oil Pressure Reads Oil Pressure from 0 - 100 PSI 1/8-27 NPT Electronic Oil Pressure Sensor 9' Sensor & 5' Power Wire Harnesses

100 PSI Fuel Pressure Reads Fuel Pressure from 0 - 100 PSI 1/8-27 NPT Electronic Fuel Pressure Sensor 9' Sensor & 5' Power Wire Harnesses

Transmission Temperature Reads Transmission Temperature from 80 - 260° Fahrenheit 1/8-27 NPT Electronic Temperature Sensor 9' Sensor & 5' Power Harnesses Waterproof Sensor to Sensor Harness Connector

Wideband Air/Fuel Ratio Reads Air/Fuel Ratio from 10.0 - 20.0 Wideband Oxygen Sensor Digital Wideband Controller Unit with Data Logging Weld-In Sensor Bung Power & Sensor Wire Harnesses

Pillar Pod Details

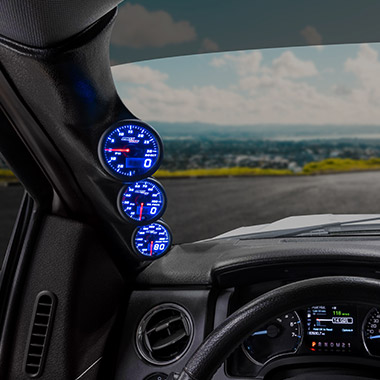

The included full size, factory matched triple pillar pod is made specifically for the 1st Generation 2010-2014 Ford F-150 Raptor. This black Ford triple pillar pod with a speaker cutout at the base of the pod can be effectively mounted as a full replacement of your factory A-pillar. This Raptor pillar gauge pod holds (3) 2-1/16” (52mm) gauges and is crafted from high quality ABS plastic, allowing it to withstand cracking, fading and warping. It can also be painted using ABS plastic paint to match your factory interior for a fully customized fit and finish. Fits: 2010, 2011, 2012, 2013, 2014 Ford F-150 Raptor.

Holds (3) 2-1/16” (52mm) Gauges Black Triple Pillar Pod Made from ABS Plastic Withstands Cracking, Fading and Warping

Replacement of Factory A-Pillar Full Length Gauge Pod Match to Your Factory Interior Professional Fit and Finish

Factory A-Pillar Speaker Cutout Located at the Base of the Pod For Your Factory Speaker Speaker Easily Clips into Opening

Fitment Details

1/8-27 NPT Drill & Tap Set Used for Installing EGT Probe, Boost Fittings or Boost Sensor Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT Includes Size R Drill Bit & 1/8 NPT Tap	Oil Filter Sandwich Adapter Quick & Easy Solution to Install Multiple Sensors to Vehicle’s Oil Filter Used for Oil Pressure & Oil Temperature Sensors Features (4) 1/8-27 NPT Thread Ports & Port Plugs Includes O-Ring for Leak-Free Seal	Fuel Pressure Adapter for Ford 3.5L EcoBoost Quick & Easy Install of Fuel Pressure Sensor Between 3/8” Fuel Line & High Pressure Fuel Pump No Need to Cut Factory Fuel Lines (2) Female 1/8-27 NPT Threads for Sensor & Other Accessories Includes 1 Port Plug Fits 2011-2016 Ford F-150 3.5L EcoBoost	Expandable Circuit Quick & Easy Way to Power Gauges Directly from the Fuse Panel Used for Constant & Switched 12 Volt Power for Gauges Includes 4 Amp Fuse for Circuit Protection
MaxTow 3 Gauge Power Wire Harness Used to Easily Power All 3 Gauges from 1 Harness that Connects to Power Daisy Chain Feature with Each Connector Plugging into Each Gauge Prevents Wire Clutter in Fuse Panel, Under the Hood or in the Pillar Pod 6-1/2’ of Total Wire
