White 7 Color 2" 10,000 RPM Tachometer Gauge

SKU:
GS-W710
$140.99
$64.99
(You save $76.00 )

UPC:
842559103012
Maximum Purchase:
99 units
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

GlowShift’s White 7 Color Series 2” Tachometer Gauge reads from 0 to 10,000 RPM and can be installed into any 1 through 10 cylinder gas powered engine, making it the perfect addition to performance vehicles. This tach gauge is installed by connecting the included color coded wire harness to the negative side of your coil, your tachometer test port, or by using a tach adapter.

White 7 Color Series White 7 Color Series

GlowShift’s White 7 Color Gauge Series comes standard with a cutting-edge design that includes a white gauge dial, analog display and magnified clear lens. You can also choose between 7 different color options for the LED display. Install to the dashboard, A-pillar, or another location inside your vehicle. You’ll enhance the interior of your vehicle and take accurate readings at the same time.

Features

White 7 Color Series Features

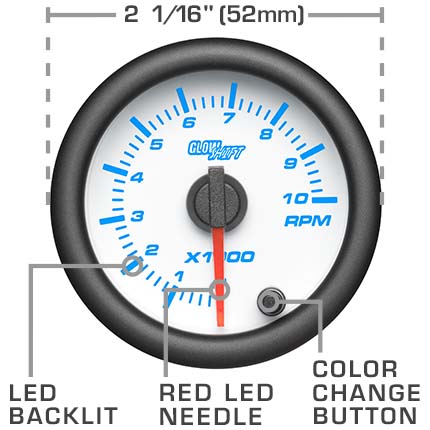

The gauge’s illuminated red needle sweeps 270° and is powered by stepper motor technology. You’ll get an effective combination of incredibly precise gauge readings with extremely smooth needle movement. GlowShift’s 7 Color through dial lighting system allows you to select and change the color of your gauge lighting display by simply pressing the button located on the front of the gauge.

7 Color Options

White 7 Color Series Color Options

Easily cycle through the 7 Solid Color Settings and 2 Color Cycle Modes. The solid color modes featured are Blue, Green, Red, Teal, Yellow, Purple and White. Adjust the color of the gauge to match your factory dash lights, or create a custom look inside of your car or truck. With the Color Memory feature, you won’t have to reset the color of the gauge every time you turn on your vehicle.

Backlighting

White 7 Color Series Backlighting

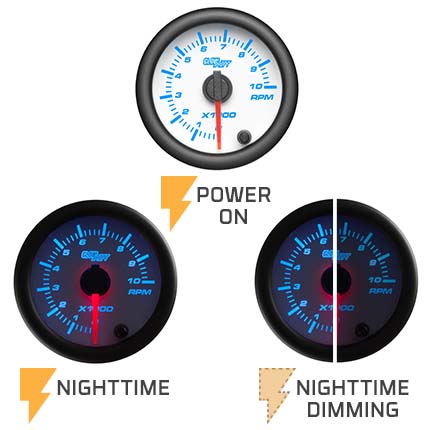

This gauge features LED backlighting which results in an ultra-bright display that delivers clear and vivid readouts. On or off, the gauge will look great courtesy of the white gauge face and magnified lens which are at the heart of this Gauge Series. By connecting the orange wire from the power harness to the factory headlight switch, you can dim the gauge 30% when the headlights are on.

What's Included

  • 2-1/16” (52mm) 2” Tachometer Gauge
  • 2’ Power Harness
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

Wiring

White 7 Color Tachometer Wiring

The 2’ Power Harness utilizes Plug and Play Connectivity to easily snap into the modular connector on the back of the gauge. Wires are included for Power, Ground, and a Dimming feature. The extended wire length also provides added flexibility during installation.

Mounting Bracket

White 7 Color Tachometer Mounting Hardware

A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable.

Gauge Visor

White 7 Color Tachometer Gauge Visor

The gauge visor is used to protect against sun glare so that you’ll have a clear view of readings during the day. This visor easily slips onto the gauge with the wider portion positioned at the top.

Small But Powerful Tachometer

If you’re looking for the features of a larger tachometer with the convenience of a smaller and more streamlined design, then this 2 inch tachometer gauge is for you. The 52mm tachometer has all the monitoring power of the larger tach and is ideal for drivers who want to monitor their RPMs when it is not essential to have a larger tachometer in place. Experience extremely accurate readings and get all the benefits that come with knowing your engine’s working speed. When you’re looking for the best tachometer gauge, GlowShift’s 2” tach comes packed with features that will give you maximum monitoring capability.

Note For Multiple Coil Systems

Our Tachometers are only designed for a gasoline, single coil application. For multiple coil applications, the use of a multiple coil or aftermarket ignition system adapter is required. Vehicles equipped with High Energy Ignition Systems (HEI) will require GlowShift’s HEI Signal Filter.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a one year limited warranty and free lifetime tech support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.

  • Transforms Poor, Weak or Disordered Pulse Signals & Corrects Them
  • Used for Single Coil & Point Style Coil Ignition Systems
  • Specifically Designed for Vehicles with High Energy Ignition Systems
  • Converts High Voltage Signal to a More Manageable Voltage for the Tachometer Gauge
Tech Specs
Gauge Series: White 7 Color Series
Brand: GlowShift
Gauge Type: Tachometer
Range of Reading: 0 - 10,000 RPM
Face Color: White
Size: 52mm
Lens: Clear
Backlighting Color: 7 Colors
Sending Unit: Electronic
Measurement Unit: Standard
Display: Analog
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.
