White 7 Color Dual Digital Wideband Air/Fuel Ratio Gauge

GlowShift’s White 7 Color Series Dual Digital Wideband Air/Fuel Ratio Gauge allows you to closely monitor and fine-tune the left and right banks of any vehicle’s exhaust system simultaneously from one gauge on an ultra bright 4-digit color changing LED display. Select either Gasoline AFR readings from 10.01 to 20.00 AFR, E85 readings from 6.660 to 13.31 AFR, or LAMBDA readings from 0.683 to 1.365. With this dual wideband AFR gauge you’ll have the ability to carefully map out your vehicle’s Air to Fuel Ratio through the range of engine RPM. Benefits this dual AFR gauge include maximized power and engine performance, higher fuel economy and reduced emissions.

GlowShift’s White 7 Color Gauge Series comes standard with a cutting-edge design that includes a white gauge face, ultra-bright dual digital display and a clear lens. You can also choose between 7 different color options for the 4-digit LED display. Install to the dashboard, A-pillar, or another location inside your vehicle. You’ll enhance the interior of your car or truck by adding a gauge that delivers readings with pinpoint accuracy at the same time.

Features GlowShift’s 7 Color through dial lighting system allows you to select and change the color of your gauge lighting display by simply pressing the button located on the front of the gauge. You can also toggle between the Gas, E85 and Lambda readings that are available. This dual digital wideband air fuel ratio gauge also features LEDs located around the gauge ring for added illumination.

7 Color Options Easily cycle through the 7 Solid Color Settings and 2 Color Cycle Modes. The solid color modes featured are Blue, Green, Red, Teal, Yellow, Purple and White. Adjust the color of the gauge to match your factory dash lights, or create a custom look inside of your car or truck. With the Color Recall feature, you won’t have to reset the color of the gauge every time you turn on your vehicle.

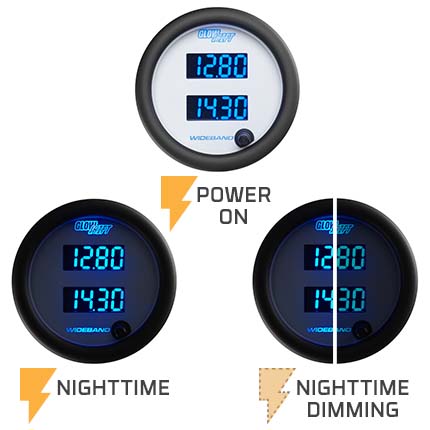

Backlighting This gauge features LED backlighting which results in an ultra-bright display that delivers clear and vivid readouts. On or off, it will look amazing courtesy of the white gauge face and clear lens which are at the heart of this Gauge Series. By connecting the orange wire from the power harness to the factory headlight switch, you’ll be able to dim the gauge 30% when the headlights are on. This feature will help you to reduce brightness and glare while viewing readings at night.

What's Included

2-1/16” (52mm) Dual Wideband O2 Sensor Kit (2) LSU 4.9 Wideband Oxygen Sensors (2) 12 Volt Wideband Controller Units with Data Logging Output (2) Stainless Steel Weld-In Sensor Bungs (2) Mild Steel Weld-In Sensor Bungs (2) Bung Plugs (2) 10’ Sensor Harnesses 7’ Controller-to-Gauge Wire Harness (2) 3’ Data Logging Output Harnesses 5’ Power Harness Gauge Visor Mounting Bracket Mounting Bracket Hardware Installation Instructions

Oxygen Sensors & Bungs Install the Wideband Oxygen Sensors to the exhaust pipe with the included Mild or Stainless Steel Weld-In Bungs and you’ll be able to determine if your car or truck’s Air-to-Fuel Ratio is Rich (10.00 ~ 13.63 AFR), Optimal (13.64 ~ 15.88 AFR) or Lean (15.89 ~ 20.00 AFR). The Wideband Oxygen Sensors include a 30 day manufacturer’s warranty. GlowShift does not warranty these oxygen sensors after that 30 day time frame.

Control Boxes & Wiring GlowShift's Wideband Air/Fuel Ratio Controller Units feature data logging capability that allows you to connect them to any engine management system to log real time data for more precise tuning.

Mounting Bracket A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable.

Benefits of Dual Digital Wideband

Dual digital wideband air to fuel ratio gauges offer multiple advantages for high performance race cars or any vehicle with a V6, V8 or V10. Benefits of a dual air fuel gauge include maximized power and engine performance, higher fuel economy and reduced emissions. This dual digital wideband gauge can be used on any vehicle that runs unleaded gasoline.

Dual Wideband Versus Single Wideband

A dual wideband air/fuel ratio gauge allows you to quickly and accurately diagnose which side of the engine is either underperforming or causing an issue so that it can be corrected to prevent engine damage. A single wideband gauge gives you those same readings and diagnoses, but you cannot pinpoint which bank is underperforming versus the other due to only one oxygen sensor being installed.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a one year limited warranty and free lifetime tech support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.
