White & Green MaxTow 10,000 RPM Tachometer Gauge

SKU:
MT-WDV10
$99.99
$69.99
(You save $30.00 )

UPC:
842559100967
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

MaxTow White & Green Double Vision™ Truck Tachometer Gauges read from 0 to 10,000 RPM with pinpoint accuracy. These truck RPM gauges can be installed to virtually any 1 through 10 cylinder truck with a gas powered engine, making them the perfect addition to any performance vehicle. This tach gauge is optimal for any driver looking to build a custom dash or replace their stock RPM tachometer. Get ready to hit the road and Tow to the Max™

White & Green Double Vision Tachometer Gauge White & Green Double Vision Tachometer Gauge

This truck tachometer gauge kit comes with everything required for installation. Included you’ll receive Signal and Power Wiring Harnesses, a Mounting Bracket, Mounting Hardware and more. Detailed Instructions walk you through the tachometer gauge installation step by step. Install this tach RPM gauge for trucks to virtually any mid-size or full-size pickup.

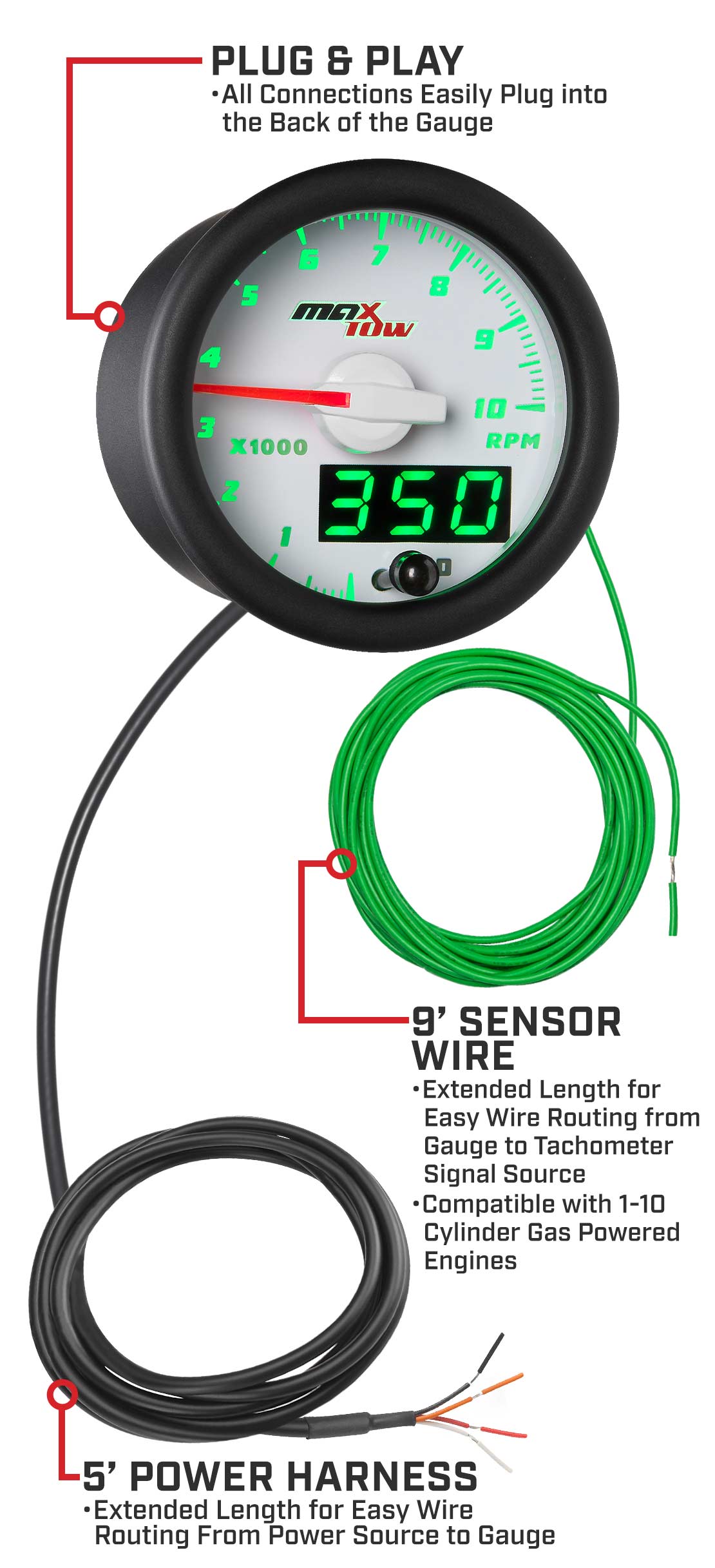

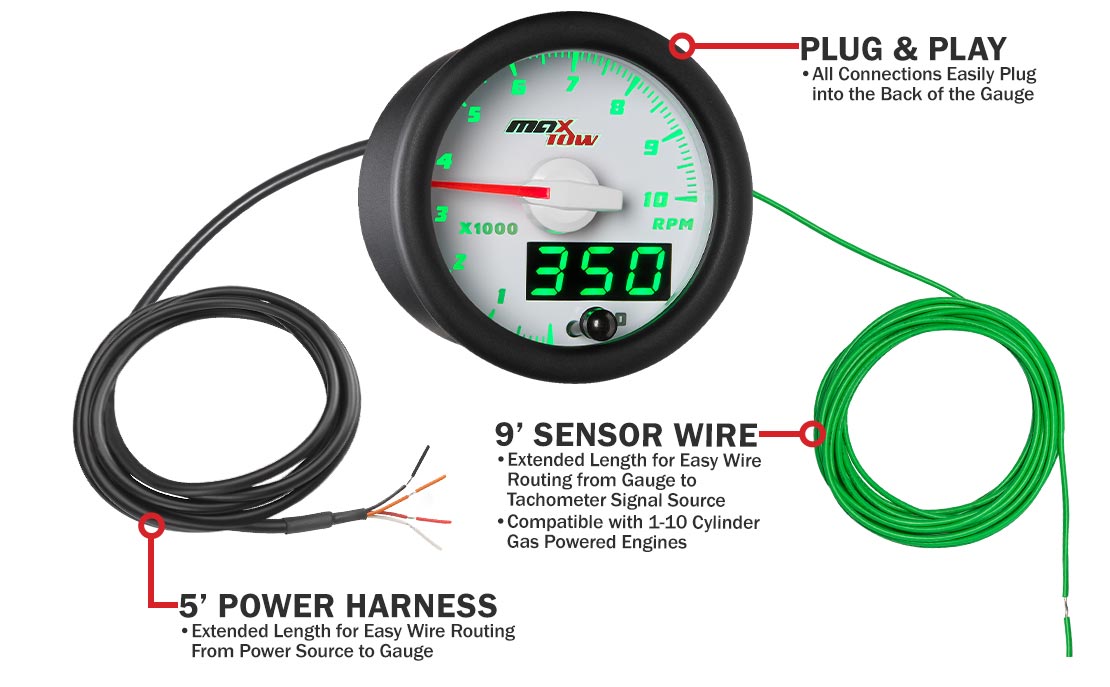

Tachometer Gauge Wiring

White & Green Double Vision 2 Inch Tachometer Gauge Parts & Wiring White & Green Double Vision 2 Inch Tachometer Gauge Parts & Wiring

MaxTow Truck Tachometer RPM Gauges feature signal and power harnesses with extended lengths for added flexibility during installation. The signal harness is 9’ and the power harness is 5’, assuring you’ll have more than enough wiring for a seamless install. Easily attach both harnesses to the back of the gauge by utilizing Plug and Play connectors.

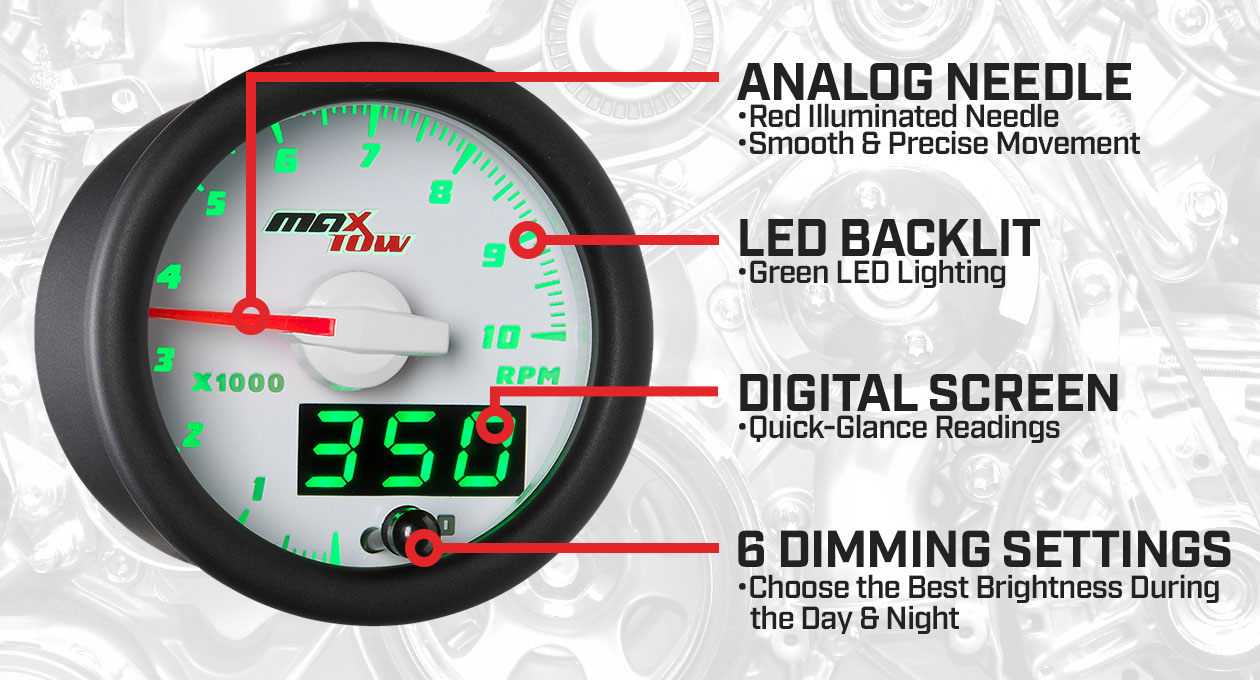

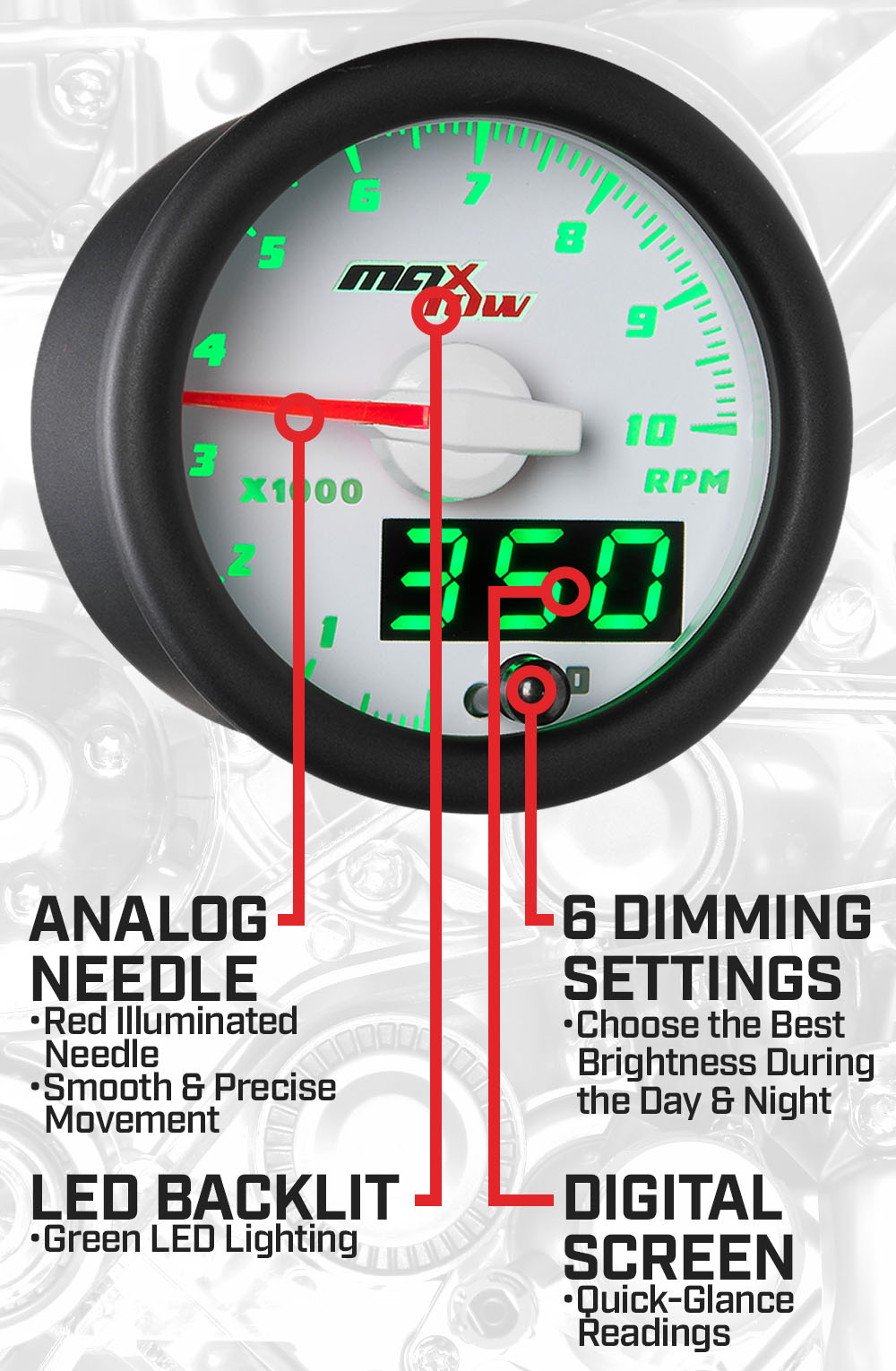

Double Vision™ Series Features

White & Green Double Vision Tach Gauge Features White & Green Double Vision Tach Gauge Features

MaxTow White & Green Double Vision™ Gauges feature a white gauge dial and green LED display with an illuminated red needle. Get the classic look of an analog gauge combined with a green digital numerical readout. This 2-1/16” (52mm) gauge is equipped with stepper motor technology which allows for all needle movement to be exceptionally smooth and all gauge readings to be extremely accurate. Brightness Recall retains the previous brightness setting before the truck is powered down.

Wiring Harnesses

MaxTow Plug & Play Wire Harnesses

Route the 9’ Tachometer Signal Wire to Your Chosen RPM Signal Source, Including Locations Such as the Negative Side of the Coil or a Tachometer Signal Port. The 5’ Power Wire Includes Both Power and Ground Connections. Easily Attach Included Wiring Harnesses to the Back of the Gauge with Plug and Play Connectors.

Mounting Bracket

MaxTow Mounting Bracket

A U-Shaped Gauge Mounting Bracket Is Included with a Stud Kit that Attaches the Bracket to the Back of the Tach Gauge. This Bracket Delivers a Secure Fit for Any In-Dash Mount.

Dimming Modes

MaxTow Double Vision Dimming Modes

Each Truck Tach RPM Gauge Is Equipped with 3 Daytime and 3 Nighttime Dimming Modes. Customize the Brightness Level for Optimal Viewing of Readings Anytime of Day or Night.

What's Included

  • 2-1/16” (52mm) Tachometer Gauge
  • 9’ Tachometer Source Wire
  • 5’ Power Harness
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

Truck Tachometer RPM Gauge

Tach RPM gauges for trucks are essential to any driver who wants to know exactly when it’s the right time to shift. Analog and digital tachometer gauges are beneficial to trucks with a manual transmission. When you’re shifting, you will know when the revolutions are in the right range from 0 to 10,000 RPM. These automotive tachometers are also integral to any truck’s custom dashboard when you’re looking to set up your own modified gauge cluster. Other benefits of adding a truck RPM gauge include increased fuel efficiency and longer engine life.

Designed for Gasoline, Single Coil Applications

MaxTow Truck RPM Gauges are only designed for a gasoline, single coil application. For multiple coil applications, the use of a multiple coil or aftermarket ignition system adapter is required. Trucks equipped with High Energy Ignition Systems (HEI) will require a Glowshift HEI Signal Filter.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our Gauges, Pods and Accessories.

  • Transforms Poor, Weak or Disordered Pulse Signals & Corrects Them
  • Used for Single Coil & Point Style Coil Ignition Systems
  • Specifically Designed for Vehicles with High Energy Ignition Systems
  • Converts High Voltage Signal to a More Manageable Voltage for the Tachometer Gauge
Tech Specs
Gauge Series: White & Green MaxTow Series
Brand: MaxTow
Gauge Type: Tachometer
Range of Reading: 0 - 10,000 RPM
Face Color: White
Size: 52mm
Lens: Clear
Backlighting Color: Green
Sending Unit: Electronic
Measurement Unit: Standard
Display: Combo
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
