White & Green MaxTow Nitrous Pressure Gauge

SKU:
MT-WDV14
$129.99

UPC:
842559109915
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

MaxTow White & Green Double Vision™ Truck Nitrous Pressure Gauges measure the amount of nitrous oxide present in the bottle of your diesel nitrous system. This NOS gauge reads nitrous pressure levels from 0 to 1,600 PSI through use of the included 1/8-27 NPT Electronic Pressure Sensor that installs directly to the nitrous bottle. Since most bottles are installed in the truck bed or behind the front seats, it is virtually impossible to view nitrous oxide levels when you’re driving. With MaxTow NOS Bottle Gauges for trucks you can easily view levels while driving with the gauge mounted on the A-pillar, dash or another location. Get ready to hit the road and Tow to the Max™

White & Green Double Vision Nitrous Pressure Gauge White & Green Double Vision Nitrous Pressure Gauge

This truck nitrous pressure gauge kit comes with everything required for installation. Included you’ll receive an Electronic NOS Pressure Sensor, Wiring Harnesses, Mounting Hardware and more. Detailed Installation Instructions walk you through the nitrous gauge install step by step. Add this nitrous oxide gauge to virtually any mid-size or full-size pickup running a diesel NOS system.

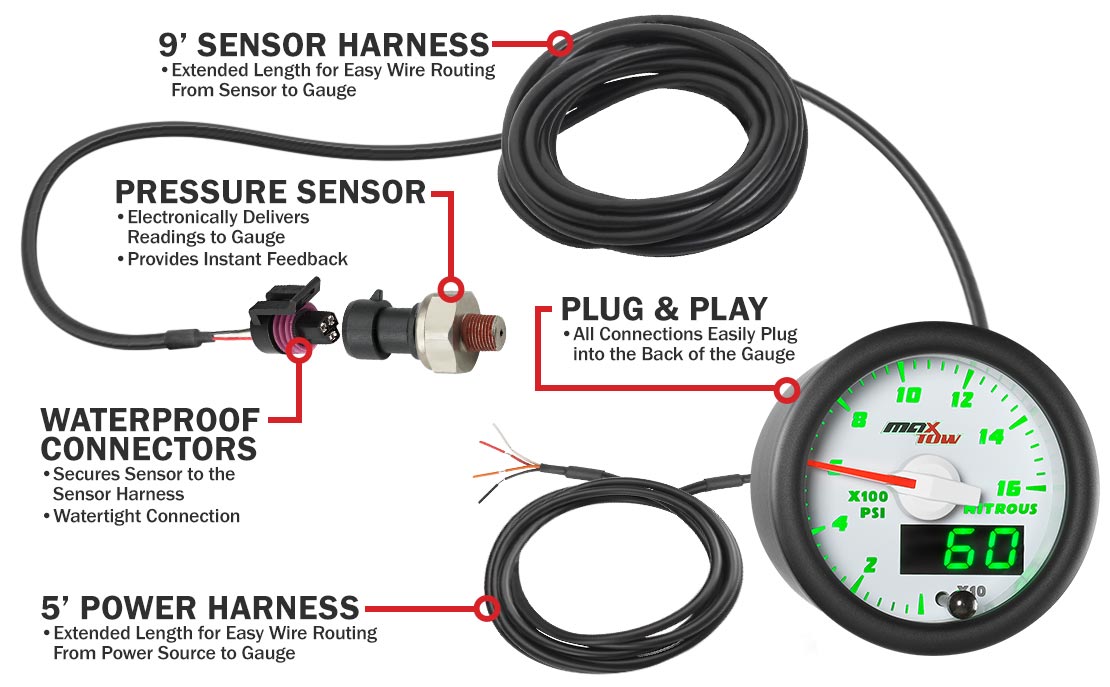

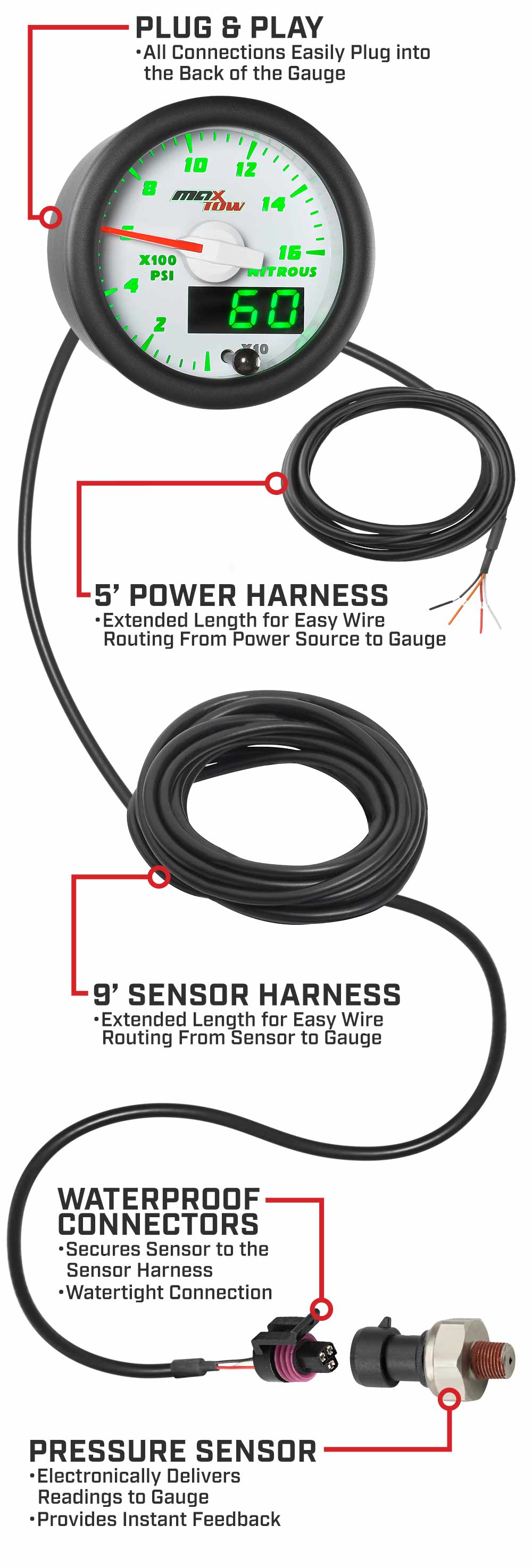

NOS Pressure Gauge Parts & Wiring

White & Green Double Vision NOS Pressure Gauge Parts & Wiring White & Green Double Vision NOS Pressure Gauge Parts & Wiring

MaxTow NOS Pressure Gauges for trucks feature sensor and power harnesses with extended lengths for added flexibility during installation. The sensor harness is 9’ and the power harness is 5’, assuring you’ll have more than enough wiring for a seamless install. Easily attach both harnesses to the back of this nitrous gauge for trucks by utilizing Plug and Play connectors.

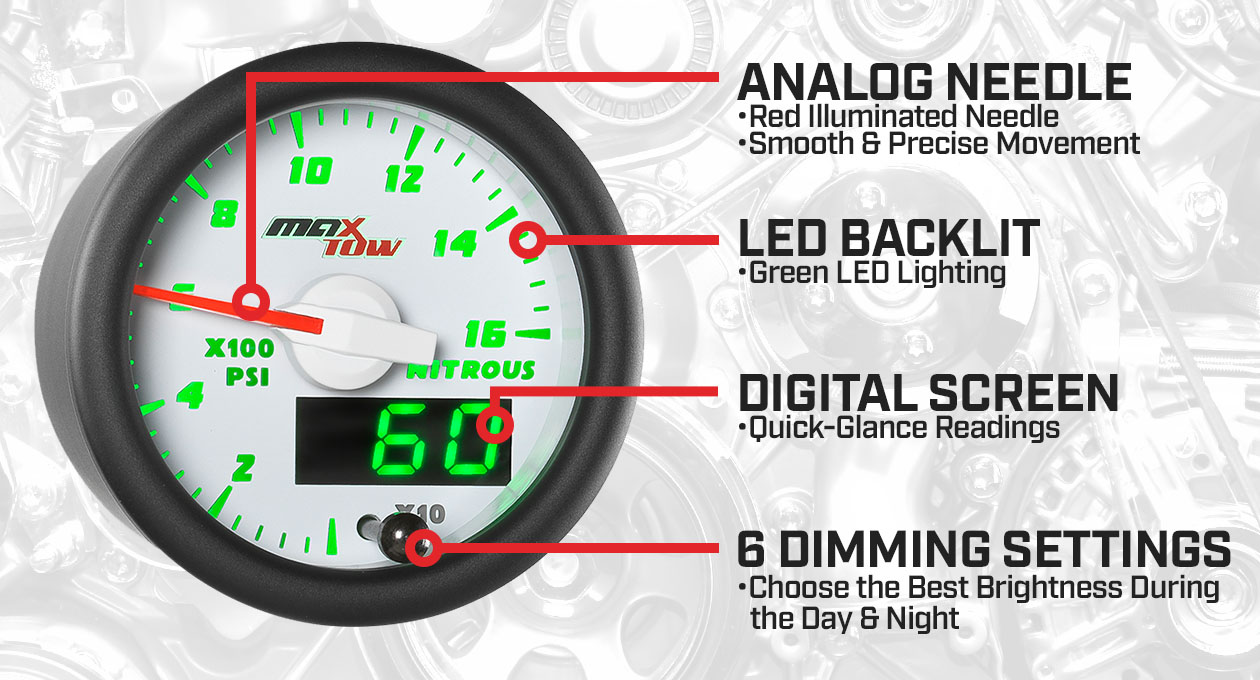

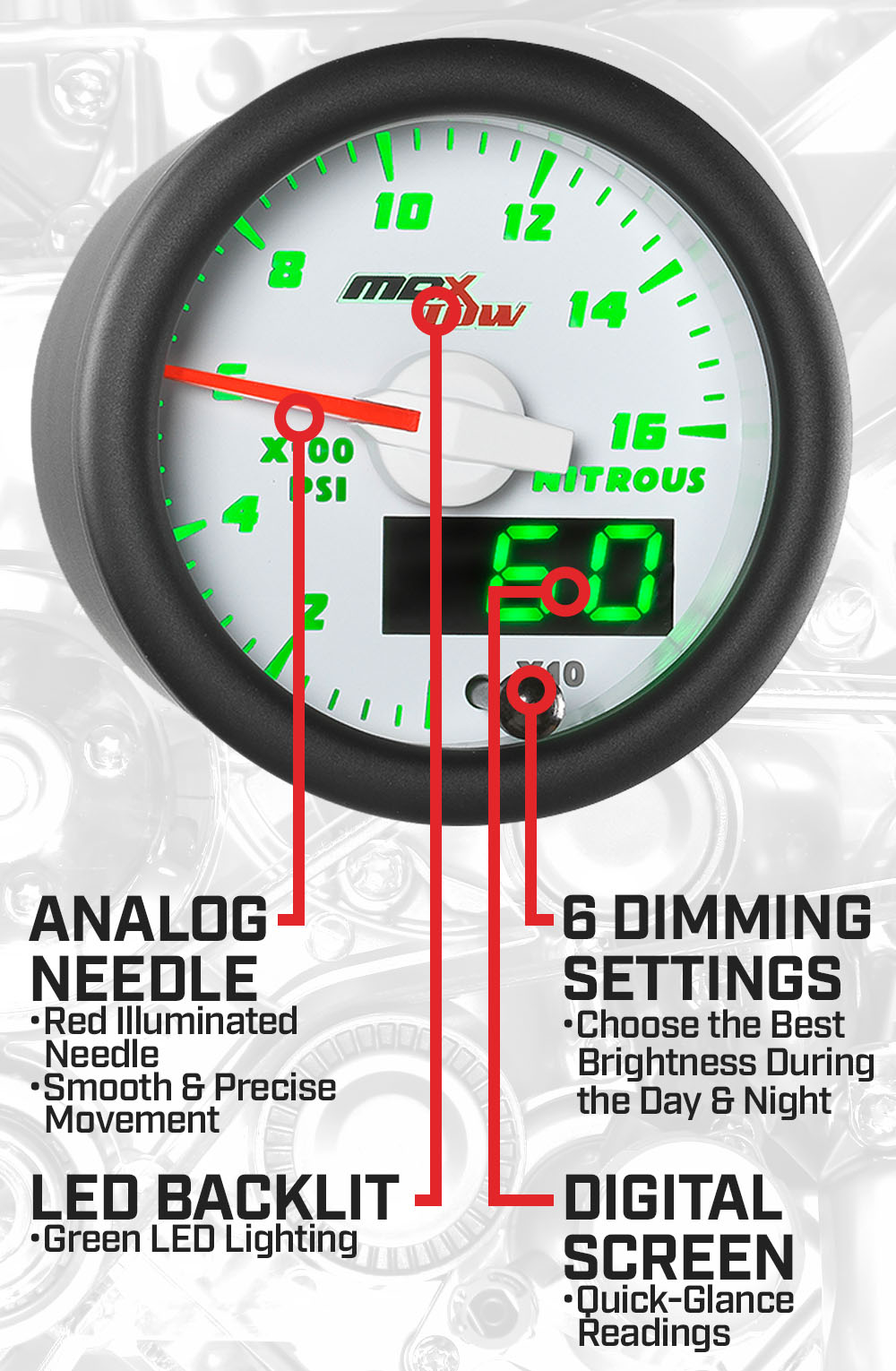

Double Vision™ Series Features

White & Green Double Vision Nitrous Oxide Pressure Gauge Features White & Green Double Vision Nitrous Oxide Pressure Gauge Features

MaxTow White & Green Double Vision™ Gauges feature a white gauge dial and green LED display with an illuminated red needle. Get the classic look of an analog gauge combined with a green digital numerical readout. This 2-1/16” (52mm) gauge is equipped with stepper motor technology which allows for all needle movement to be exceptionally smooth and all gauge readings to be extremely accurate. Brightness Recall retains the previous brightness setting before the truck is powered down.

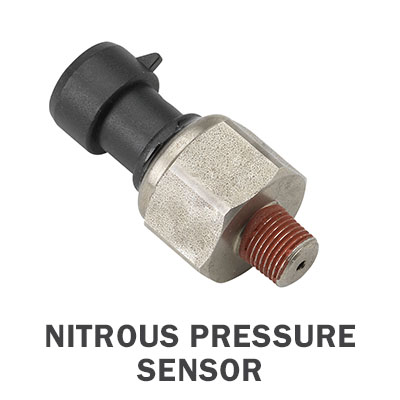

Nitrous Pressure Sensor

MaxTow Electronic Pressure Sensor

The Truck NOS Gauge Includes a 1/8-27 NPT Electronic Nitrous Pressure Sensor that Can Be Installed to a Nitrous Bottle or to a Port Off of the Solenoid.

Wiring Harnesses

MaxTow Plug & Play Wire Harnesses

Included are a 9’ NOS Pressure Sensor Wire and 5’ Power Wire. Easily Connect Both Wiring Harnesses to the Back of the Gauge with Plug and Play Connectors.

Dimming Modes

MaxTow Double Vision Dimming Modes

Each Truck NOS Bottle Gauge Is Equipped with 3 Daytime and 3 Nighttime Dimming Modes. Customize the Brightness Level for Optimal Viewing of Readings Anytime of Day or Night.

What's Included

  • 2-1/16” (52mm) Nitrous Pressure Gauge
  • 1/8-27 NPT Electronic Pressure Sensor
  • 9’ Sensor Harness
  • 5’ Power Harness
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

Nitrous Pressure Gauge For Trucks

With a direct connection between the nitrous bottle and the engine, usually without any clear view, there is no way to accurately check the amount of nitrous being used when you’re driving your pickup. By installing a truck NOS pressure gauge, you can accurately monitor the amount of nitrous being used. Nitrous relies on engine airflow to draw it into the cylinders, and a MaxTow NOS bottle gauge for trucks will deliver readings from 0 to 1,600 PSI with pinpoint precision.

Sensor Thread Note

This truck nitrous gauge includes a 1/8-27 NPT thread size on the sensor which your truck may not be equipped with. As a result, an additional threading adapter could be required for installation of the sensor. If you are unsure if your application requires additional threading adapters, please contact a GlowShift Technical Support Specialist.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our Gauges, Pods and Accessories.

  • Extends the Pressure Sensor Harness from 9’ to 18' in Length
  • Perfect for Vehicles Running a Nitrous System & the Bottle is Located in the Back Seats or Trunk
  • Replaces Shorter Length Harness Included with Gauge
Tech Specs
Gauge Series: White & Green MaxTow Series
Brand: MaxTow
Gauge Type: Nitrous Pressure
Range of Reading: 0 - 1,600 PSI
Face Color: White
Size: 52mm
Lens: Clear
Backlighting Color: Green
Sending Unit: Electronic
Measurement Unit: Standard
Display: Combo
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
