White & Green MaxTow Volt Gauge

SKU:
MT-WDV05
$99.99
$66.99
(You save $33.00 )

UPC:
842559100912
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • 30 Day No Hassle Returns

    30 DayNo Hassle Returns

  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

MaxTow White & Green Double Vision™ Truck Volt Gauges monitor your mid-size or full-size pickup’s electrical system from 8 to 18 volts. Check your truck’s battery to make sure it is providing a proper charge, or you can also detect a faulty alternator. This truck voltmeter includes a Color Coded Wiring Harness that connects this automotive volt gauge directly to the truck battery or another power source. Get ready to hit the road and Tow to the Max™

White & Green Double Vision Volt Gauge White & Green Double Vision Volt Gauge

This truck voltmeter kit comes with parts for installation. In addition to the Color Coded Wiring Harness, you will also receive a Mounting Bracket, Mounting Hardware, Gauge Visor and more. Detailed Installation Instructions walk you through the truck volt gauge install step by step. Add this automotive voltmeter to virtually any truck to monitor the efficiency of the electrical system.

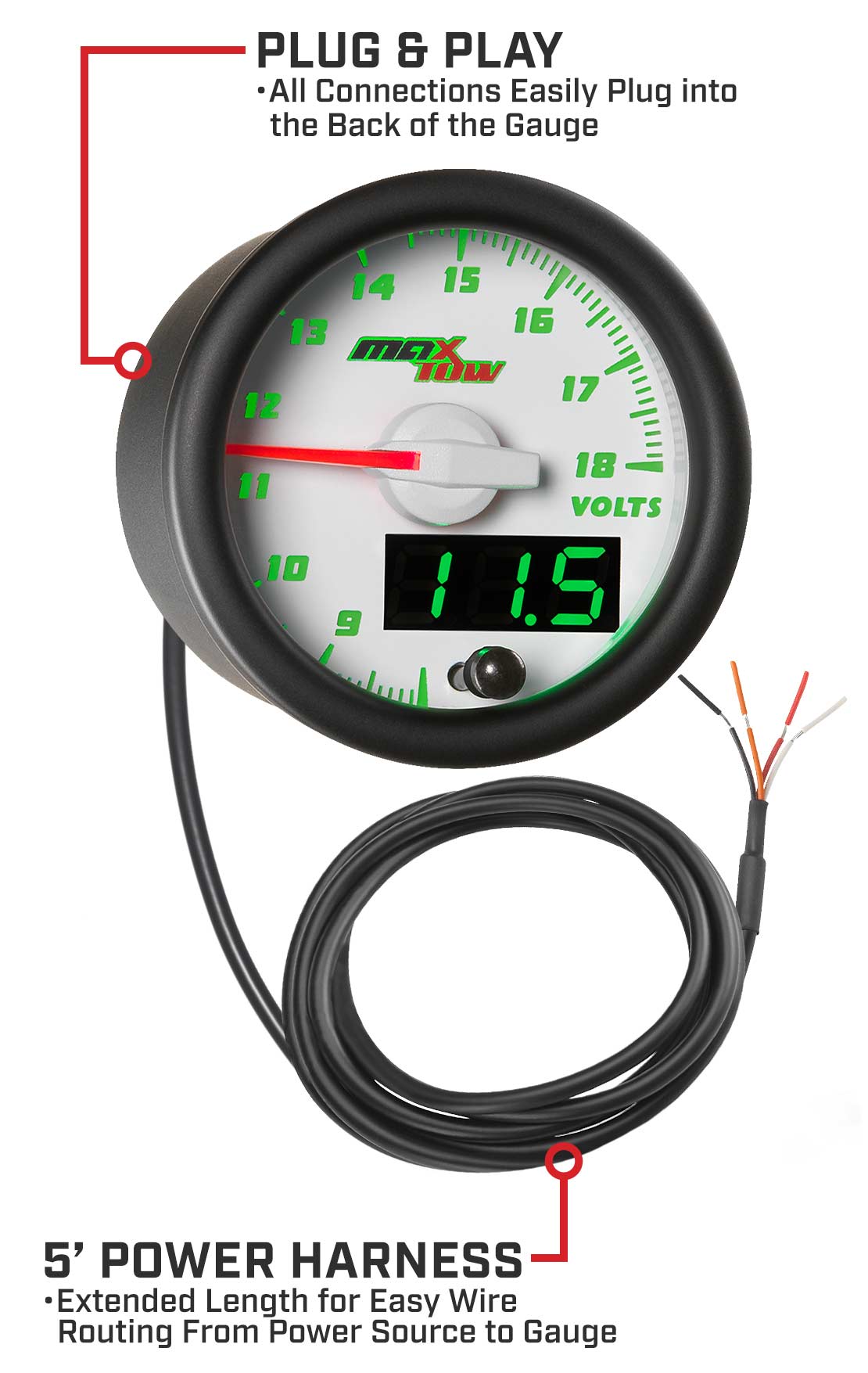

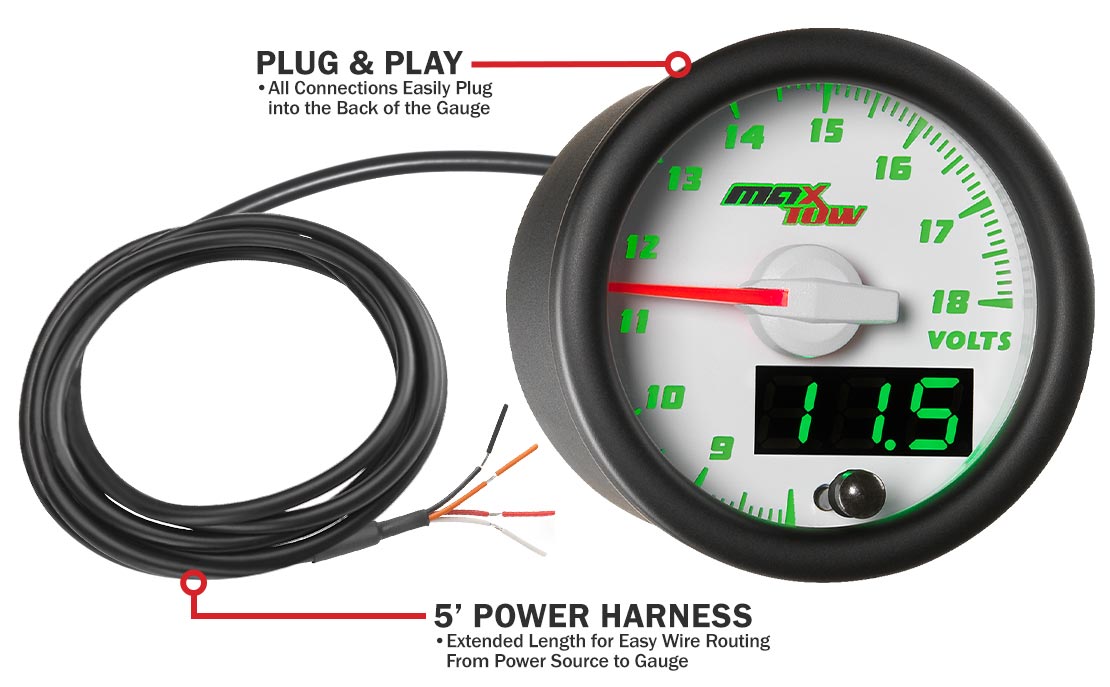

Volt Gauge Wiring

White & Green Double Vision Voltmeter Gauge Parts & Wiring White & Green Double Vision Voltmeter Gauge Parts & Wiring

The Color Coded Wiring Harness included with MaxTow 12 volt battery gauges for trucks includes Power, Dimming and Ground Wires. The harness is 5’, assuring you’ll have more than enough wiring for a seamless install. Easily attach to the back of the truck volt gauge by utilizing Plug and Play connectors.

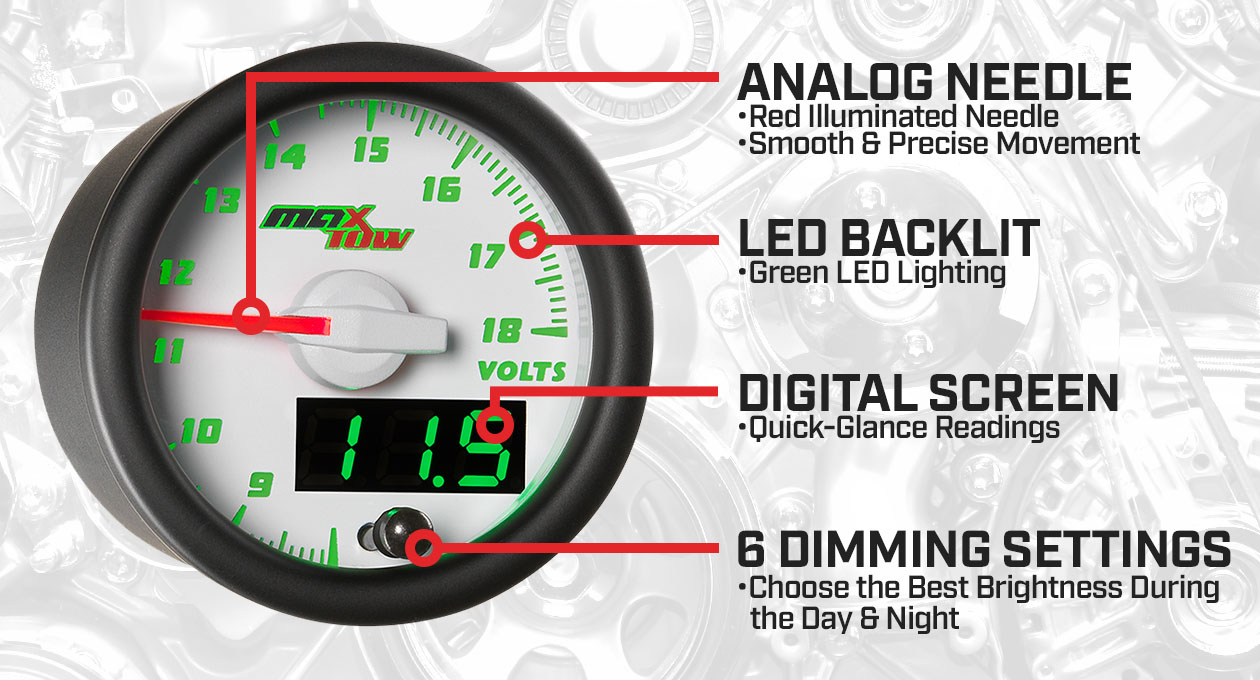

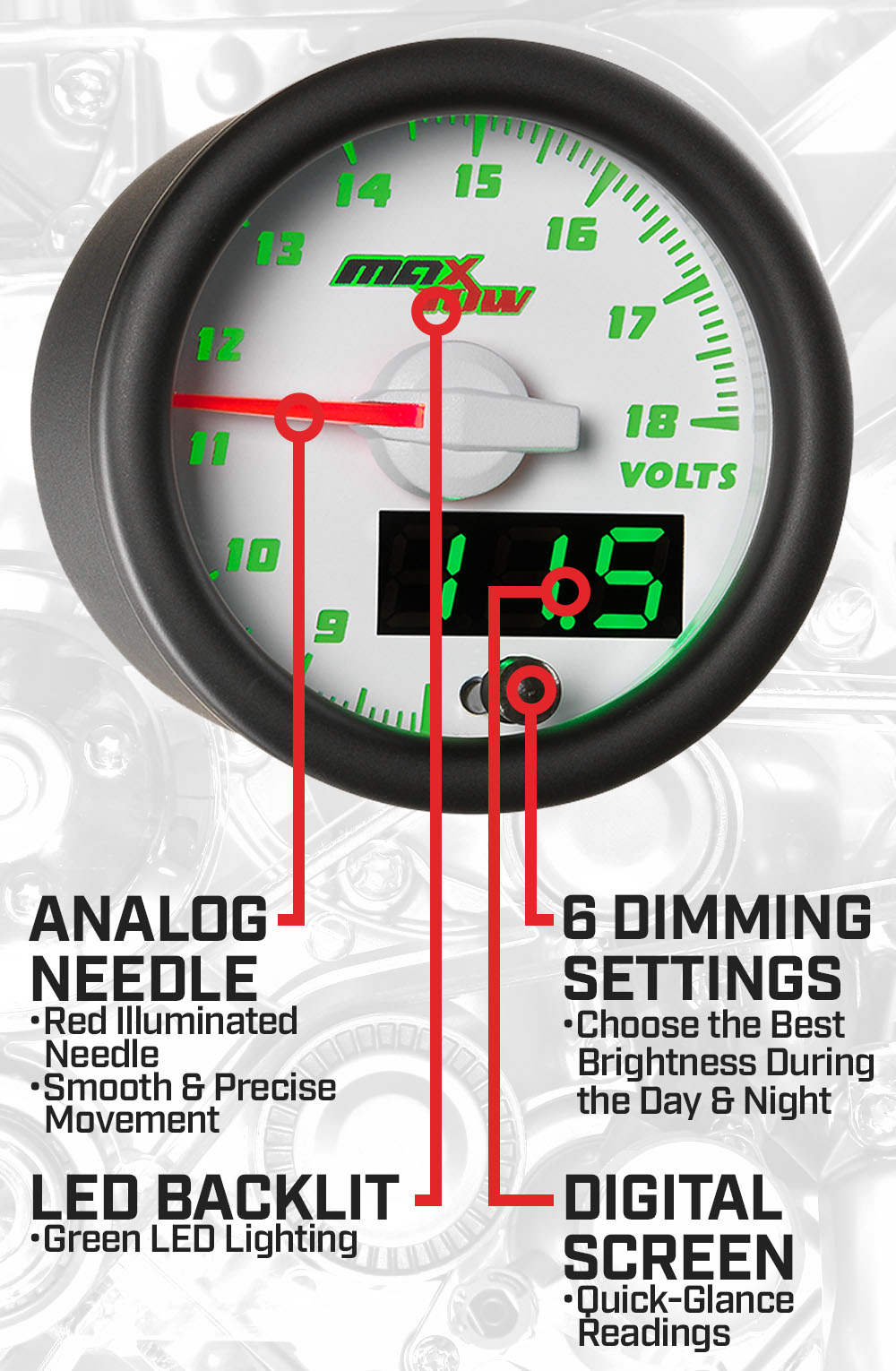

Double Vision™ Series Features

White & Green Double Vision Voltage Gauge Features White & Green Double Vision Voltage Gauge Features

MaxTow White & Green Double Vision™ Gauges feature a white gauge dial and green LED display with an illuminated red needle. Get the classic look of an analog gauge combined with a green digital numerical readout. This 2-1/16” (52mm) gauge is equipped with stepper motor technology which allows for all needle movement to be exceptionally smooth and all gauge readings to be extremely accurate. Brightness Recall retains the previous brightness setting before the truck is powered down.

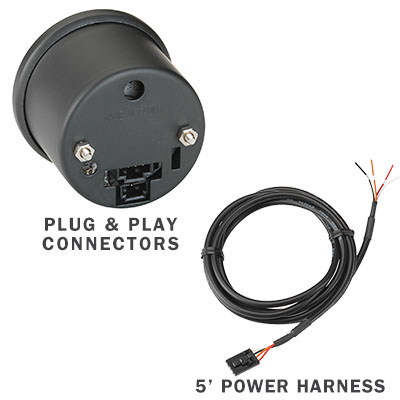

Wiring Harnesses

MaxTow Plug & Play Wire Harnesses

Included for this Truck Voltmeter Gauge is a Color Coded Wiring Harness with Power and Ground Wires. Connect the Harness to the Back of the Gauge with Plug and Play Connectors.

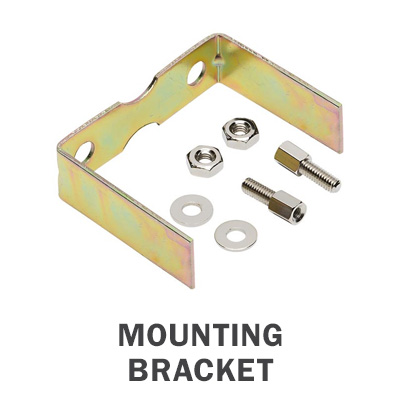

Mounting Bracket

MaxTow Mounting Bracket

A U-Shaped Gauge Mounting Bracket Is Included with a Stud Kit that Attaches the Bracket to the Back of the Volt Gauge. This Bracket Delivers a Secure Fit for Any In-Dash Mount.

Dimming Modes

MaxTow Double Vision Dimming Modes

This 12v Voltmeter Gauge Is Equipped with 3 Daytime and 3 Nighttime Dimming Modes. Customize the Brightness Level for Optimal Viewing of Readings Anytime of Day or Night.

What's Included

  • 2-1/16” (52mm) Volt Gauge
  • 5’ Power Harness
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

Truck Voltmeter

Volt Gauges for trucks are extremely important because they monitor your truck’s charging system, which is what provides an electrical current to your application. Without a charging system, your truck’s battery would run out quickly. The benefit of a truck volt meter is to monitor the functionality of the system from 8 to 18 volts and provide an advance warning in the event there’s an issue. You’ll have a chance to address any problems before your truck’s battery runs out or the alternator fails.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our Gauges, Pods and Accessories.

Tech Specs
Gauge Series: White & Green MaxTow Series
Brand: MaxTow
Gauge Type: Volt
Range of Reading: 8 - 18 V
Face Color: White
Size: 52mm
Lens: Clear
Backlighting Color: Green
Sending Unit: Electronic
Measurement Unit: Standard
Display: Combo
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.
